36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer

    Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers

    Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers
    • Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers
    • Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers
    • Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers
    • Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers
    • Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers
    • Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers
    • Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers
    • Buy cheap 36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer from wholesalers

    36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW55F3
    Certification : CCC,ISO,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer

    3 Axle 36CBM Liquid Ammonia Transport tanker Semi Trailer For Sale

    Description

    1- Chemical Tanker Trailers ,also called Chemical tanker semitrailer, fuel tank semitrailer, Chemical tanker trailer,
    Chemical semitrailer, semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport chemical liquid.
    2- Chemical Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
    3- Chemical Tanker Trailers is optional for air bag suspension,front axle lifting.
    4- Nice shape and rational structure.
    5- High class running system and tank material.
    6- high-intensity kingpin and landing legs.
    7- top gemany brand BPW axle or Chinese brand FUWA axles.
    8- Durable and long term service life.


    Specification

    36m3 chemical tanker semi trailer
    DIMENSIONS & WEIGHT
    Overall Dimensions ( L * W * H )11200 * 2500 * 3700 mm
    Volume36 m3 (36,000 Liters)
    MAX. GVW40000 kg
    Kerb weight10000 kg
    Pay load30000 kg
    Tanker
    Tank MaterialMild steel Q345, inner is polyurethane epoxy, anti-corrosion. And middle is rock wool insulation. Outer is stainless steel cover plate.
    shapeTrapezoid shape
    Thickness of shellMS 5 mm
    Thickness of dishMS 6 mm
    Working temperature- 20 °C to + 70 °C
    CompartmentsThe tank is divided in 1 room. Opting more
    Manhole2 sets of DN500 mm / SS304, with breathe valve
    Unloading valve2 sets of DN80 fixed at bottom of tank
    Pipeline at bottom of tank4" seamless steel tube Q345
    Labeling systemOil type indication
    Anti-static electricityPulling, wire carrier, sheet copper (6 sheet standard layout)
    Running Gear
    AxleFUWA 3-pcs * 13 T axles, double wheel.
    Tire & Rim12-pcs * 11.00R22.5 tyres (opting different brand tire)
    12-pcs * 8.25R22.5 rim (opting steel rim or aluminum alloy rim )
    SuspensionMechanical suspension (opting air suspension)
    King pinJOST C200 2.0" 50 # kingpin (50#) opting, 3.5" ( 90 # )
    Landing legs1 pair . JOST
    Air tank2 set
    Spring brake chamber2-pcs T3030, 2-pc T30
    Air connector1 set stander air connector
    Valve1 pc WABCO ABS
    Electrical systemComplete electrical system with 7 socked . 24 V.
    One set of LED standard lambs; One set of standard cable.
    Painting

    One primer +final painting
    All steel parts are sand blasted before painting. Anti-corrosion.
    Primeer, finished urethane paint.
    All painting are according to customer's requirement.

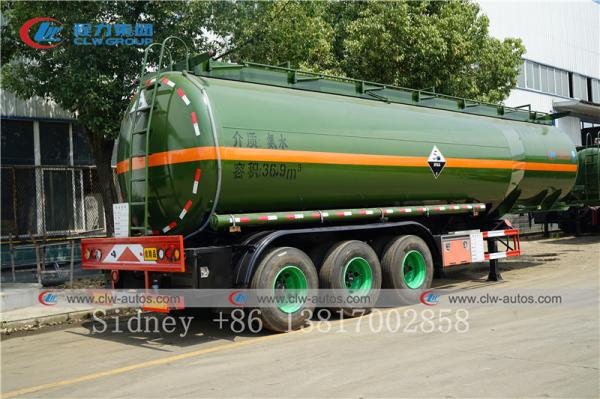

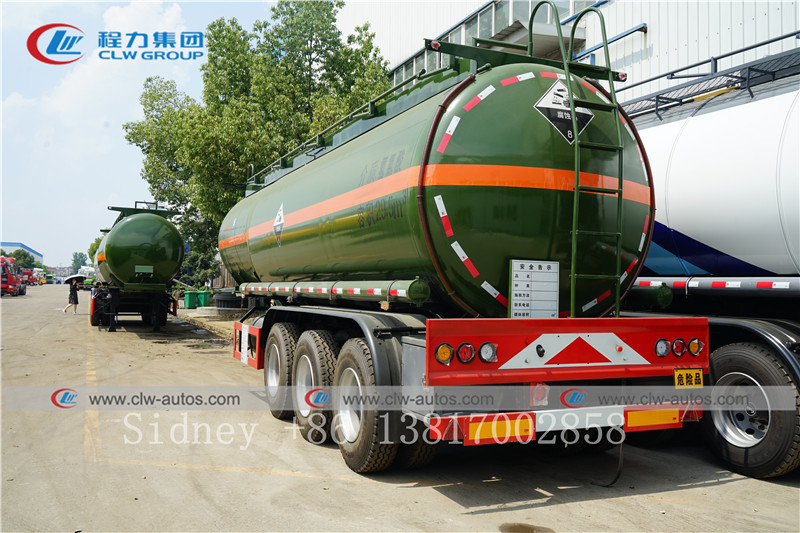

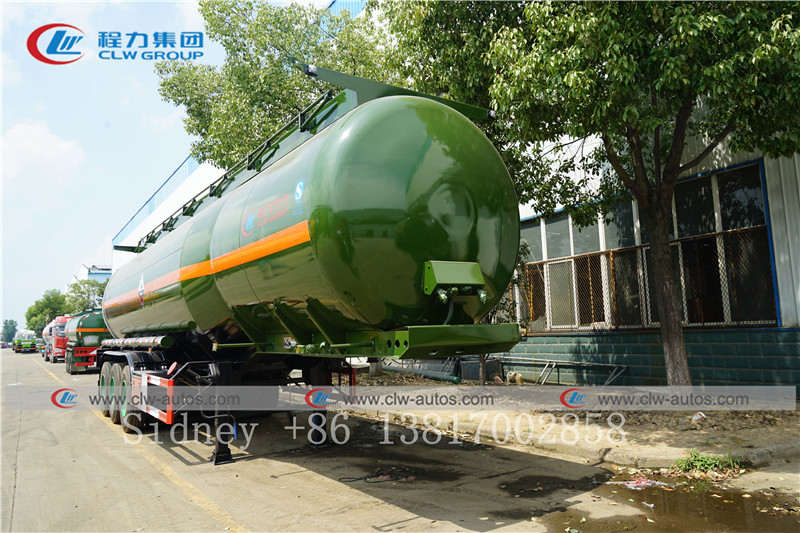

    Reference Photos

    36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer36cbm Q345 Mild Steel Liquid Ammonia Tanker Semi Trailer


    Parts of Chemical tank/trailer


    Factory Overview



    Sales Service


    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of fuel tank trailer I can order from your company?

    A: We can supply various sizes of fuel tank trailer from30-50tons,etc.


    Q2: What's the material of your fuel tanker?

    A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.


    Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?

    A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
