    Sinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow Meter

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5250GYQ
    Certification : ASME,CCC,BV,SGS
    Price : negotiable
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    Sinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow Meter

    Sinotruk HOWO 20m3 10ton LPG Cooking Gas Dispenser Tanker Bobtail Truck with Flow Meter


    Product Description

    1) lpg delivery truck is used to transport or deliver lpg or liquid petroleum gas mobile and supply lpg to lpg stations.We can supply lpg bobtail truck from 2ton to 18ton.

    2) Manufacturing standards of lpg delivery truck: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

    3) Optional accessories of plpg delivery truck: ROCHESTER level gauge,flow meter,sunshelter

    4) optional equipment oflpg delivery truck:flow meter or computer controled filling machine,chinese lpg pump or corken,blackmer pump.


    Specifications

    DescriptionSinotruk Howo 6X4 20m3 LPG Dispenser Truck
    Drive Model6X4
    Vehicle Main DimensionsDimensions(L x W x H)mm10590x2495x3350mm
    Wheel base (mm)4600+1350mm
    Overhang (front/rear) (mm)2022/1830mm
    Front AxleHF7,7000kg
    Rear AxleST16,1600kgX2
    Approach/Departure angle(°)16/12
    Weight in KGSCurb Weight14050kg
    GVW.25000kg
    Payload14000kg(10Ton)
    Max. driving speed(km/h)95km/h
    EngineTypeWD615.87,4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inner cooling.
    Horse Power(HP)290HP

    Engine
    9760ml(Diesel)
    Emission standardEuro II
    GearboxHW19710
    Steering GearPower steering, hydraulic steering with power assistance
    Tire12.00R22.5 Radial tire , 11 pieces including one spare tire
    CabinStandard HW76 cabin,2-3 Passengers allowed, with Air Conditioner
    BrakesService brake: dual circuit compressed air brake
    Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust valve brake
    LPG Tank
    Volum (m³)20
    MaterialQ345R
    Thickness10mm
    Diameter2050mm
    End plate10mm
    Tank length7644mm
    Gas phaseDN50
    Liquid phaseDN50/DN80
    Filling gasPropane(LPG)
    Design Prtessure1.61Mpa
    Accessory
    LPG Pump1 pc
    LPG Volume Flow Meter1pc
    Filling hose with filling nozzle15M
    Level GaugeManhole rotation type, at the rear of tank
    Safety Valve1, DN50
    Tool and Valve Box1
    Thermometer1
    Pressure Gauge1
    Level GaugeManual Rotation Type
    Emergency Valve1
    FenderSteel
    Fire Extinguisher2
    Exhaust shaftAt the front of truck for safety

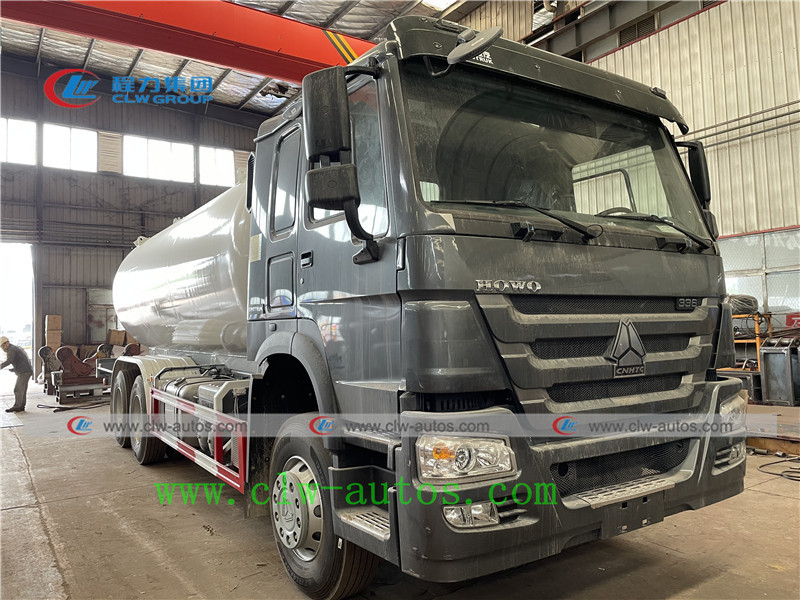

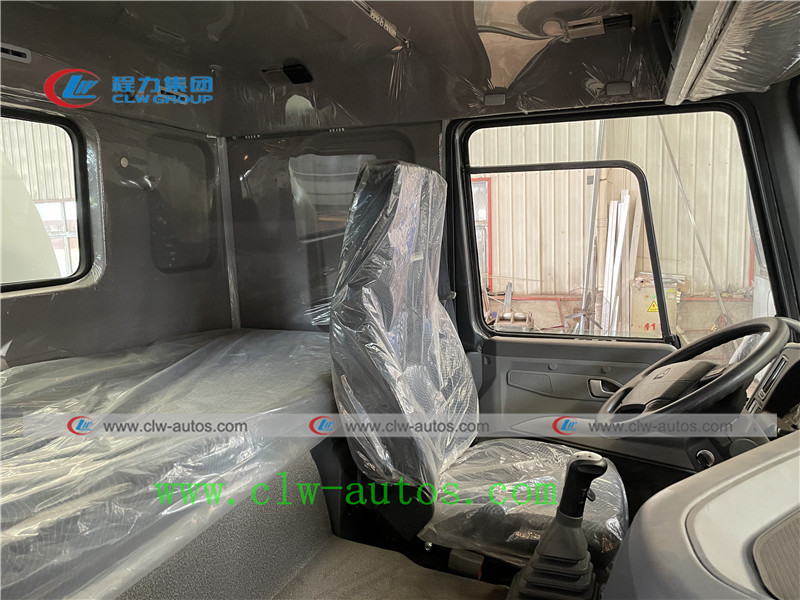

    Reference photos

    Sinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow MeterSinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow MeterSinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow MeterSinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow Meter

    Sinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow MeterSinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow MeterSinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow MeterSinotruk Howo 20m3 10 Ton LPG Gas Tanker Truck With Flow Meter

    Dispenser way

    ChengLi Special Automobile Co., Ltd, belongs to The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.

     More than 10 years' experience as a manufacturer
     CCC, ISO, BV, ASME certification
     Perfect after-sale service
     Trucks covering more than 50 countries and regions
     800 kinds of trucks and trailers
     100 Senior welder and 15 senior engineers
     Good cooperation with 30% regular customers
     Annual production value topped 240,000,000 US dollars per year


    Products Catalog:

    1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
    2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
    3. Truck with crane / Truck mounted crane
    4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
    5. Fire Fighting Truck / Fire Truck / Fire Vehicle
    6. Concrete Mixer Truck
    7. Van truck /Refrigerated truck
    8. Fecal suction truck / Sewage suction truck,
    9. Cement Powder Tank truck/ Bulk cement truck
    10. High-altitude operation truck,
    11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
    12. Tractor
    13. High Pressure Cleaning Truck
    14. Sweeper Truck
    15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of LPG products I can order from your company?


    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?


    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.


    Q4: What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
