FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

    Buy cheap FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck from wholesalers

    Buy cheap FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck from wholesalers
    • Buy cheap FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck from wholesalers
    • Buy cheap FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck from wholesalers
    • Buy cheap FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck from wholesalers
    • Buy cheap FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck from wholesalers
    • Buy cheap FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck from wholesalers

    FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW515GF
    Certification : CCC SGS BV
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units per month
    Delivery Time : 30 days after receiving deposit at account
    • Product Details
    • Company Profile

    FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

    FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

    Description

    1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
    2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
    3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
    4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton

    5. The customers can choose to install the crane.


    Specification

    General Technical Parameters
    Overall Dimension5995x2300x2360(mm)
    Gross Vehicle Weight4495kg
    Curb Weight3795kg
    Chassis Specification
    Chassis ParametersChassis BrandFAW
    CabinSingle, Left/right Hand Driving
    EngineModelWP2.3Q110E50, 4 Cylinders
    Power80KW/110HP
    Emission StandardEURO 5
    Displacement2.290L
    Fuel TypeDiesel
    Gearbox5 Forward & 1 Reverse Gear
    Front and Rear Axle Load3T/6T
    Wheel Base3300(mm)
    Overhang( Front/Rear)1015/2450(mm)
    Angle(Approach/departure)24/9(°)
    Brake SystemAir Brake
    Steering GearPower Assistant
    Tire7.00R16, 6 Pieces with 1 Spare Tire
    Maximum Speed100(km/h)
    Superstructure
    FlatbedDimensions4200x2300 (mm)
    Max. Loading Weight4000(kg)
    Operating Stroke2700 (mm)
    Min. Angle of Slope8(°)
    Platform Height from the Ground1070(mm)
    WinchQuantity1pc
    Winch Rating Pulling Capacity4000 (kg)
    Length of Steel Cable25 (m)
    Hoisting OrganRating Under-Pulling Capacity6000 (kg)
    Rating Under-Hoisting Capacity2000 (kg)
    Fully Extended Max Under-Hoisting Capacity1600 (kg)
    Max Under-Hoist Useful Length1640 (mm)
    Remarks1. Equiped with One Set of Auxiliary Wheels
    2. Bandages 4pcs
    3. Yellow Warning Lamp 1pc
    4. Double Side Hydraulic Operation
    5. Can Tow 2 Cars

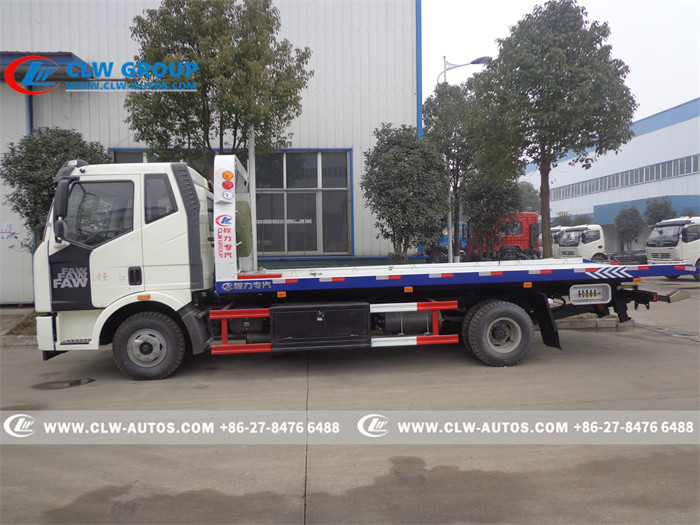

    Reference photos

    FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truckFAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truckFAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck


    Structure

    Item No.Name
    1chassis
    2Warning lamp
    3Single lamp(white-front clearance lamp;red-rear clearance lamp
    4Winch and steel rope
    5Loading plate
    6Side signal lamp
    7Chain hook
    8Wheel lift
    9“L” bracket
    10Operation and hydraulic system
    11Auxiliary wheel
    12Side guard rail
    13Tool box and accessories
    14PTO and oil pump
    15Witch and operation handle of PTO
    Certificates
    Factory overview

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of emergency towing truck I can order from your company?


    A: There are various sizes of emergency towing truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied emergency towing truck to any overseas companies?


    A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
