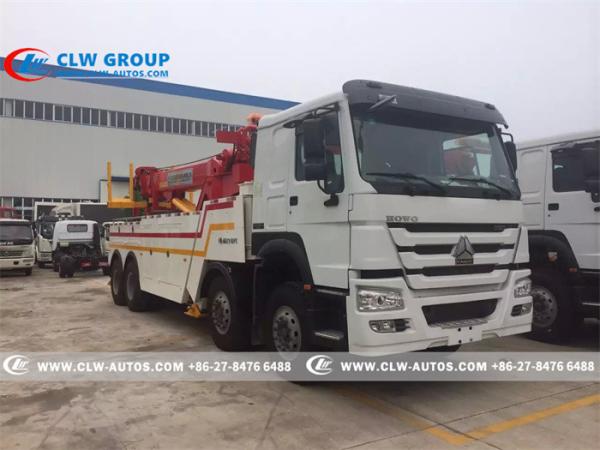

SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck

    Buy cheap SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck from wholesalers

    Buy cheap SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck from wholesalers
    • Buy cheap SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck from wholesalers
    • Buy cheap SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck from wholesalers
    • Buy cheap SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck from wholesalers
    • Buy cheap SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck from wholesalers
    • Buy cheap SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck from wholesalers
    • Buy cheap SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck from wholesalers

    SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW53D5
    Certification : CCC SGS BV
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units per month
    Delivery Time : 40 days after receiving deposit at account
    • Product Details
    • Company Profile

    SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck

    SINOTRUK HOWO 8x4 Heavy duty 360 Degree Rotation Wrecker truck wrecker equipment recovery rescue and towing truck


    Description


    1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
    2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
    3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
    4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
    5. Fifth wheel attachment is optional for towing trailers as follows


    Specification

    Cabin

    Driving type 8x4


    HW76 Cab, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref.
    Vehicle Main DimensionsOverall dimensions (L x W x H)mm11200×2500×3600
    Wheel base (mm)1800+4600+1350
    Wheel track (front/rear) (mm)2022/1830
    Weight in KGSTare Weight(KGS)15000
    Front axles loading capacity(KGS)2x7000
    Rear axles loading capacity(KGS)2x16000
    Max. driving speed(km/h)95
    EngineBrandSINOTRUK
    ModelWD615.47
    Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
    Horse Power(HP)371HP
    Emission standardEuro 2
    GearboxHW19710,10-speed forward and 2 reverse gear
    SteeringZF8098 power steering, hydraulic steering with power assistance
    ClutchReinforced diaphragm clutch, diameter 430mm
    Fuel tank (L)400
    Tire12R22.5 tubeless tyre 13 pcs including one spare tire
    Specialized Device
    Hoisting OrganRated under-hoisting capacity(kg)15000
    Max under-pulling capacity(kg)40000
    Max Under-hoist length (mm)1630
    Under hoisting work angle-10~85°
    Max lifting capacity(kg)30000
    Max lifting high(mm)12000

    Lifting organ


    Lift-hoist telescope length(mm)3000+3000
    WinchPulling capacity 15000kgs, 2pcs
    Length of steel50M
    Crane work angle360ºC horizontal direction, 5~60° vertical direction
    Landing legDistance between front legs(mm)6100
    Distance between rear legs(mm)4200

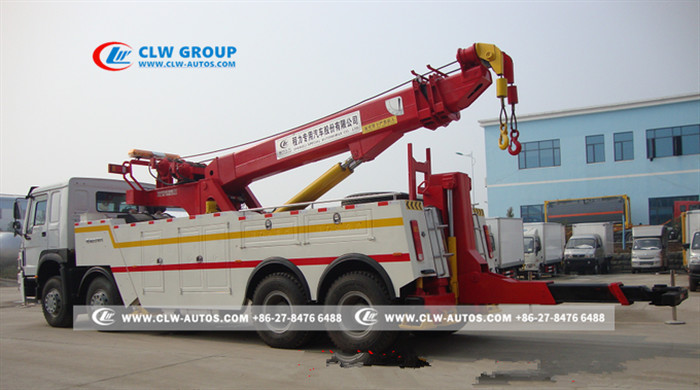

    Reference photos
    SINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow TruckSINOTRUK HOWO 8X4 360 Degree Rotation Heavy Duty Tow Truck
    Wrecker tow truck working show
    Customer visiting
    Factory overview

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment

    FAQ


    Q1: What kinds of wrecker trucks I can order from your company?


    A: There are various sizes of wrecker trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2: Have you supplied sweeper products to any overseas companies?


    A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
