    Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck

    Ask Lasest Price
    Brand Name : CLW / Chengli
    Model Number : CLW51K4
    Certification : CCC,ISO,
    Price : negotiable
    Supply Ability : 500Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck

    Dongfeng Tianjin 4X2 12cbm 14cbm Garbage Compactor Truck Compression Garbage Truck


    Description


    1. Dongfeng Tianjin Chassis: Cummins Engine 190HP, Fast Gearbox 8Forward & 1 Reverse,

    2. Heavy Duty Garbage Bin with different size options: 4000L to 18000L (4CBM to 18CBM)
    2. Hydraulic Control Loading & Unloading System
    3. Leakage Proof Devise to contain Sewage Water Inside
    4. Automatic Key Control & Hydraulic Handle Control
    5. Best Choice for Garbage Transporation Inside City.

    Specifications

    Product NameGarbage Compactor Truck
    Chassis No.EQ1168
    Driving Type4*2
    Gross Weight15800kg
    Related Loading Mass10,000kg
    Curb Weight9500kg
    Air conditionChassis original
    Dimension8710×2500×3300(mm)
    Wheelbase4700(mm)
    Rear Axle Loading Capacity5800kg
    Front Axle Loading Capacity10000kg
    Approach angle23°
    Departure angle14°
    Front Suspension1440mm
    Rear Suspension2770mm
    Tire10.00R20, 6+1 PCS
    Max Speed90(Km/h)
    Engine parameters:
    ModelB190-50
    Horse Power190hp
    Displacement5900cc
    Emission StandardEuro 5
    Type4 stroke,4 cylinders, in-line, water cooling
    Gear Box
    Gear BoxFast brand 8 forward, 1 reverse.
    Superstructure Parameter:
    Tank Volume12CBM 14cbm
    Tank ShapeArc-shape/Square Optional
    Tank Material thicknessBottom:5mm Side:4mm
    Tank MaterialQ345
    Compression Ratio≥2.5
    The effective volume of the bucket≥0.8m³
    Loading cycle time≤40 s
    unload garbage time≤45s
    control methodAutomatic,Manual
    Maximum pressure of hydraulic system20MPa
    Control SystemSiemens PLC
    Engine power controlFully automatic control
    Tumbler mechanism240L Garbage bin(Others Optional)

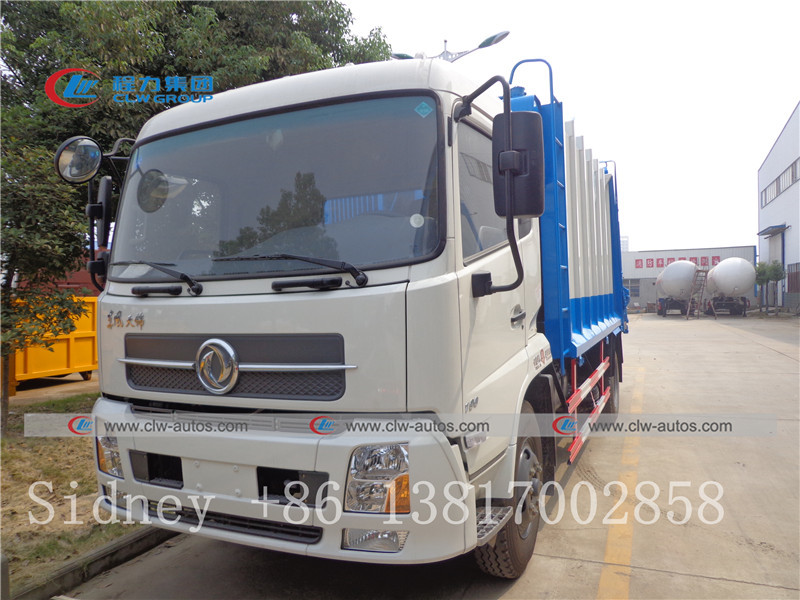

    Product Photos

    Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage TruckDongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage TruckDongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage TruckDongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck

    Dongfeng Tianjin 4X2 12cbm 14cbm Compression Garbage Truck


    Truck diagram


    Main parts


    Factory overview

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of garbage trucks I can order from your company?


    A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied garbage truck to any overseas companies?


    A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
