    4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW0581HJ
    Certification : BV, SGS, CCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank

    4X2 Dongfeng Vacuum Sewage Suction Truck 10cbm Tank Capacity Factory Sale Price


    Description
    1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
    2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
    3. Tanker body: From 2m3 to 25 m3 capacity.
    4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

    Specification

    CabinDriving type 4x2, single row
    Vehicle Main DimensionsOverall dimensions (L x W x H)mm8000×2500×3350
    Wheel base (mm)4500
    Wheel track (front/rear) (mm)1750/1650
    Approach/Departure angle(°)23/20
    Weight in KGSTare Weight7105
    payload8700
    Front axles loading capacity5600
    Rear axles loading capacity10400
    Max. driving speed(km/h)89
    EngineBrandCummins
    Horse Power(HP)190HP
    Emission standardEuro IV
    Gearbox6 forwards & 1 reverse
    SteeringLeft hand drive
    Tire9.00R20, 6 tires with one spare
    Sewage Tank
    Tank volume10000Liters
    Tank material6mm carbon steel Q235
    Tank size5000x1800mm
    Vacuum PumpChinese Vacuum Pump or Italy Vacuum Pump
    Sewage suction pipe8M
    Main PerformanceSuction time ≤ 5min,
    effective suction range ≥ 8m
    Other equipmentOil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve
    PaintingCustomized painting color and logo as required.

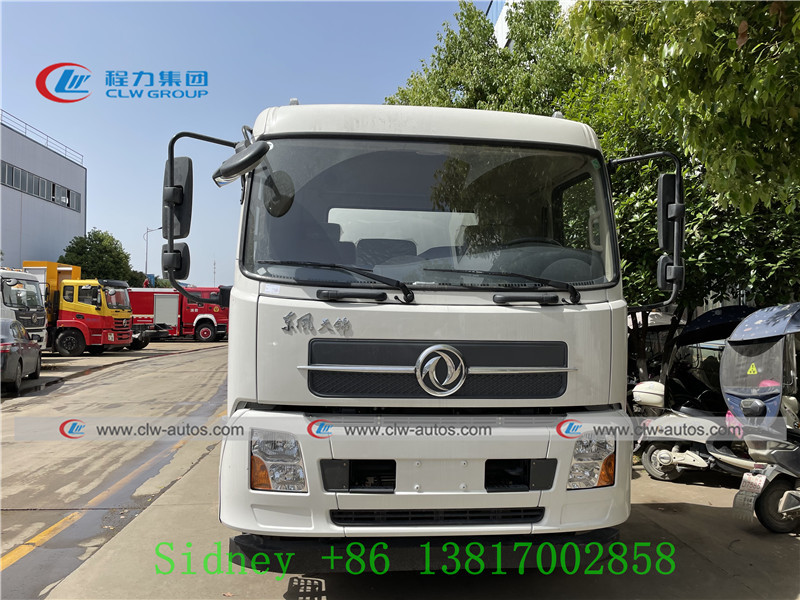

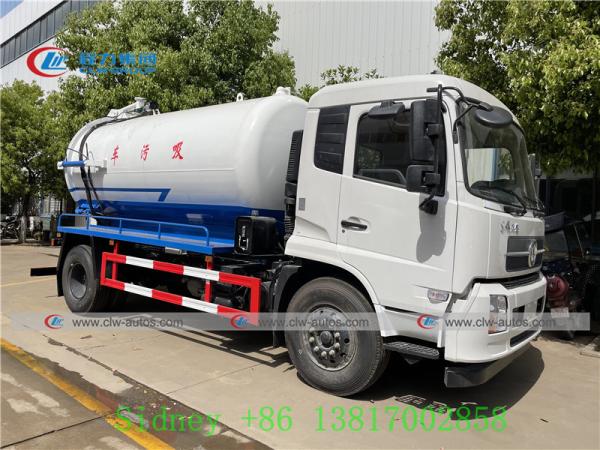

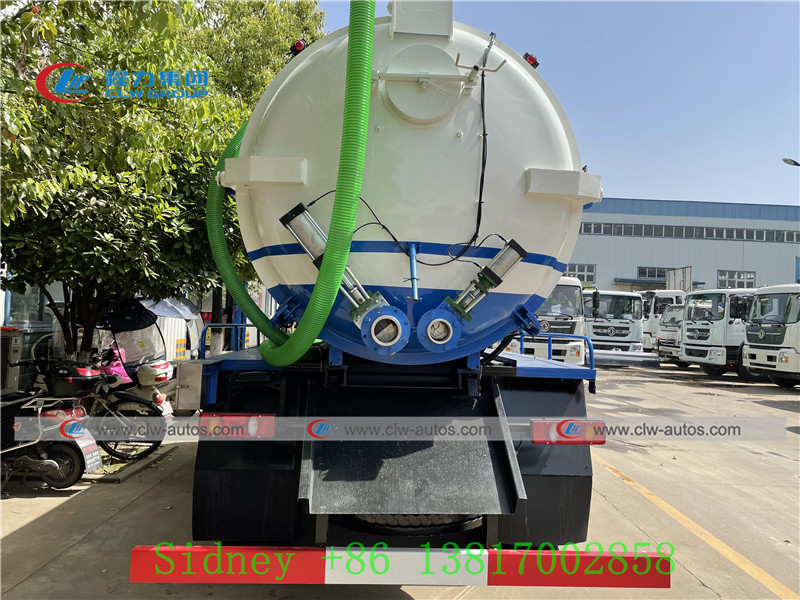

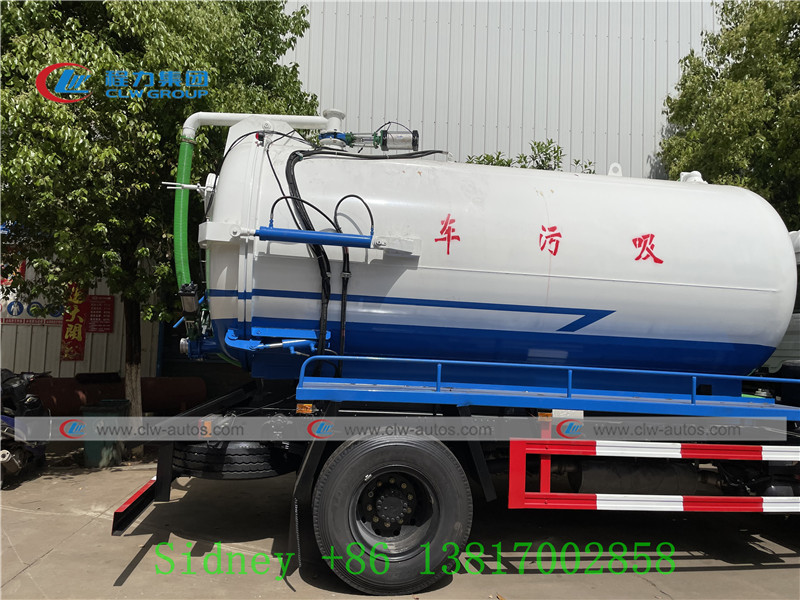

    Reference Photos

    4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank
    4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank4X2 Dongfeng Vacuum Sewage Suction Truck With 10cbm Tank


    Main Structure


    Working Scene



    ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.

     More than 10 years' experience as a manufacturer
     CCC, ISO, BV, ASME certification
     Perfect after-sale service
     Trucks covering more than 50 countries and regions
     800 kinds of trucks and trailers
     100 Senior welder and 15 senior engineers
     Good cooperation with 30% regular customers
     Annual production value topped 240,000,000 US dollars per year


    Other trucks we can supply

    Sales Service
    1) Pre-sales Service: Communicate with customers, analyze their needs.
    2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What size Sewage Suction tank we can get from your company?

    A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


    Q2: Can we adopts International brand sewage pump for sewage suction truck?

    A: Sure, we already cooperated with Italy Jourp and a Germany brand.


    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
