    Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW504SQXWC
    Certification : ISO, CCC
    Price : 12520 usd/unit~25660 usd/unit
    Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 300units/month
    Delivery Time : Within 30 days after received advance payments
    • Product Details
    • Company Profile

    Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck

    Euro V 4CBM 4000L 98HP ISUZU Vacuum Sewage Pump Truck
    Description-- Vacuum pump truck(also called pumping service truck,vacuum septic tank,vacuum tanker truck,sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
    ISUZU vacuum pump truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of water oil,waste water,fecals, mud, crude oil and other liquid materials.

    Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.


    Feature
    - tanker material optional for carbon steel or stainless steel 304;-- Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;-- Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP,Jurop,Moro Keiser imported brand;-- Suction speed less than 10min and and discharge speed less than 8 min;-- horizontal suction distance: within 80 meters;-- Vertical suction depth:within 9 meters;
    --- Quality chassis , perfect performance
    --- Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.
    --- Nice shape , rational structure
    --- Massive, durable ,perfect performance
    --- Prolonged service time

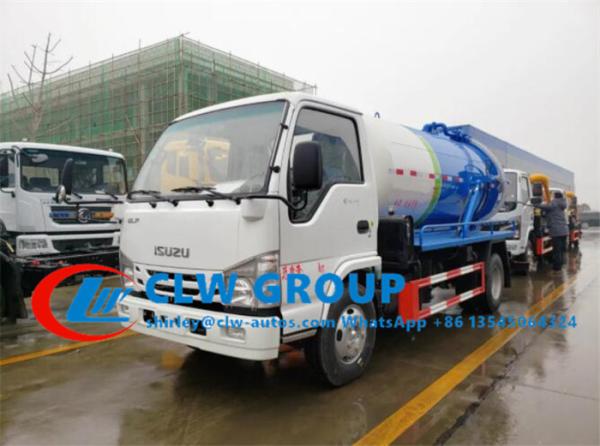

    Reference picture of 4000L isuzu vacuum pump truck as follows

    Wanna get a detailed video of above isuzu 4tons pumping service vacuum truck?Click here

    Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump TruckEuro V Diesel Engine 4000L 98HP ISUZU Sewage Pump TruckEuro V Diesel Engine 4000L 98HP ISUZU Sewage Pump TruckEuro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck

    ISUZU VACUUM PUMP truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,



    Specification
    Chassis parameters
    CabinISUZU 100P cabin/Left hand drive/4x2
    Loading weight(kg)3800kg
    Wheelbase(mm)3360 mm
    Dimensions(mm)5900*1900*2400mm
    Front/Rear Axle loading(kg)2000/4000 kg
    Wheel track (front/rear) (mm)1770/1586 mm
    Front/Rear overhang(mm)1210/1490 mm
    Approach/Departure angle(°)24/12 °
    Max. driving speed(km/h)100 km/h
    ClutchReinforced diaphragm clutch
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity6 pcs with one spare tire
    Specifications7.00R16
    Gear boxManual type,ISUZU MSB transmission/ 5 forward & 1 reverse

    Engine

    BrandISUZU engine
    Model4KH1CN5LS
    Fuel typeDiesel
    Displacement(ml)2999ml
    Power(kw)72 kw
    Horsepower(HP)98 HP
    Max. Torque(N.m)220
    Emission standardEuro V
    Sewage Suction Tanker

    1) Sewage tank and water tank material are carbon steel, tanker body thickness 5mm, tank head thickness 6mm.

    2) Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer.

    3) Equipped with sludge window,self flow outlet and 1pc sludge suction tube length 6m~8m.

    5) Vacuum water pump

    Model : SK-6

    Type : water ring pump

    Vertical suction: 9m

    Flow : 1.5m3/min


    Structure of a vacuum pump truck


    Why do you choose us for ISUZU vacuum truck?


    1. well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
    2. Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;

    3. Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
    4. One Year Guarantee for trucks and spare parts at factory price whenever needed.

    5. Timely shipment

    6. Overseas training and after sales service is available


    Related product

    Right hand drive FAW J5 10,000liters septic cleaning truck for Kenya client

    LHD howo 266hp 10,000L 10tons vacuum pump truck for south America client

    Left hand drive dongfeng cabin 10,000liters septic cleaning truck for Uzbekistan,Kazakhstan,Kyrgyzstan

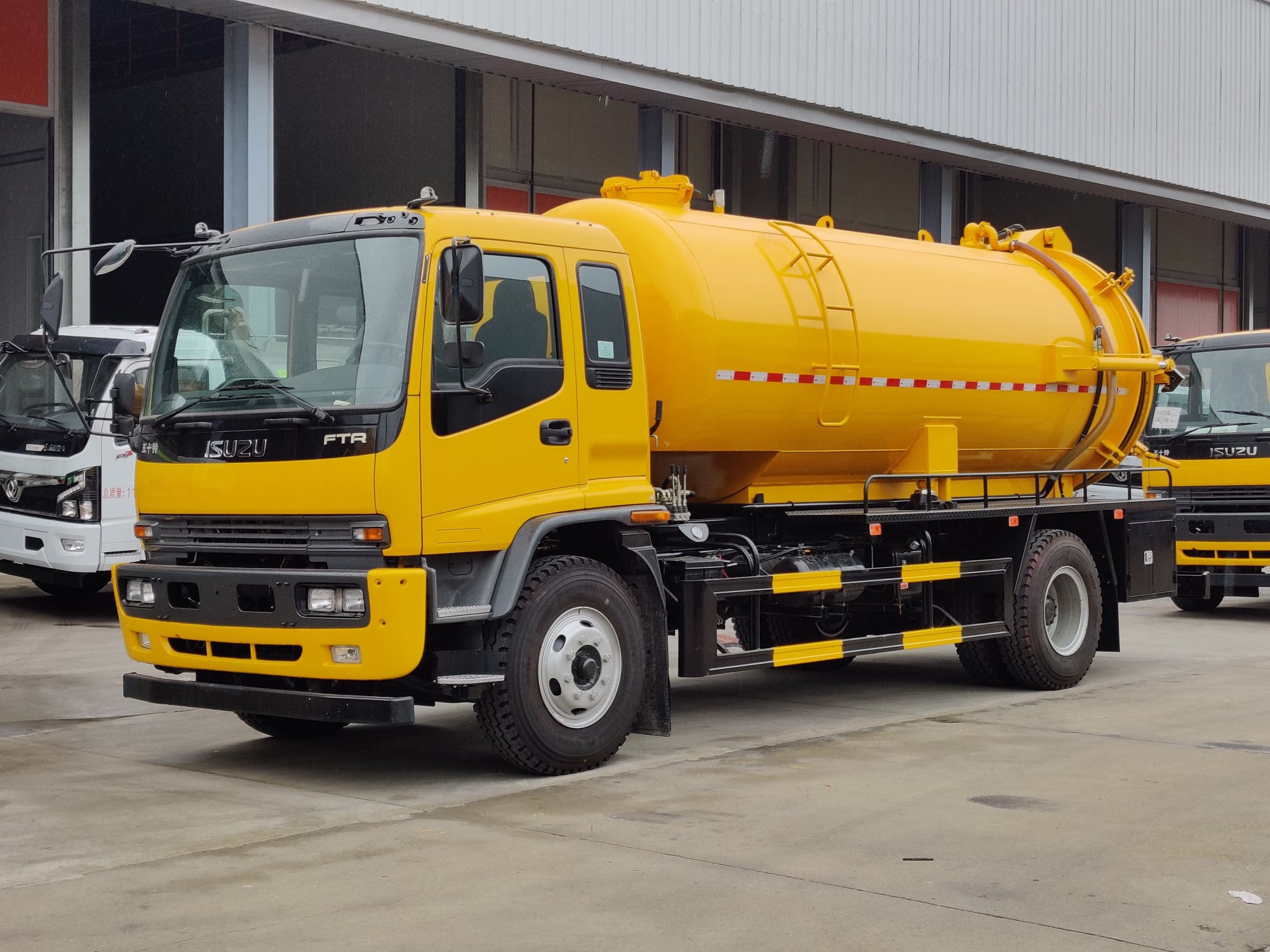

    ISUZU FTR 10,000liters septic vacuum truck to Phillippines
