    Dongfeng Tianjin 4x2 4x4 LHD Vacuum Sewage Suction Tanker Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5089JF3
    Certification : BV, SGS, CCC
    Price : USD21900-29500
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    Dongfeng Tianjin 4x2 4x4 LHD Vacuum Sewage Suction Tanker Truck

    Hot-sale dongfeng tianjin 4x2 4x4 LHD euro 3 engine 10000Liters vacuum slurry sucking tanker truck Vacuum Truck Sewage Suction trucks for sale


    Product Description
    1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
    2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
    3. Tanker body: From 2m3 to 25 m3 capacity.
    4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

    Product Specification


    ItemsDescriptionsSpecifications and Types
    GeneralTruck NameSewage suction truck
    Drive Type4*2
    Curb Weight (kg)8805
    Loading Weight (kg)12000
    Overall Dimensions L*W*H(mm)7970×2490×3380
    Engine BrandCummins B190 33
    Fuel TypeDiesel
    Power140kw/190 HP
    Emission StandardEuro 2/ 3/ 4/ 5
    Displacement(ml)5900
    Engine Type6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
    ChassisChassis BrandDongfeng
    Front/Rear Axle Load(KG)4500/9000
    Tire No.6+1 spare
    Tire Specification10.00-20
    Wheelbase (mm)4700
    Axle No.2
    Gear Box6 speed forward with 1 reverse, manual
    Steering WheelLeft / Right hand drive with power-assisted
    BrakeOil brake
    RadiatorSuitable for tropical climate
    Sucking SystemSewage tank Volume(L)10,000
    Tank shapeRound
    Tank Material5mm thick carbon steel
    PumpVacuum
    Pump IntroductionEquipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
    Suction Depth(m)More than 6 meter
    Tank Tipping angle(°)More than 45
    Rear doorOpen and closed by hydraulic cylinders
    OtherElectric system24V
    EquipmentA tool box

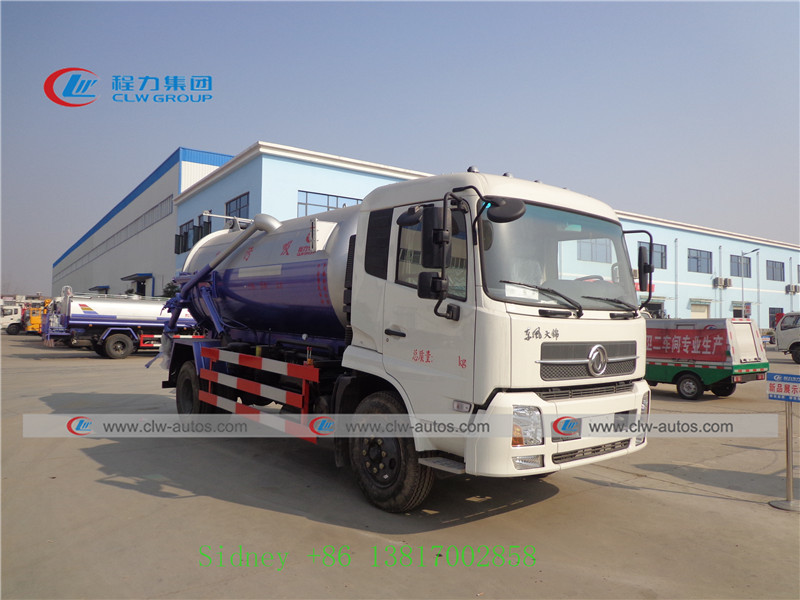

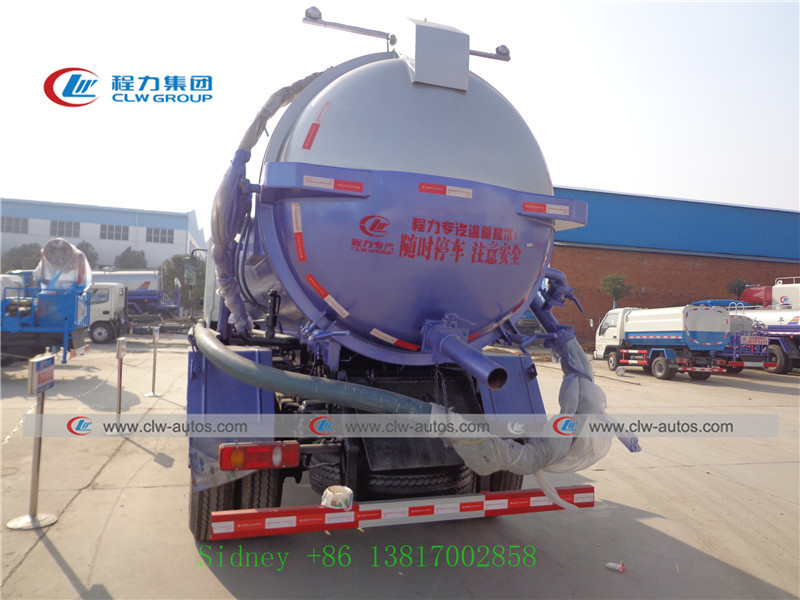

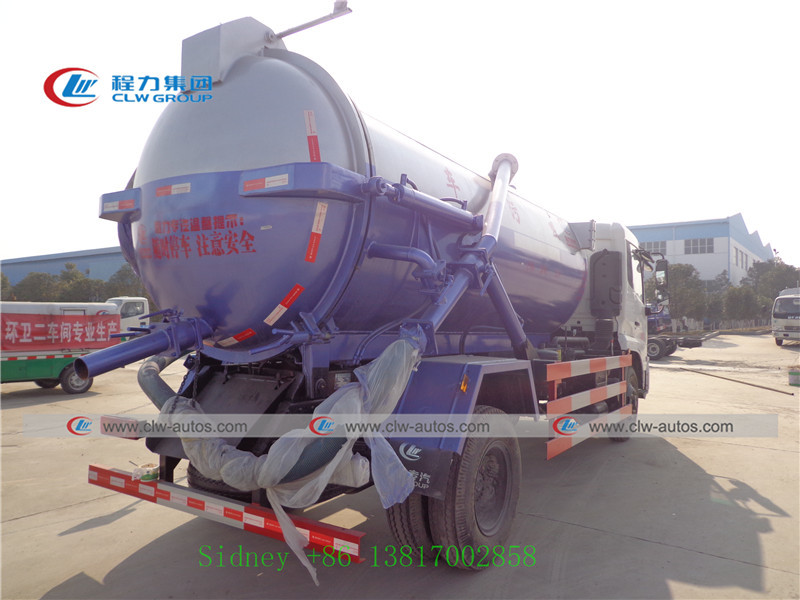

    Reference Photos
    Dongfeng Tianjin 4x2 4x4 LHD Vacuum Sewage Suction Tanker TruckDongfeng Tianjin 4x2 4x4 LHD Vacuum Sewage Suction Tanker TruckDongfeng Tianjin 4x2 4x4 LHD Vacuum Sewage Suction Tanker Truck

    Dongfeng Tianjin 4x2 4x4 LHD Vacuum Sewage Suction Tanker TruckDongfeng Tianjin 4x2 4x4 LHD Vacuum Sewage Suction Tanker TruckDongfeng Tianjin 4x2 4x4 LHD Vacuum Sewage Suction Tanker Truck

    Main Structure


    Working Scene



    Sales Service
    1)Pre-sales Service: Communicate with customers, analyze their needs.
    2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What size Sewage Suction tank we can get from your company?

    A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


    Q2: Can we adopts International brand sewage pump for sewage suction truck?

    A: Sure, we already cooperated with Italy Jourp and a Germany brand.


    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
