    Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW3250S34
    Certification : BV,SGS,CCC
    Price : USD33800-36500
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 days after receiving deposit at account
    • Product Details
    • Company Profile

    Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck

    Tipper Truck Shacman D'long F2000 6x4 290HP Heavy Duty Dump Truck Hot Sale


    A dump truck, known also as a dumper truck or tipper truck, is used for transporting dumps and taking dumps, big ones(such as sand, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK, Australia, South Africa and India the term applies to off-road construction plant only, and the road vehicle is known as a tipper lorry (UK, India), tip-truck, tip-trailer, tipper truck, or tipper (Australia, New Zealand, South Africa).

    Product Description
    1. Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...
    2. Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
    3. High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.
    4. Used in construction site for transportation of mineral,stone,sand and so on.


    Specification

    ConditionNew condition/Left hand drive/6x4
    ChassisBrandSHACMAN
    ModelF2000
    Curb weight(kg)12500 kg
    Axle loading(Front/Rear)(kg)7500/18000 kg
    Wheelbase(mm)3800+1350 mm
    Dimensions(mm)8329*2500*3450 mm
    Wheel track (front/rear) (mm)2035/1850 mm
    Front/Rear overhang(mm)1525/1654 mm
    Approach/Departure angle(°)28/30
    Max. driving speed(km/h)77 km/h
    ClutchReinforced diaphragm clutch
    Fuel tank volume(L)300 L
    BrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust valve brake
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity10pcs with one spare tire
    Specifications11R22.5
    TransmissionFAST 9JS135, 9 Forwards and 1 reverse
    CabIt can accommodate three people, With Air conditioner.
    EngineFuel typeDiesel
    Displacement(ml)9726 ml
    Power(kw)213kw
    Horsepower(HP)290 HP
    Cylinder number6
    Emission standardEuro 2
    UpperSize(mm)5600*2300*1500 mm
    Max. Loading weight(kg)25 tons
    Button Thickness(mm)8.0 mm
    Side plate Thickness(mm)6.0 mm
    MaterialQ235 Carbon steel
    Tipping typeMiddle Tipping
    Oil cylinder brandChina local brand
    Oil cylinder size(mm)220 mm
    RemarksColor can be customized

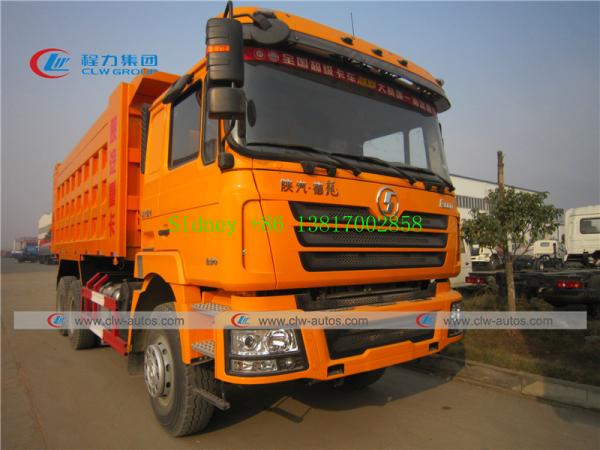

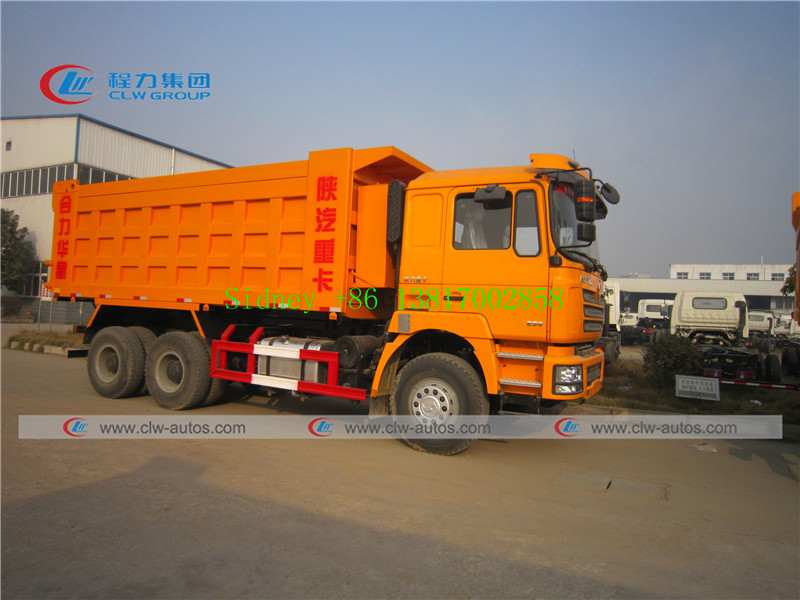

    Products Show
    Shacman D Long F2000 6x4 290HP Heavy Duty Dump TruckShacman D Long F2000 6x4 290HP Heavy Duty Dump TruckShacman D Long F2000 6x4 290HP Heavy Duty Dump TruckShacman D Long F2000 6x4 290HP Heavy Duty Dump Truck
    Working Scenario

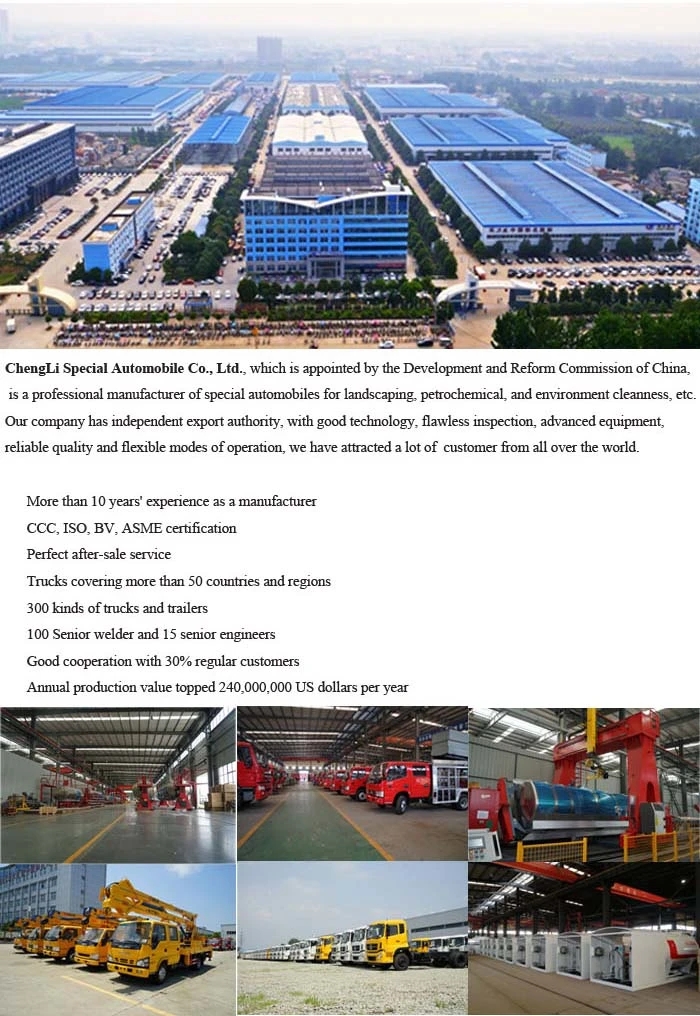

    Factory overview
    Sales Service
    ①Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
    Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.

    FAQ


    Q1: What kinds of dump trucks I can order from your company?


    A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied dump trucks to any overseas companies?


    A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
