    DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW1020
    Certification : CCC, ISO, ASME
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Units/Month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

    DN1600mm 10CBM Carbon Steel Q345R LPG Storage Tank

    High Quality LPG Storage Tanks 10 000 up to 200 000 Liters for Sale


    Product Description


    LPG storage tanks are specialized products for the storage of liquefied petroleum gas, belonging to special equipment. The material includes Q345R & Q370R, and AS-ME standard material SA516M & SA517M. The shape is cylindrical with 2 end plates. Usually, the Shell is always thicker than the end plate according to the volume of the tank. Liquefied petroleum gas is a flammable and explosive medium, so the storage tank of this medium should be strictly required during installation and use. Operators must comply with operating specifications. The production flow includes computer controlled cutting, computer controlled rolling, submerged arc welding, assembly, nondestructive testing, heat treatment, hydraulic test pressure, blasting, and paint. Perfect raw material with certificates.

    Product Specification

    Specification of 10CBM LPG Tank
    Volume of Tank10CBM/10,000Liters
    Filling Weight3990 kg
    Tank Weight2950 kg
    Thickness of Shell (mm)10 mm
    Thickness ofHead (mm)10 mm
    Tank Diameter (mm)1600 mm
    External Dimensions (mm) (length x width x height)5260 x1620 x 2210 mm
    Material of Tank and Main Pressure PartsCarbon Steel Q345R
    Filling MediumLiquefied Petroleum Gas ( Propane)
    Design Pressure17.7Bar
    Corrosion Allowance1 mm
    Medium Density420~590 kg/ cbm
    Color & LogoCustomised for you requests
    Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,
    Pressure gauge, Temperature Gauge.
    List Of Safety Accessories
    ModelItemQtyJunction surface
    J41N-2.5-50Stop Valve DN506RF
    J41N-2.5-25Stop Valve DN252RF
    J41N-2.5-80Stop Valve DN801RF
    J24W-320-DN6J24W Needle Valve M20*1.51
    HG21584-95Magnetic plate level Gauge UZFAL-2.5RF-3040-0.51RF
    A42F-25-100Safety Valve DN801RF
    Y-100TPressure Gauge M20*1.5 1.5degree 0~4Mpa1
    WTQ-280Thermometer M33*2 2.5 degree140ºC~60ºC

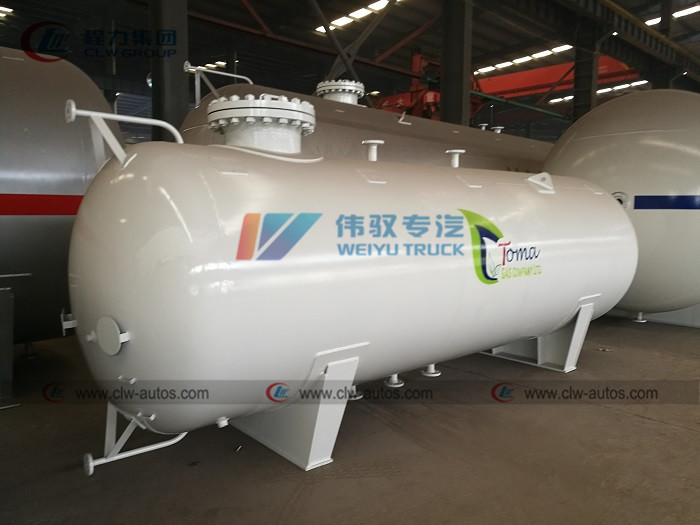

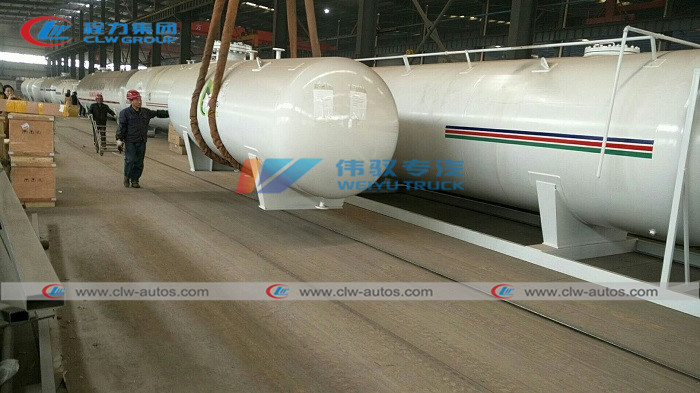

    Reference Photos
    We supply customized drawing for every storage tank
    Nozzle data
    CharactersSizePressure(MPa)ConnectJunction surfacePurpose
    aDN5025HG20592-WNRFDrain outlet
    bDN5025HG20592-WNRFLiquid phase outlet
    c1-2DN5025HG20592-WNRFGaseous phase balanced outlet
    dDN5025HG20592-WNRFLiquid inlet
    eM33*2  Screw-threadThermometer connection
    f1-2DN2525HG20592-WNRFLever gauge connection
    gM20*1.5  Screw-threadPressure Gage
    hDN10025HG20592-WNRFSafety valve connection
    iDN5025HG20592-WNRFEmptying mouth
    jDN45025HG20592-WNFMManhole

    Main Structure Diagram

    We supply package solution for lpg station building as follows


    Production Process


    Our Service

    1) Quick feedback to solve your questions;
    2) Professional engineering and production team;
    3) Related Accessories and spare parts offered,no future worries;
    4) Regular customer after-sale visiting;
    5) Free technical staff training and guidance;
    6) Reasonable price and good quality;
    7) Quick delivery and shipment.


    FAQ

    Q1: What kinds of LPG products I can order from your company?
    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?
    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
