    Dongfeng Tianjin 4x2 8000L Water Tank Fire Rescue Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5160SSKWX
    Certification : CCC,SGS,BV
    Price : 31850~38650 usd/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 units/month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    Dongfeng Tianjin 4x2 8000L Water Tank Fire Rescue Truck

    8000L 8cbm 8ton Dongfeng TianJin 4x2 Water tank Fire rescue truck


    Product Description


    Water sprinkler Fire Truck(Also called water bowser fire truck,water sprinkling fire fighting truck) is a simpflied water tank fire truck combined water sprinkler function and fire fighting function. Equipped with fire pump,the water sprinkler truck can be used as fire rescue in emergency,or it can also used as sanitation city cleaning water sprinkler truck.


    • 1) Cabin: Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
    • 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
    • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
    • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
    • 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.

    Specification of 8cbm Dongfeng TianJin 4x2 Water tank Fire rescue truck


    DescriptionParameters
    Overall Dimension(mm)8250×2480×3310
    Tank Dimension (mm)3060×1450×1340
    GVW15550kg
    Engine ModelB180 40
    TypeVertical six cylinder, water cooled four stroke, supercharged medium cooling, electric controlled high pressure common rail engine
    Engine Power132kW/180HP
    Wheelbase4700mm
    Driving Type4X2
    Front/Rear overhang(mm)1430/2070
    Axle load(Kg)5750/9800
    Max.speed90km/h
    Gear Box5 forward speed range gearbox, one reverse speed.
    Emission Standard5900 ml
    CommunicationFM/AM radio With USB, Optional VHF radio with Microphone
    Tires10.00-20,10.00R20,9.00-20,9.00R20,275/80R22.5 16PR
    Passengers2+4
    Fire pump rated flow60L/s@1.0Mpa;
    water monitor rated flow48-64L/s
    Water monitor rangeWater range≥60m,foam≥55m
    Approach angle20°
    Departure angle13°
    Water tank capacity8CBM
    Fire pump modelCB10/60
    Pressure gauge0-1.6 Mpa, 0-2.5 MPa
    Water monitorPL48

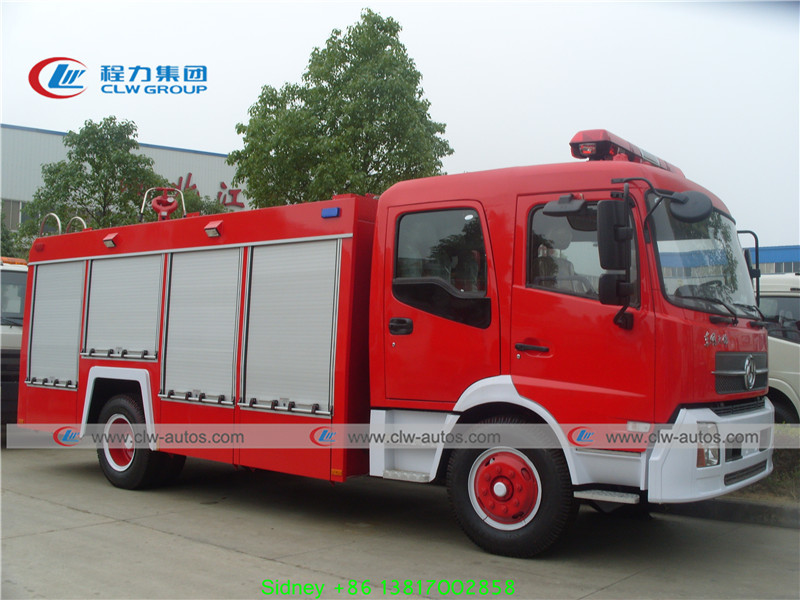

    Reference photos

    Dongfeng Tianjin 4x2 8000L Water Tank Fire Rescue TruckDongfeng Tianjin 4x2 8000L Water Tank Fire Rescue TruckDongfeng Tianjin 4x2 8000L Water Tank Fire Rescue TruckDongfeng Tianjin 4x2 8000L Water Tank Fire Rescue TruckDongfeng Tianjin 4x2 8000L Water Tank Fire Rescue TruckDongfeng Tianjin 4x2 8000L Water Tank Fire Rescue Truck

    Other Water Sprinkler Fire Truck with different truck brands and tanker capacity
    Why do you choose CLW group for dongfeng Water Tank Fire Truck?

    Experience
    More than 16 years experience of production,sales,research and development in the field of special trucks.

    Specialization
    We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

    Good quality
    Solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

    Chassis supply
    Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

    Production supply capacity
    Company scale

    More than 8000 employees with 1000 acres factory, total asset 2 billion.
    We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of fire fighting truck I can order from your company?


    A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied fire fighting trucks to any overseas companies?


    A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
