    5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5049KD3
    Certification : CCC,ISO,BV,SGS
    Price : USD12000-15000
    Payment Terms : L/C, T/T
    Supply Ability : 300 Units
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

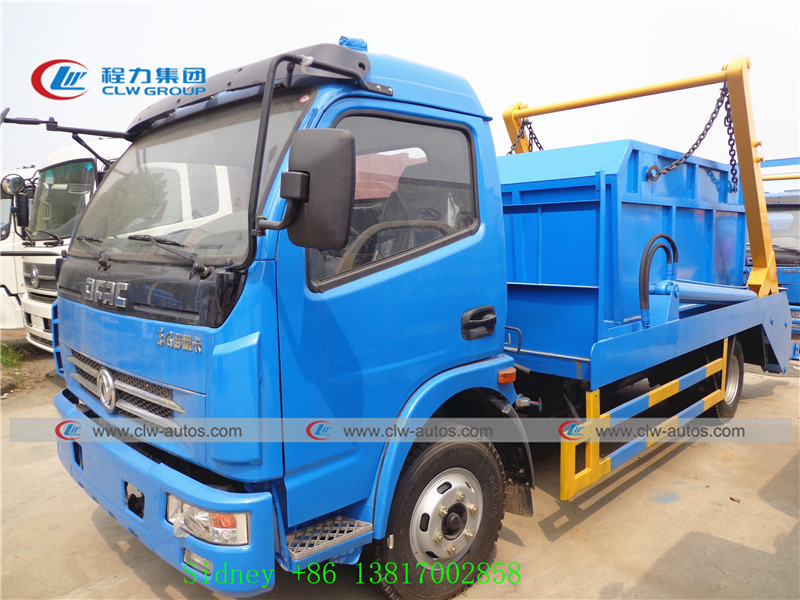

    5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain

    5cbm Self Loading Dongfeng Swing Arm Garbage Trucks with Hanging Chain and Hydraulic Lifting

    Product Description

    Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.


    According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.


    BrandDongfeng Dolika
    Engine Power &
    Transmission
    Engine ModelYC4D140-20
    Engine BrandYuchai Diesel Engine Co., Ltd
    Fuel TypeDiesel
    Displacement / Power4212ml / 103kw, 140HP
    Engine TypeTurbocharged inner cooled, water cooling, four cylinder inline.direct injection
    Rated Speed2500rpm
    Max Torque420N.m
    Max torque(N.m/rpm)1600-1900rpm
    Emission StandEurope III
    Fuel tank capacity (L)200
    Number of speeds,6 Forward, 1 Reverse
    ChassisChassis TypeEQ1080SJ8BDC
    Dimension (LxWxH)6740x 2100 x 2390mm
    Chassis Weight(kg)3195
    Wheelbase (mm)3800
    Drive Type4X2
    No. of Axles2
    Cab seats3 + 1 berth
    Max Speed(km/h)90
    Tire7.50R16 Radial tyre
    Tire No.'s6+1 spare
    Track width F/R (mm)1740/1610
    Chassis load (kg)3310 / 4695
    Front/Rear suspension1130/1810
    Appr/Dep Angle (°)20/14
    Service brake typeCompressed air brake
    Parking brake typeSpring energy, compressed air operating on rear wheels
    Aic ConditionYes
    Weight & Dimension
    (With van box)
    Gross Vehicle Weight(kg)9950
    Curb Weight(kg)4750
    Rated Weight / load(kg)5200
    Wheelbase(mm)3,800
    Front/Rear suspension1130/1770
    Appr/Dep Angle (°)20/13
    Ground Clearance (mm)>=220
    Overall Dimension(mm)6700×2150×2950
    (length ×width×height )
    Upper Structure
    Configuration
    Skip loader dimension(mm)3170x1650x1250, the shape can be adjusted as per special request
    (length ×width×height at side)
    Skip loader Capacity4 ton, 5 cbm
    Material of skip loaderQ235B high quality carbon stell
    Thickness of skip loaderBottom 4mm, side 3mm
    Oil cylinderHydraulic oil cylinder, 2 sets
    Loading mediumHouse hold waste (not including construction waste)
    Production lead time30-45 days
    Remark1. With power assisted steering, A/C, spare tyre, hydrlic telescopic jack, wheel brace etc tools.
    2. If with Euro IV emission standard engine of YC4S150-48 150HP, the price need to upcharge usd2700/set.

    Reference photos

    5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain5cbm Self Loading Dongfeng Swing Arm Garbage Truck With Hanging Chain


    Truck Diagram

    Working Show

    Truck details


    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipmen


    FAQ


    Q1: What kinds of waste collection truck I can order from your company?


    A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2: Have you supplied waste collection truck to any overseas companies?


    A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
