Reference picture

front view of foton 10,000liters liquid disposal collection truck

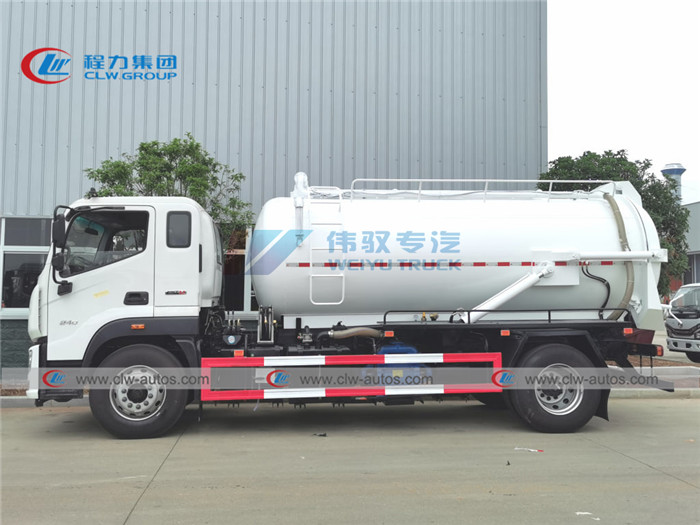

side view of foton 10,000liters liquid disposal collection truck

rear view of foton 10,000liters liquid disposal collection truck

Vacuum sewage pump of foton 10,000liters liquid disposal collection truck

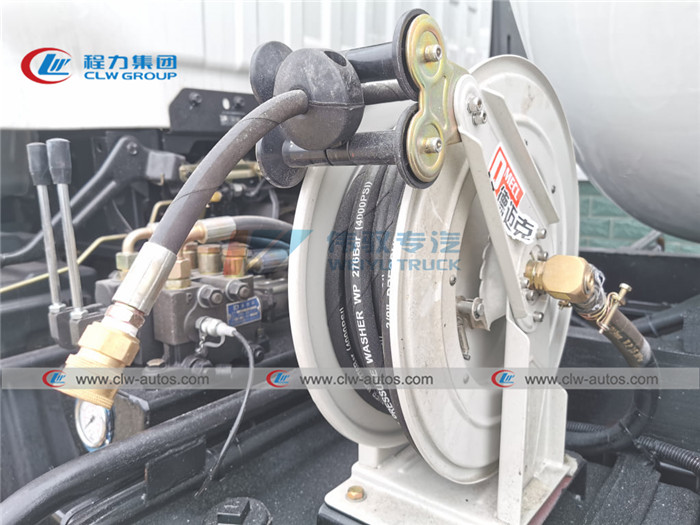

High pressure water cleaning nozzle of foton 10,000liters liquid disposal collection truck

Structure of Vacuum sewage pump of foton 10,000liters liquid disposal collection truck

Specification

Product Technical Specifications
Item	Descriptions		Spesifications and Types
Vehicle	Brand		CLW
	Overall Dimensions L*W*H		7800*2500*3350mm
	Weights	GVW.	16,000kgs
		Kurb Weight	7805kgs
		Rated Payload	8000kgs
Chassis	Chassis Brand		Foton
	Drive Type		4×2
	Steering		LHD or RHD
	Engine	Brand	WeiChai engine
		Power	155Kw /210HP
		Emmission Level	EURO 2 or Euro 3 or EURO 4
	Performance	Max. Speed	80km/h
	Wheel base		4500,5200 mm
	Tyre Specifications		9.00R20 16PR,10.00-20 18PR,10.00R20
	No. of Tyre		6 pcs (1 spare tyre included)
	Cab	Cab Capacity	2 persons allowed
Body/Superstructure	Tank	Capacity	10 m³
		Material	5mm or 6mm high quality carbon steel
	Vacuum pump		China famous vacuum pump
	Vacuum rate		99% thorically
	Suction head		6m
	Rotation speed		500 rpm,low noise,high efficiency
	Basic Equipments	Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose
	Paint	Tanker color is according to client's requirements.
Optional Equipments	Italy vacuum pump
	Stainless steel
	Anti-rust coating inside tank

Why do you choose us for liquid disposal collectiont truck?

1.well experienced truck production company to offer high quality and competitive-price Sewer Vacuum Tanker Truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available
