    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5080BUKWY
    Certification : CCC,SGS,BV
    Price : 18850~25650 usd/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 units/month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

    LHD Howo 116HP 6 Tires 3Tons 3000liters Water Tank Firefighter Truck For Myanmar


    Product Description


    The Water Tank Firefighter Truck is composed of a second-class howo chassis, tank body, water pump, pipeline, instrument circuit system and other components. The Water Tank Firefighter Truck is equipped with aluminum alloy rear ladder (removable), the pump room is at the rear of the vehicle and the tank body is made of steel plate. Welding type, carrying water 2 square, foam 1 square, the water tank is made of high-quality carbon steel plate, the inside of the tank is treated with anti-corrosion, and the foam tank is made of 304 stainless steel. The vehicle is equipped with CB10/20 fire pump and PL20 fire monitor.

    As a professional firefighting truck manufacturer in China, besides normal water fire truck,foam fire truck, we also have rescue fire truck,off road fire truck,full wheel drive fire truck and so on.

    Specifications of HOWO 3TONS Water Tank Firefighter Truck

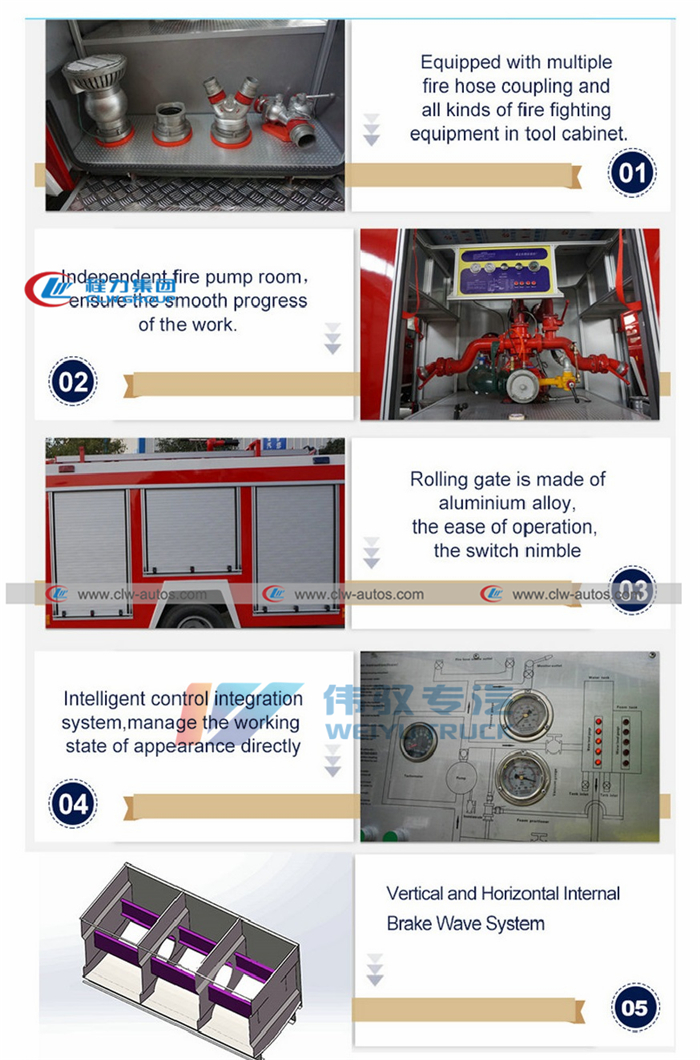

    • 1) Cabin: Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover;
    • 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
    • 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
    • 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
    • 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.

    working and testing of water Firefighter Truck

    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

    front side view of HOWO 3tons water Firefighter Truck

    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

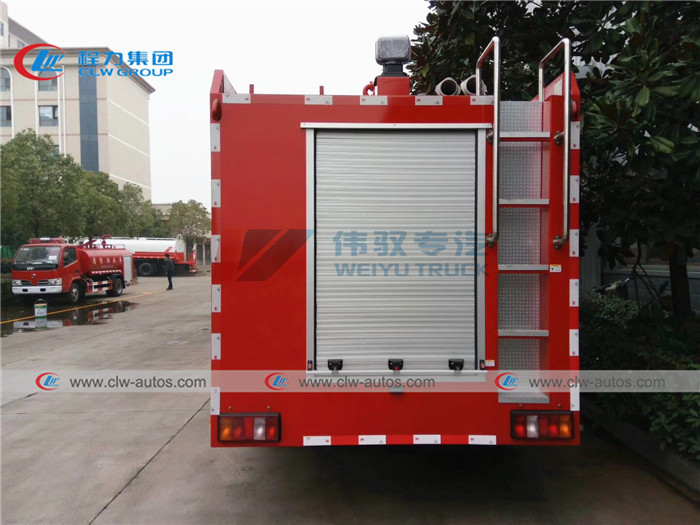

    rear view of HOWO 3tons water Firefighter Truck

    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

    side view of HOWO 3tons water Firefighter Truck

    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

    front view of HOWO 3tons water Firefighter Truck

    Bulk delivery of HOWO 3tons water Firefighter Truck

    ItemsDescriptionsSpecifications and Types
    GeneralTruck NameHowo Firefighter Truck
    Drive Type4*2
    Gross Vehicle Weight(kg)10000
    Curb Weight (kg)5000
    Overall Dimensions (mm)6900×2200×2980
    EngineEngine BrandYun Nei
    Fuel TypeDiesel
    Power116HP
    Emission StandardEuro III
    Displacement(ml)3760
    Engine Type4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
    ChassisChassis BrandHOWO
    CabDouble row cab, flat roof
    Tire No.6+1
    Tire Specification8.25R16 Steel Tire
    Wheelbase (mm)3360
    Axle No.2
    Steering WheelRight Hand Drive or left hand drive with power-assisted
    Gear Box6 speed forward with 1 reverse, manual
    BrakeAir brake
    TankWater Tank Volume(L)2000
    Foam Tank Volume(L)1000
    Fire PumpPump ModelCB10/20
    Flow20L/s (Pressure:1.0MPa)
    Fire MonitorMonitor ModelPL24
    Flow24L/S
    Rotation degreeHorizontal:360°
    RangeFoam: more than 55m, Water: more than 60m
    Equipment

    Equipped with electric siren, rotation lamp, external ladder, fire fighting hose, suction hose, water filter, fire gun, hydrant wrench, suction wrench, water collection, water belt guard bridge, Water belt wrapper, water belt hook, fire axe, pick hammer, spade.

    howo 12tons foam fire fighting truck for Salbas oil and gas Ltd in nigeria from CLW group
    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank
    howo 12tons foam fire fighting truck is optional for adding electric water cannon in front of truck
    Pump room of howo 12tons foam fire fighting truck
    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank
    Manhole of howo 12tons foam fire fighting truck
    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank
    Fire fighting nozzle of howo 12tons foam fire fighting truck
    LHD Howo 116HP 6 Tires Firefighter Truck With 3000L Water Tank

    Why do you choose CLW group for dongfeng 6tons water fire fighting truck?

    Experience
    more than 16 years experience of production,sales,research and development in the field of special trucks.

    Specialization
    We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

    Good quality
    solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

    Chassis supply
    Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

    Production supply capacity
    Company scale

    More than 8000 employees with 1000 acres factory, total asset 2 billion.
    We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of fire fighting truck I can order from your company?


    A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied fire fighting trucks to any overseas companies?


    A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
