    Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5074SX2
    Certification : CCC BV SGS ISO
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road

    Shacman 4x2 5800Liters Bitumen spreader truck Road Construction Machine Asphalt Distributor Truck for sale


    Product Description


    1) Spraying asphalt and bitument:heated asphalt, hot modified asphalt, cutback asphalt, emulsified asphalt

    2) System of 5-10tons bitumen distributor truck

    • manual/automatic control of spraying volume and working width,control of single spraying nozzle
    • control in cabin or rear working platform
    • automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
    • Heating system(10~15℃/h) to improve heating efficiency

    3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

    4) Italy burner for automatic fire and temperature control


    Specifications of asphalt sprayer Truck

    Product NameAsphalt spreader truck
    Volume of Tank5.8CBM/5.8m3
    Overall Dimension5995*2200*2400mm
    Tank SizeOval shape,3200*1950*1500mm(length*long axis*short axis)
    Thickness of Insulation Layer100mm insulation layer in middle of tank body
    Gross Weight7360kg
    Curb Weight4320kg
    Payload4000kg
    Wheelbase3300mm
    Fuel TypeDiesel
    EngineCY4100,70KW/95HP,4 cylinder in line,3771ml,turbocharged intercooled,water cooling
    Transmission5 front gears and 1 rear gear
    BrakeAutomatically air cut-off brake
    Axle & Tire2 axle, 6* 7.00-16 Linglong brand tires
    Max speed90km/h
    Bitumen Spray System Options (Please select which type you need when inquiry)
    TypeCommon TypeStandard TypeSmart Type
    Model of asphalt pumpQGB270(300L/min)QGB680(680L/min)QGB680(680L/min)
    Origin of asphalt pumpChina madeChina madeChina made
    Suitable Tank Volume6CBM6CBM6CBM
    MediumDilute/Emulsify asphaltHot/Dilute/Emulsify asphaltHot/Dilute/Emulsify asphalt
    Hydraulic SystemShanxi YUCIShanxi YUCIShanxi YUCI
    Proportional Valve--Taiwan EFBG-03-160-HF
    Reversing Valve--
    Relief Valve--
    Model of Hydraulic PumpCBQ550-LCBQ550-LCBQ550-L
    Model of Hydraulic Motor05-110-BD3105-110-BD3105-110-BD31
    RadiatorRISHENG brandRISHENG brandRISHENG brand
    Control SystemManaulRear work platformGerman Siemens CLW-39-01
    Control Type1-control-11-control-1Computer smart control, 1-control-1
    Operation Person Number2 persons2 persons1 persons
    Asphalt Nozzle Number1130~3930~39
    Heating TypeHeat conducting oil automatically heating
    Conducting OilHebei,China
    BurnerItaly import G10
    Power of Engine6KW
    Spraying Capacity0.8L/min0.2~3L/min0.2~3L/min
    Spraying Error/±±2%
    Spraying Width4.5m4.54.5~6m

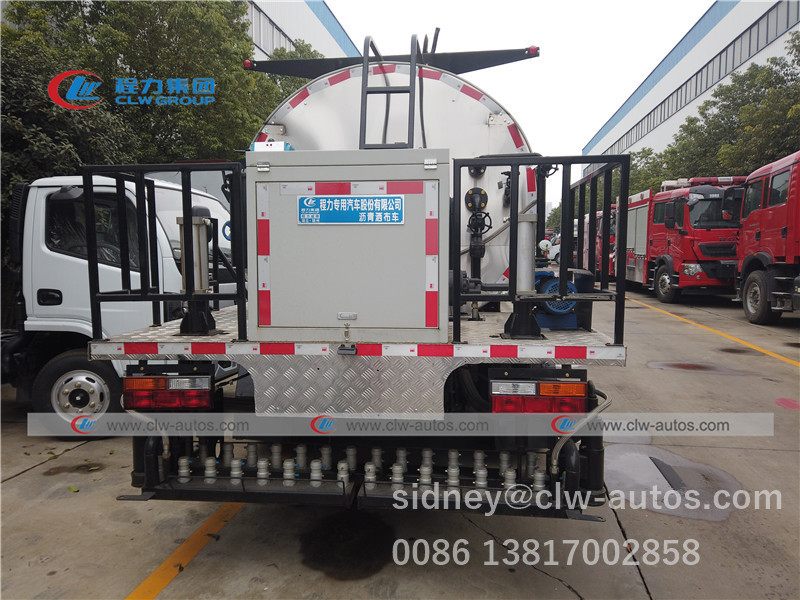

    Reference Pictures of asphalt sprayer Truck

    Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving RoadShacman 4x2 5800L 6T Bitumen Spreader Truck For Paving RoadShacman 4x2 5800L 6T Bitumen Spreader Truck For Paving RoadShacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road

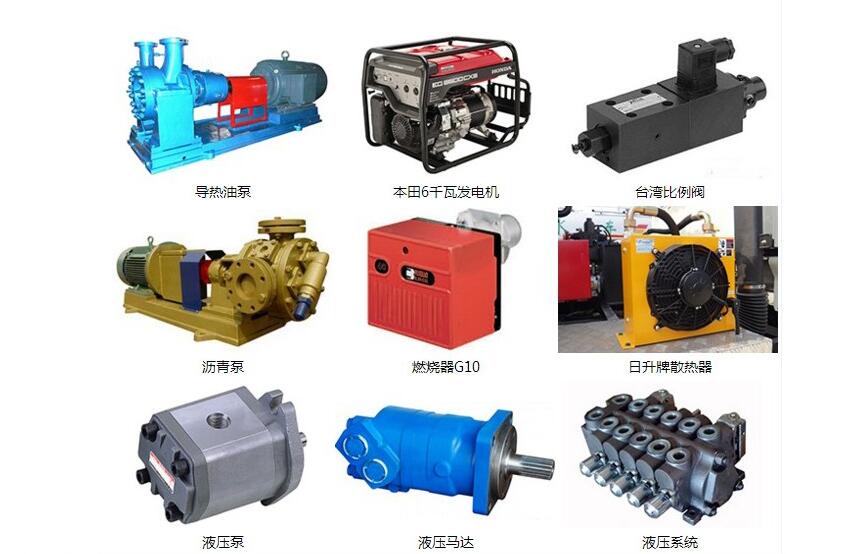

    Key parts of asphalt sprayer Truck



    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment



    FAQ


    Q1: What kinds of asphalt sprayer Truck I can order from your company?

    A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.


    Q2: What is your production standard of asphalt sprayer Truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

    A: Our asphalt sprayer Truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.


    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
