    27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5400B42
    Certification : CCC BV SGS ISO
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head

    3 Axle 27.5cbm Carbon Steel Tanker 3 axle Semi Trailer with truck head for Bulk Cement/Dry Powder Material


    Product Description


    Cement Trailer V Type is used for carrying cement, lime, and any other powder materials in bulk. We offer this trailer with electirical or diesel compressor and we have flexibilatiy on technical specification of Cement


    • Steel or Aluminum Body
    • diesel compressor
    • BPW,FUWA,HJ Axles
    • Electirical compressor
    • JOST brand parking leg and king pin
    • Air and Mechanical Suspension
    • ABS and EBS brake system
    • Double-coin,tri-angle,Aeolus brand tires

    Specifications


    Semi-Trailer Dimensions
    Trailer Tare weight8500kg
    Trailer Size

    11000*2500*4000mm

    Volume27.5cbm
    Loading CapacityThe load depends on the density
    Tank bodyQ235 4mm steel sheet
    End plateQ235 6mm ball shape
    Axle13ton *3 axles
    SuspensionMechanical suspension American type
    Leaf springLeaf spring 10pcs*90mm*13mm
    Manhole cover500mm manhole cover 2 sets
    Tire12R22.5 *12units
    Wheel rim9.0-22.5 *12pcs
    Discharge valve4" disc valve
    Discharge pipe4" seamless steel tube
    Outlet pipe4" rubber hose. 6meters
    KingpinJOST brand 2"/3.5" bolt-in king pin
    Landing gearJOST brand two-speed, manual operating ,heavy duty landing gear
    EngineWEICHAI brand model: 4102
    Air compressor37 KW, 0.2Mpa. 1000r/Min
    Compartment1UNITS
    Braking systemWABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
    ABS4S2M or Optional
    Air-charging system2" main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge
    Quadratic blow1" diameter check valve
    PaintingComplete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
    AccessoriesOne standard tool box ,one spare tire carrier, one crank ,one shaft head wrench,
    Date of delivery25 working days

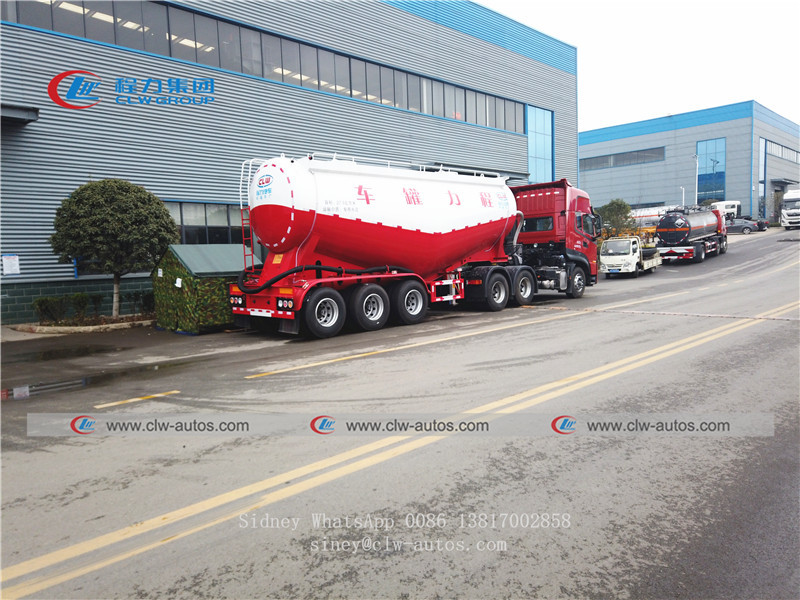

    Reference Pictures of cement tanker trailer


    27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head


    After-sales service
    Semi-trailer adopts computer 3D aided design,rational structure,Use the high quality high strength steel production. welded by automatic submerged-arc processes. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.


    ITEMWARRANTY TERM
    Main Frameframe1 year
    king pin1 year
    suspension6 months
    balance arm3 months
    U-shaped bolt3 months
    pull rod6 months
    leaf spring3 months
    landing gear3 months
    spare tire carrier3 months
    Running Gearaxle1 year
    axle bearing3 months
    wheel rim3 months
    tire3 months
    Braking Devicebrake drum3 months
    Relay valve3 months
    brake champer diaphragm3 months
    spring brake chamber3 months
    brake shoe3 months
    air tank3 months

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of cement tanker trailer I can order from your company?

    A: We can supply various sizes of cement tanker trailer, there are 2 axles and 3 axles semil trailer for optional.


    Q2: What is your production standard of cement tanker trailer? Whether your cement tanker trailer export to USA, Canada and Europen countries?

    A: Our road construction truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.


    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
