8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck

    Buy cheap 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck from wholesalers

    Buy cheap 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck from wholesalers
    • Buy cheap 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck from wholesalers
    • Buy cheap 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck from wholesalers
    • Buy cheap 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck from wholesalers
    • Buy cheap 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck from wholesalers
    • Buy cheap 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck from wholesalers
    • Buy cheap 8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck from wholesalers

    8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5100GWLK
    Certification : ISO, CCC
    Price : USD63500-72500
    Payment Terms : L/C, T/T
    Supply Ability : 500units/month
    Delivery Time : 30-35days after received advance payments
    • Product Details
    • Company Profile

    8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck

    8X4 Dongfeng Kinland 25m3 Heavy Duty High Pressure 25000litres Sewage Suction & Jetting Truck with High Pressure Hose for sale

    Function:

    (1)Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

    (2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

    (3)vacuum tank capacity ranges from 3,000 Liters to 20,000 liters


    Features:
    a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
    b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
    c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
    d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
    e.Nice shape ,rational structure,durable and long service life

    Technical data
    The Parameters of 25CBM Sewage Suction Truck
    Overview
    NameSewage Suction Truck
    Dimension(LxWxH)10000X2530X3600(mm)
    Total Mass31000 Kg
    Rated Payload15670 Kg
    Curb Weight15200 Kg
    Passenger3
    Approach/Departure Angle32/14
    The Parameters of Chassis
    ManufactureDongfeng
    Driving Type8*4 left/right hand drive
    Gearbox10 forward and 1 reverse, manual
    Front/Rear Suspension1515/1585(mm)
    Wheel Base1850+3700+1350(mm)
    Alxe Load6500/6500/18000kgs
    Tyre12.00R20
    The Number of Tyre12+1(spare tyre)
    Leaf Spring Number9/13,10/13
    The Paremeters of Engine
    Rated Powercummmins engine, 231kw/314hp
    Fuel TypeDiesel oil
    Displacement/Capacity6700ml
    Emission StandardEuro3
    CylinderStraight/6/intercooling
    Max. torque700N.m
    Velocity2500rpm
    Max speed89km/h

    Superstructure
    Sewage TankerTank material
    ​​​​​​8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck
    High quality steel plate
    Tank thickness6mm
    Capacity
    25 cbm/ 25,000 Liters
    ShapeCylindrical
    Vacuum Suction Pump
    BrandChinese famous brand
    Time for full suction≤12min
    Sewage Pipe1 pc
    Dumping SystemSelf unloading, Hydraulic Controlled Rear Door and Middle lifting
    Other PartsWater-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device, Glass window, PTO

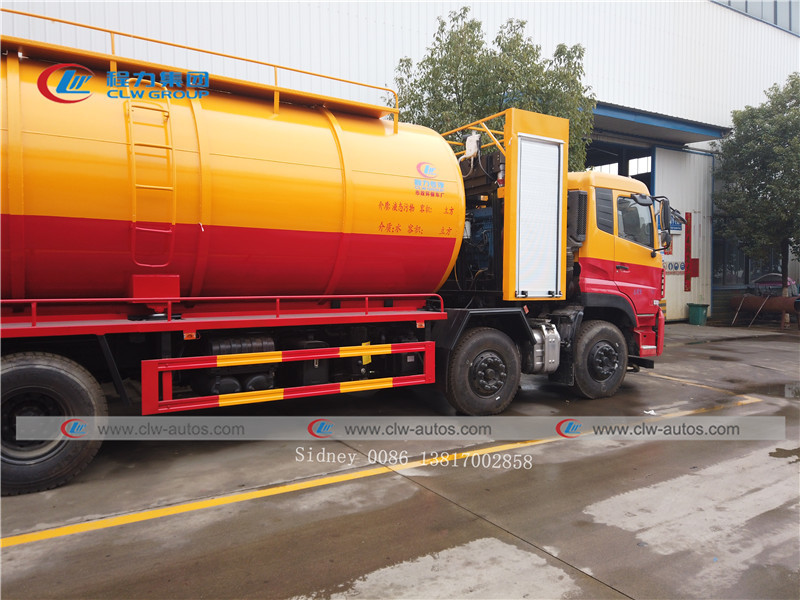

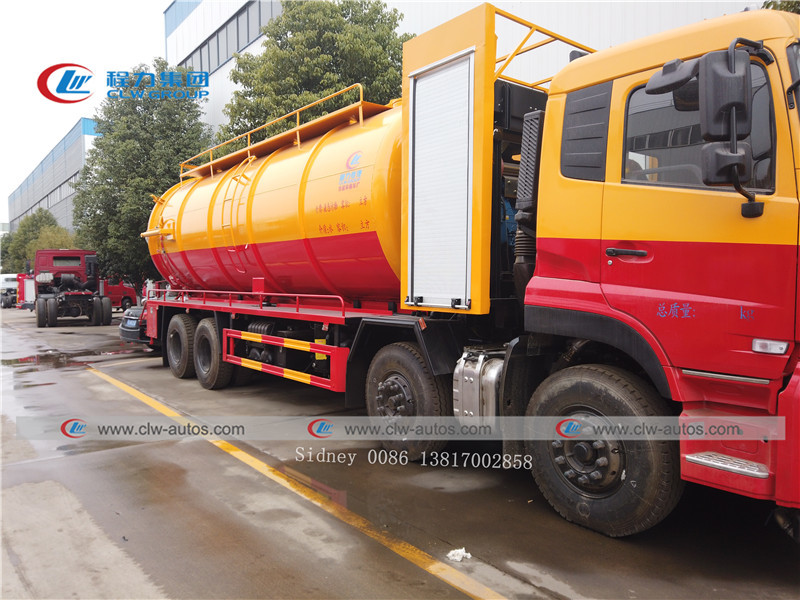

    Products Show

    8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck8X4 Dongfeng Kinland 25m3 Sewage Drainage Truck


    Sales Service

    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What kinds of Sewer cleaning truck I can order from your company?

    A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


    Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

    A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.


    Q3: Can we adopts International brand sewage pump for sewage suction truck?

    A: Sure, we already cooperated with Italy Jourp and a Germany brand.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
