High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine from wholesalers

    Buy cheap High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine from wholesalers
    • Buy cheap High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine from wholesalers
    • Buy cheap High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine from wholesalers
    • Buy cheap High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine from wholesalers
    • Buy cheap High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine from wholesalers

    High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5256GS
    Certification : ASME,CCC,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

    High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine


    Product Description

    LPG bobtails (also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

    With different design,you can choose volume flow meter or lpg dispenser for your truck. lpg bobtails is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.


    1) Truck Brand optional for lpg bobtails :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

    2) Tank Size of lpg bobtails : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails

    3) Function of lpg bobtails: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

    4) Refiling System of lpg bobtails : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

    5) Truck Spec of lpg bobtails : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.


    Product Specification

    ItemsDescriptionsSpecifications and Types
    GeneralTruck NameLPG dispenser truck
     Truck ModelCS
     Drive Type4*2
     Gross Vehicle Weight(kg)7495
     Curb Weight (kg)4990
     Overall Dimensions(mm)5900*2045*2600 mm
    EngineEngine BrandChao Chai
     ModleCY4100Q
     Fuel TypeDiesel
     Power95HP/70KW
     Emission StandardEuro III
     Displacement(ml)3856
     Engine TypeDiesel Engine,Water cooled, Four Stroke, ,4 Cylinder in line.
    ChassisCabSingle row cab
     Tire7Nos x 7.00-16 tire
     Wheelbase (mm)3300
     Axle No.2
     Gear Box5 speed forward with 1 reverse, manual
     BrakeAir brake
     Steering WheelLeft hand drive with power-assisted
    TankFilling MediumLPG(Propane)
     Tank Volume(L)5000
     Filling Mass(KG)2500
     Cylinder Design Thickness(mm)10
     Head Design Thickness(mm)10
     Tank MaterialQ345R high tension carbon steel, 8mm Thickness Tank Body.
     Density of Medium(kg/m3)420(50°)
     Design Pressure(Mpa)1.77
     Hydrostatic Test Pressure(Mpa)2.66
    Equipment for the tankpressure gauge, thermometer ,discharge valve, Safety Valve, Level Gauge, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape.
    Refilling system
    PumpMedium:Liquid petroleum gas
    Speed:15m3/h
    Input and Output Diameter:50 mm
    Working pressure:2.0 Mpa
    Working temperature:-40ºC- 50ºC
    Material:carbon steel
    DispenserDirectly Fill Cylinder or Tanker
    Nozzle Flow Rate: 10 - 60 liter/min
    Max Working Pressure: 2.5 Mpa
    Working Temperature: - 30 ~ + 55 ºC
    Filling gun with pipe1 unit filling gun, 15m filling pipe

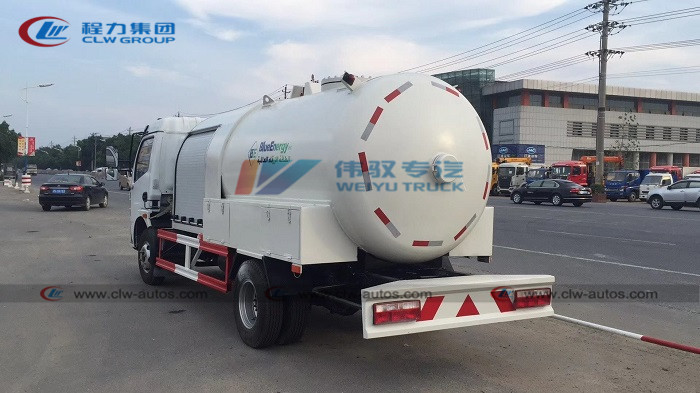

    Reference Photos


    Two Types of Dispenser for Optional

    Manufacturing Process

    8x4 LPG Tank Dispenser Truck With Filling Flow Meter , Lpg Bobtail Dispenser Truck

    8x4 LPG Tank Dispenser Truck With Filling Flow Meter , Lpg Bobtail Dispenser Truck

    JAC 8*4 34.5cbm LPG Tank Dispenser Truck 17 Tons 18 Ton With Gas Filling Machine


    Sales Service

    1) Pre-sales Service: Communicate with customers, analyze their needs.
    2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of LPG products I can order from your company?

    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.


    Q2: What is your production standard of LPG products?

    A: Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011.


    Q3: Have you supplied LPG products to any renowned companies?

    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.


    Q4: What about warranty?

    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?

    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
