Sino HOWO 10cbm 15cbm 6 Wheels LPG Bobtail Truck With Volume Flow Meter

Sino HOWO 10cbm 15cbm 6 Wheels LPG Bobtail Truck with Volume Flow Meter

Product Description

LPG bobtails (also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. lpg bobtails is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

1) Truck Brand optional for lpg bobtails :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of lpg bobtails : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails

3) Function of lpg bobtails: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

4) Refiling System of lpg bobtails : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5) Truck Spec of lpg bobtails : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

Product Specification

Chassis model							CL5140GYQD
Cab							Single row cab, with power steering.,with a/c
Driving Type							4*2 Left hand driving
Max Speed (km/h)							99
Overall dimension(mm)							798024303450
GVW( kg)							15000
Mass in working order ( kg)							8700
Wheelbase(mm)							4700
F/R track base (mm)							1900/1800
F/R overhang (mm)							1205/2050
Approach/Departure Angel							22/23
Tire							9.00-20 (6+1)
Clutch							Single-plate dry diaphragm spring clutch
Steering							Hydraulic steering with power assistance
Gear box							6-speed
Bridge	Front axle						5T
	Rear axle						10T
Enging	Model						B170-33
	Fuel Type						Diesel fuel
	Type						Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)						5700
	Max output power/rotate speed (hp /rpm )						170/2500
	Max torque/rotate speed(n.m/rpm)						560/1300
Braking system	Service Brake						Compressed air brake
	Park Brake						Spring energy
	Auxiliary brake						engine exhaust brake
Eletric system							24v
LPG TANK specification
Design specific gravity							0.42 Kg/L
Tank material							Q345R
Tank Designed thickness		End cover					9.35mm
		Tank body					9.37mm
Design temperature							50 ⁰C
working temperature							20~50 ⁰C
Corrosion allowance							1.0mm
Designed pressure							1.77Mpa
Hydraulic test pressure							2.30MPa
Leak test pressure							1.77Mpa
Heat treatment							Wholly get rid of stress
Use Years							Ten years
LPG dispenser		Function					Dispenser LPG to LPG cylinder or other LPG truck
		Flow rate					10 ~ 60L/min
		Max working pressure					2.5Mpa
LPG pump		Function					Delivery and pump LPG
		Flow rate					30-80L/min
		Working pressure					1.60Mpa
Liquid level meter		Type					Rotary
		Model					YWG-2.5
		Nominal pressure					PN2.5Mpa
		Surveying range					50-2300mm
		Precision					2.5Grade
Emergency cutting valve			Type			Gas phase		QCJ43F-2.5-8
						Liquid phase		QCJ43F-2.5-7
			Nominal pressure					PN2.5Mpa
			Nominal diameter	Gas phase				DN25mm
				Liquid phase				DN50mm
			Operation way					Fluid pressure
			Closing time					≤10 Sec
			Melting switch temperature					70±5°C
Safe valve			Type					A412F-2.5-16
			Model					Inner full lift
			Nominal pressure					PN2.5 MPa
			Nominal diameter					DN50
			Opening pressure					1.7MPa
			Closing pressure					1.86-1.94MPa
			Complete opening pressure					<2.12 MPa
Loading and unloading device			Valve type			Gas phase		YKAG-3.3-6
						Liquid phase		YKAG-3.3-7
			Model					Quick tie-in
			Nominal Diameter		Gas phase			DN25mm
					Liquid phase			DN50mm

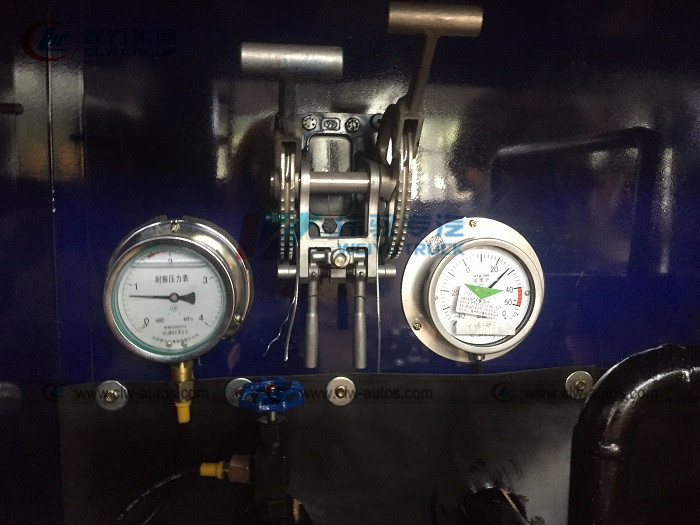

			Pressure meter					YN-100T
			Temperature gauge					WTQ-280
Other equipment
1.double tool box 2.double valve box 3.double Emergency Cut-off Valve 4.single pipe liquid out 5.both side loading and unloading

Reference Photos

Two Types of Dispenser for Optional

Manufacturing Process

8x4 LPG Tank Dispenser Truck With Filling Flow Meter , Lpg Bobtail Dispenser Truck

Sales Service

1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
