    Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat

    Foton 6t-8tons Refrigerated Refrigerator with America Thermo King or Carrier Freezer Cooling Truck


    Product Description

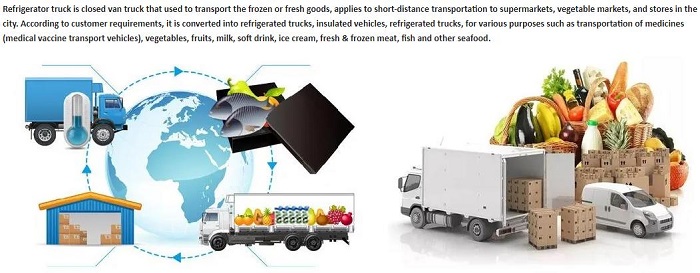

    1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

    2. Main parts of the truck: Refrigerating unit and control system.

    3. Features of the truck: International chassis brands and refrigerating unit brands for optional.


    Reference Photos


    Product Specification

    Vehicle
    ChassisFOTON
    Cabin2 Passengers
    Drive4 × 2 Left-hand driving or Right-hand driving
    Wheelbase3360 mm
    Gross vehicle weight8900 kg
    TyreSize8.25-16
    Quantity6+1 Spare
    BrakeServiceFront disc/Rear drum hydraulic brake
    ParkingCentral drum brake
    AuxiliaryExhaust brake
    SystemABS (anti-lock brake system)
    TransmissionGear6-Speed (manual)
    SteeringPower-assisted
    AuxiliaryClutch booster
    EngineFuelDiesel
    IntakeTurbocharged
    FormWater cooling
    Cylinder4 (In-line)
    Displacement3922 ml (EURO IV)
    Max. Power130 hp (95 kw)
    Bodywork
    Refrigerated VanDimension (internal)5070*1970*1920 mm (L*W*H)
    ThicknessRoof80 mm
    Wall80 mm
    Floor80 mm
    MaterialInnerGlass fiber reinforced plastics (GFRP)
    Outer
    InsulationMaterialPolyurethane foam (PUF)
    Thickness8 mm
    AssemblyFloorNon-slip checkered plate
    Door/lockStainless steel
    SealIndustrial-purpose rubber
    Refrigerator unitBrandKAILI
    ModelKL-780
    Temperature-18~0ºC
    RefrigerantsModelR404-A
    Charge1.3 kg
    Refrigeration capacity
    Driven by Truck engine0ºC-18ºC
    3430 w1920 w
    Compressor
    Air volume1500 m³/h
    Weight (Approximation)
    Evaporator16.5 kg
    Condenser26.9 kg
    Dimension
    Evaporator985*585*180 mm (L*W*H)
    Condenser925*430*300 mm (L*W*H)
    Accessories
    DefrostingHot gas defrost (Automatically)
    Adjustment deviceElectronic digital display
    Safety protectHigh and low pressure switch

    Optional Parts


    Different Capacities of Refrigerator Truck


    Sales Service

    1. Pre-sales Service: Communicate with customers, analyze their needs.
    2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What loading weight refrigerated truck I can order from your company?

    A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.


    Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

    A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.


    Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

    A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
