ISUZU GIGA 6X4 16000L Vacuum Sewer Jetter Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW5254WYXWC
Certification :	ISO, CCC
Price :	38520 usd/unit~79660 usd/unit
Payment Terms :	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :	300units/month
Delivery Time :	Within 30days after received advance payments

Add to Cart

Product Details
Company Profile

ISUZU GIGA 6X4 16000L Vacuum Sewer Jetter Truck

ISUZU GIGA 6X4 High Pressure 16000L 16000Liters 16Tons Vacuum Sewer Jetter Truck For Sale

Description--Sewer jetter truck(also called high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Sewer jetter truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

--Sewer jetter truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewer jetter truck pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;

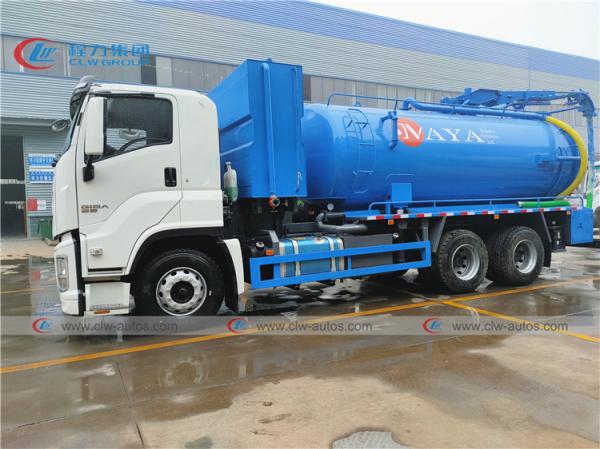

Reference picture

ISUZU GIGA 6X4 16000L Vacuum Sewer Jetter Truck

Specificatio

Isuzu sewer jetter trucks are mainly used for sewage cleaning and suction. The main special devices are vacuum pumps and tanks. The overall dimensions of the tank body are (straight section length×diameter) (mm): 5400×2150, in which the front section of the tank body is a clean water tank (the straight section length is 2400mm); the rear section is a sewage tank (the straight section length is 3000mm). The two tanks are independent and cannot be fully loaded at the same time. The clean water tank is used for the cleaning function, and the sewage tank is used for the dirt suction function. The effective volume of the clean water tank is 7.5 cubic meters, the medium: water, the density: 1000 kg/m3; the effective volume of the sewage tank is 9.3 cubic meters, the medium: liquid sewage, the density: 800 kg/m3.

Isuzu GIGA 6X4 vacuum sewer jetter truck comes with Isuzu chassis, wheelbase: 4565+1370mm, vehicle size: 9850*2500*3850mm, clean water tank 4 m3, 304 stainless steel, 3mm thick, each on the left and right is protected against water ingress. With measuring tube, Pinfu 420 flow high-pressure pump, sewage tank 15 m3, 6mm thickness, 4 baffles, baffle sealing ribs, Haosei 204 water ring pump, the tail 220 of the pneumatic blowdown, the tail 100 of the blowdown There is a sewage pipe on the left and right sides of the tank body, with guardrails on the top of the tank, 10 meters suction pipe with hydraulic boom installed, with remote control, platform under the tank, built-in roof, rear cover can be opened, 4 locks, tail The reel is enlarged. Accessories: 200m high pressure pipe, 10 combined nozzles.

Vehicle Parameter
ITEM	DESCRIPTION
Vehicle	ISUZU sewer jetter truck/sewer jetting truck
Overall dimensions (mm)	9850 x 2500 x 3850
Sludge tank (L)	15000
Flushing tank L	4000
Gross Vehicle Weight (kg)	25000
Curb weight (kg)	9000
Loading (kg)	16000
Wheelbase (mm)	4350+1350
Max speed (Km/h)	90
Chassis Parameter
Cabin	ISUZU GIGA cabin,power steering,no air conditioner, 2-3 passengers,left hand drive.
Drive type	6x4
Engine	Brand : ISUZU
Transmission	12 forward,2 reverse, manual operated
Tire model	12.00R22.5
No.of tire	10pcs,with a spare tire
Superstructure Parameter
Standard configuration	1. Sludge tank 15000l, flushing tank 4000l. 2. Sludge tank and flushing tank material are carbon steel plate. 3. Equipped with 60m high pressure tube,diameter 19mm. 4. Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer. 5. Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m.
High pressure pump	Brand : Italy HPP Model : ESL122/130 Pressure : 16Mpa Flow : 130L/min
Vacuum pump	Model : SK-12 Type : water circulation pump Vertical suction: 9m Flow : 1.5m3/min
Hydraulic system	Sewage suction tank can lifting through hydraulic cylinder

Related product

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
