    Dongfeng 170HP 10000L Vacuum Sewage Suction Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5167SQXWC
    Certification : ISO, CCC
    Price : 12520 usd/unit~22660 usd/unit
    Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 300units/month
    Delivery Time : Within 30 days after received advance payments
    • Product Details
    • Company Profile

    Dongfeng 170HP 10000L Vacuum Sewage Suction Truck

    Cheap Dongfeng 170hp Vacuum Sewage Suction Truck 10Tons 10000liters Sewage Jetting Truck

    Description--Sewage Jetting Truck(also called sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
    Sewage Jetting Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

    Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.


    Feature
    - tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;
    ---Quality chassis , perfect performance
    ---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.
    ---Nice shape , rational structure
    ---Massive, durable ,perfect performance
    ---Prolonged service time

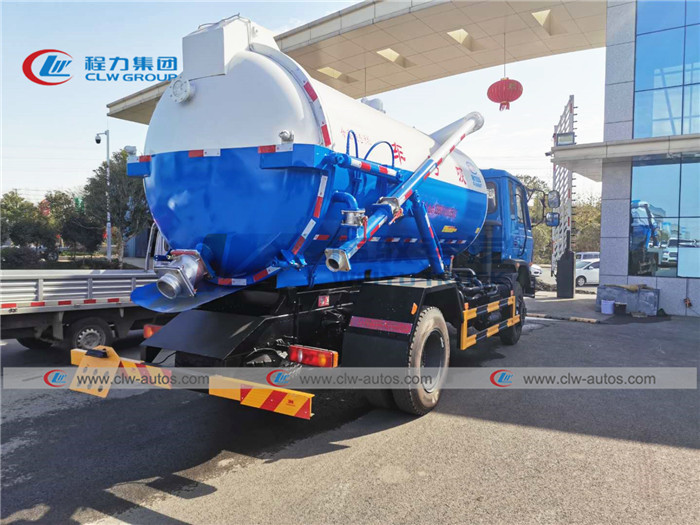

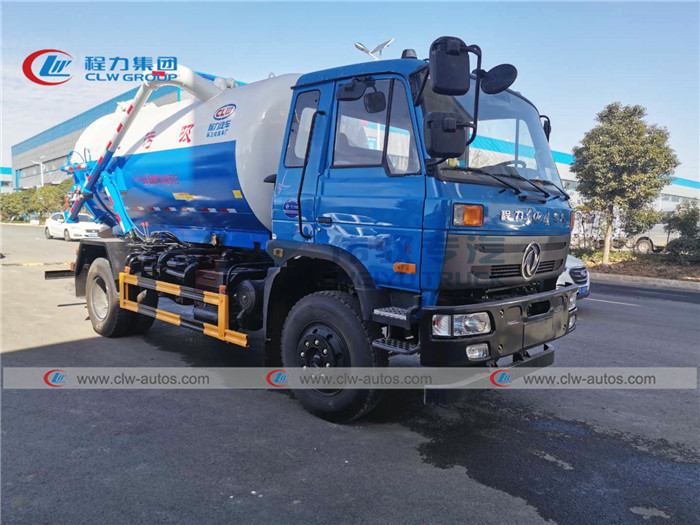

    Reference picture of 10,000liters Vacuum Sewage Suction truck with cheap price and chinese vacuum pump as follows

    Dongfeng 170HP 10000L Vacuum Sewage Suction TruckDongfeng 170HP 10000L Vacuum Sewage Suction TruckDongfeng 170HP 10000L Vacuum Sewage Suction Truck

    Vacuum Sewage Suction truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,



    Specification

    cabin

    Driving type 4x2,left hand drive

    Dongfeng old type flat cab for 2~3 persons
    Vehicle Main DimensionsOverall dimensions (L x W x H)mm7800×2500×3250
    Wheel base (mm)3950
    Wheel track (front/rear) (mm)1900/1860
    Approach/Departure angle(°)21/19
    Weight in KGSTare Weight7400
    payload8205
    Front axles loading capacity3600
    Rear axles loading capacity8000
    Max. driving speed(km/h)90
    EngineBrandCummins
    ModelB170 33
    Horse Power(HP)170
    Emission standardEuro III
    Gearbox6 forwards & 1 reverse
    Tire9.0020 tires with one spare
    Sewage TankTank volume: 10cbm
    Tank material:carbon steel Q235, thickness 6mm
    Vacuum Pump

    Chinese Yifeng vacuum pump XD-420;

    Max pressure -0.09Mpa;

    Suction Rate 116L/S;

    Speed 950 r/min;

    Other device

    Four-way valve;

    Overflow valve;

    Strainer device;

    Liquid level indication;

    Pressure gauge

    DN100 Sewage Inlet and DN100 Sewage Outlet;

    8 meters Sewage Suction Pipe;


    Structure of a dongfeng vacuum sewage suction truck


    Why do you choose us for vacuum sewage suction truck?


    1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
    2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;

    3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
    4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

    5.Timely shipment

    6. Overseas training and after sales service is available


    Related product

    Right hand drive howo 290hp 10,000liters septic cleaning truck


    Right hand drive FAW J5 10,000liters septic cleaning truck

    Left hand drive dongfeng cabin 10,000liters septic cleaning truck for Uzbekistan,Kazakhstan,Kyrgyzstan

    ISUZU FTR 10,000liters septic cleaning truck to Phillippines

    Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,dongfeng sewage truck,ISUZU sewage truck,howo sewage truck
