    Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers

    Dongfeng 30m3 Bulk Feed Truck Chicken/Duck/Cow Animal Feed Truck


    Dedicated configuration


    The tank body is made of 4mm high-quality carbon steel plate, and the whole vehicle has 3 screw augers, driven by 3 5.5KW motors. The top screw auger is lifted by hydraulic control and can rotate 180° left and right.

    The tank body is divided into three bins, which can independently control the discharge sequence and speed of each sub bin.


    Description:

    Model of CabFlat Top,Row and a half
    Driving Type4*2
    Wheel Base5000mm
    Model of GearBox/ManufacturerDF6S900/Dongfeng Automobile Gearbox Co., Ltd
    Model of Engine/ManufacturerISB180 50/Dongfeng Cummins Engine Limited
    Engine Capacity5900ML
    Rated Power132(kW)/2500(r/min)/180hp
    Max Maximum Torque700(N.m)/1500(r/min)
    Tyre Size10.00R20 18PR

    External Dimensions10890*2480*3900mm
    Bulk Capacity32m³
    Number of Compartments3
    Engine Power/voltage22kW/380V
    Max Transport Height7.9M
    Max Transport Length4.6M
    Rated Discharge Capacity450~600(kg/min)
    Residual Rate≤0.22
    Turning TypeElectric
    OthersABB Motor,It could connect external electric power

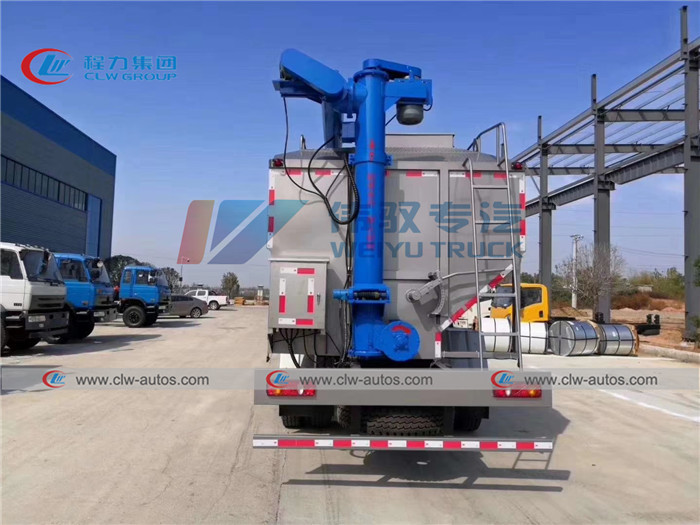

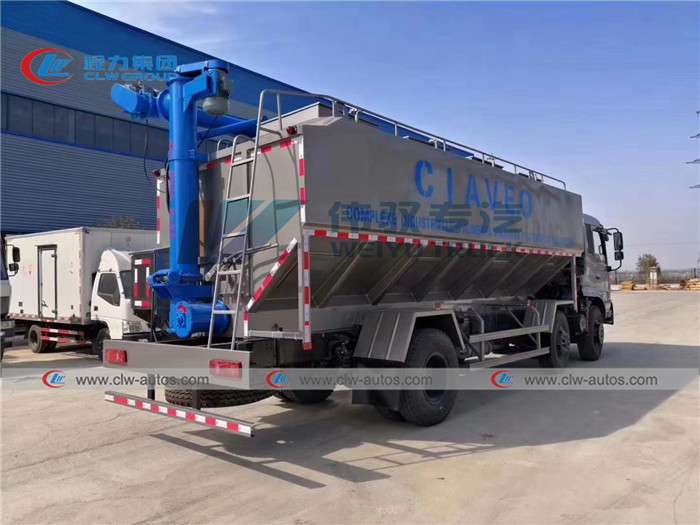

    Bulk Feed truck reference photos


    Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw AugersDongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw AugersDongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw AugersDongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw AugersDongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers


    Working show



    Bulk Feed Truck Diagram
