DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank

    Buy cheap DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank from wholesalers

    Buy cheap DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank from wholesalers
    • Buy cheap DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank from wholesalers
    • Buy cheap DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank from wholesalers
    • Buy cheap DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank from wholesalers
    • Buy cheap DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank from wholesalers
    • Buy cheap DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank from wholesalers
    • Buy cheap DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank from wholesalers

    DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : ASME,CCC,SGS,BV
    Certification : CLW9522xc
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 20~30 days after receiving deposit
    • Product Details
    • Company Profile

    DN2700mm Carbon Steel Q345R 50000 Liters LPG Storage Tank

    50m3 25tons LPG Cooking Gas Storage Tank 50000Liters LPG Storage Tank for Cambodia

    Product Description
    1. Storage medium of storage tanks : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
    2. Available tank capacity of storage tanks : 5m³~200m³,2ton~100tons
    3. Manufacturing standards of storage tanks : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
    4. Optional for storage tanks equipments as follows,
    lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.


    Specification of 25tons cooking gas tank

    Parameter of 25tons storage tanks
    ITEMPARAMETERITEMPARAMETER
    Volume50000litersThickness of Shell14mm
    Tank MaterialQ345RThickness of End plate16mm
    Overall Size9182*2728*3318mmTank Net Weight10640kg
    Tank Diameter2700mmLoading Capacity19950kg
    Design Pressure1.77MpaGas Density420kg/M3
    Hydraulic Test Pressure2.22MpaCorrosion Allowance1mm
    Design Temperature-20ºC~60ºCHeat TreatmentBulk
    Vapor OutletDN50Gas OutletDN50
    Life time15 years
    Accessories
    ModelItemQtyJunction surface
    J41N-2.5-50Stop Valve DN506RF
    J41N-2.5-25Stop Valve DN252RF
    J41N-2.5-80Stop Valve DN801RF
    J24W-320-DN6J24W Needle Valve M20*1.51
    HG21584-95Magnetic plate level Gauge UZFAL-2.5RF-3040-0.51RF
    A42F-25-80Safety Valve DN801RF
    Y-100TPressure Gauge M20*1.5 1.5degree 0~4Mpa1
    WTQ-280Thermometer M33*2 2.5 degree1-40ºC~60ºC



    Production in Factory:

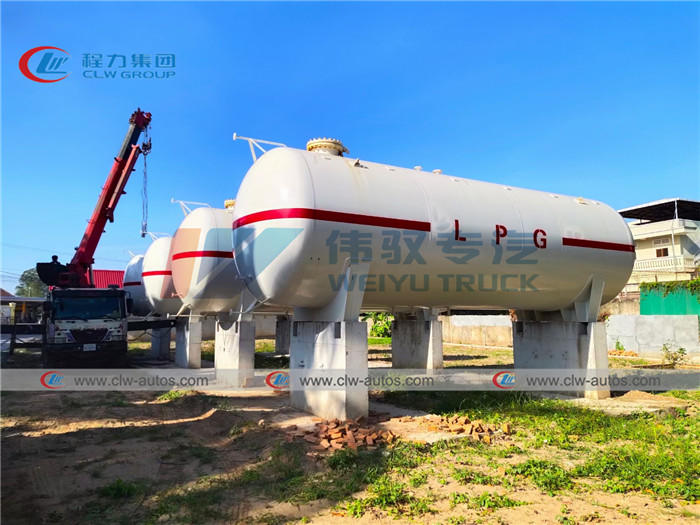

    Arrived in Cambodia


    FAQ
    Q1: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
    Q2: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
