Double Row 2Tons 3Tons Vegetable Frozen Meat Fish Delivery Van
Truck
Product Description
1. Purpose of Fish Delivery Truck : It used for transporting
frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts of Fish Delivery Truck : Refrigerating unit and
control system.
3. Features of Fish Delivery Truck : International chassis brand
and International refrigerating unit brand for optional.
4. For the special requirements of freezer vehicle,such as the meat
transportation, the meat hook, aluminum alloy guide rail and
ventilation slots, ladder, LED lamp, etc. parts can be chosen and
installed. Different refrigerated units are available like Carrier,
Thermos King, Dongin, Kingtec, etc. The standby battery, side door,
side windows, etc are optional.
Fish Delivery Truck also called Refrigerated truck, refrigerator
truck,refrigerated van truck, refigerated vehicle, freezer truck,
cold van, etc.
1. Fish Delivery Truck loading capacity
:1ton,1.5ton,3ton,5ton,10ton,12ton,15ton,20tons,etc.
2. Fish Delivery Truck Refrigerated Truck brand : Foton, 1suzu,
Howo, Dongfeng, Jac, Jmc,etc
3. Fish Delivery Truck Refrigerated Truck transport : fish,
seafood, meat, vegetable, milk, food,fruit, etc.
4. How to buy meat transport truck, please contact with Ms. shirley
by whatsapp: +8613545064324

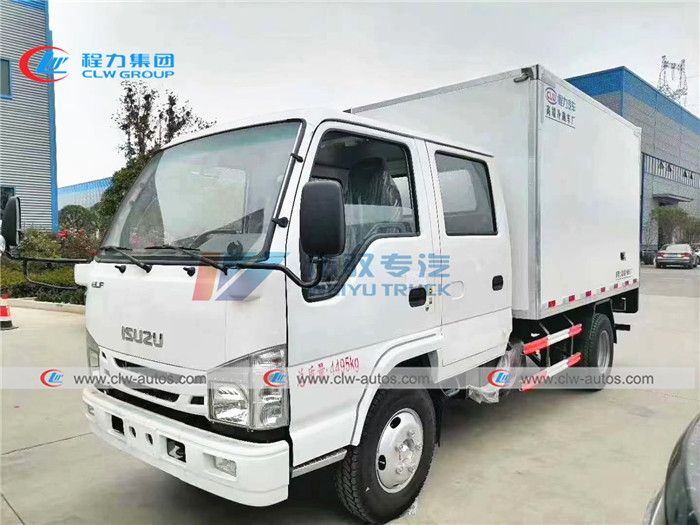

Spec of double row ISUZU 2tons fish transport van truck with thermo
king KV-380
Subject | ISUZU Double row cab 4*2 refrigerated truck/freezer truck |
Overall Dimension | 5995*1390*2870mm |
Box size | 3150*1750*1750mm |
Chassis Model | QL1040A6HWY |
Wheelbase | 3360mm |
Gross Weight | 4495kgs |
Curb Weight | 2675kgs |
Engine |
Engine Brand | ISUZU |
Model | 4KH1CN5LS |
Type | Multi cylinder, 4 stroke, water cooled,direct fuel injection,
turbo-diesel engine |
Displacement Volume(ml) | 2999 |
Net Power(kw) | Min 72 KW at rated RPM |
Fuel Type | Diesel |
Emission Standard | From Eour3 to Eour5 |
Clutch System | Model | Single plate, dry friction |
Steering System | Power Steering | Left hand driving |
Transmission System | Manually operated | Five forwards and one reverse |
Brake System | Service Brake | Hydraulic disk brakes |
Park Brake | Air Brake & Hand Brake |
Suspension System(Front & Rear) | Semi-elliptical leaf spring with telessopic shock absorber (both
front * rear) |
Tyre | Tyre Quantity | 6 pcs |
Tyre Specification | 6.50R16 10PR,6.50R16 10PR,7.00R16 8PR |
Cabin | 1900mm wide of cabin, 5 persons (including driver) ,power jack,
tempered windshields, Electric preheating, electric flameout, ABS,
USB, central locking, power window etc. |
Main Structure of commercial refrigerated box truck
1) Van box material:Chinese high quality glass steel,optional for
color plate,stainless steel,aluminum alloy steel
2) Refrigerator unit system:Chinese renown brand like
HANXUE,HUATAI,US brands such as CARRIER,THERMO KING,south korean
brand such as DONG IN THERMO CO．,LTD
3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for
outer electricity source
4) Stainless steel knock
5) Hooks for hanging meat
6) stainless steel or glass steel bottom plate with ventilating
slot
7) Temperature controller in cabin and easy for operation
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
FAQ
Q1: What loading weight refrigerated truck I can order from your
company?
A: We can supply 990kg-40tons refrigerated truck, if you need big
size refrigerated semi trailer, we also can supply it, there have 2
axles and 3 axles 40tons to 60tons refrigerated semil trailer for
optional.
Q2: What is your production standard of refrigerated truck?
Whether your refrigerated truck and trailer can export to USA,
Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per
China GB local standard; We can export super structure to those
market, we ever exported refrigerated truck super structure and
refrigerated semi trailer to Europen countries before.
Q3: Can we adopts International brand refrigerating unit for
freezer truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South
Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. From Shanghai to WUhan is only
2 hours by airplane. Warmly welcome you to visit us in near future!
