    Carbon Steel Howo RHD Fuel Dispenser Truck 25000L 6000 Gallons

    Ask Lasest Price
    Brand Name : CLW
    Model Number : clw5252WYYGC
    Certification : ISO, CCC
    Price : 12250-38620USD/UNIT
    Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 300units/month
    Delivery Time : 30 days after received advance payments
    • Product Details
    • Company Profile

    Carbon Steel Howo RHD Fuel Dispenser Truck 25000L 6000 Gallons

    Right Hand Drive Oil Tanker Truck,25000L 6000 Gallons Carbon Steel Howo Fuel Dispenser Truck

    Description

    Oil Tanker Truck(also called fuel truck,fuel tank truck,fuel delivery truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.


    1. Purpose of Oil Tanker Truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

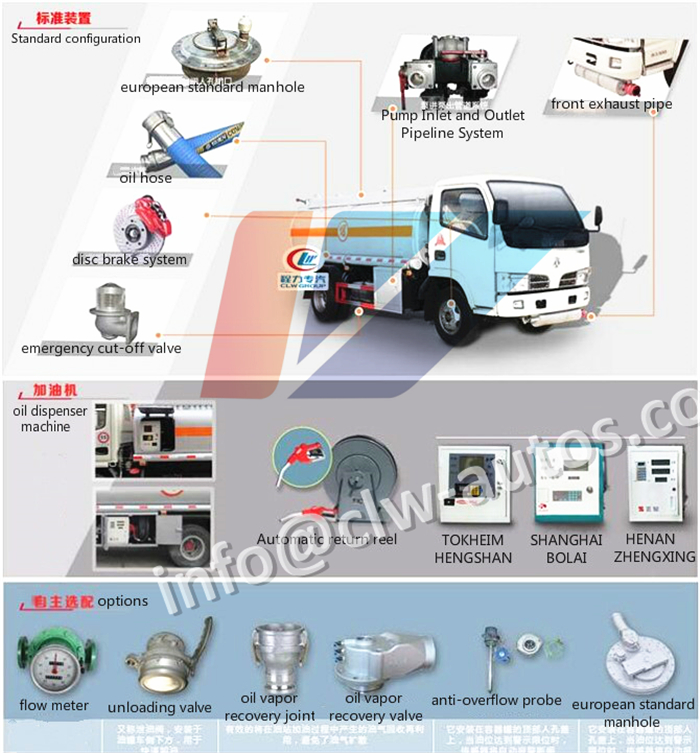

    2. Optional for Refueling System of Oil Tanker Truck: Oil pump, Hose reel with filling gun/Oil dispenser machine,flow meter

    3. Tank shape of Oil Tanker Truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
    5. Refueling machine of Oil Tanker Truck the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
    6. Optional parts of Oil Tanker Truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.


    Feature--Heavy duty howo truck chassis;--High quality carbon steel/aluminum alloy tanker material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

    -- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

    --The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

    -- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

    --strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

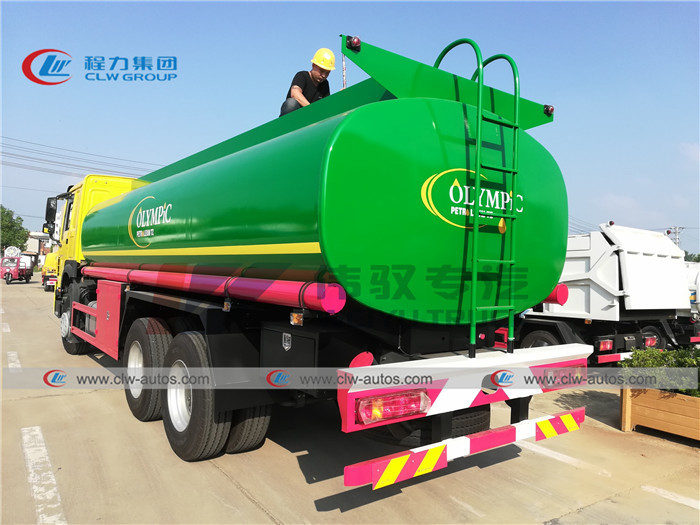

    Reference pictures

    Carbon Steel Howo RHD Fuel Dispenser Truck 25000L 6000 GallonsCarbon Steel Howo RHD Fuel Dispenser Truck 25000L 6000 GallonsCarbon Steel Howo RHD Fuel Dispenser Truck 25000L 6000 GallonsCarbon Steel Howo RHD Fuel Dispenser Truck 25000L 6000 Gallons

    Specification

    Fuel tank truck specification
    Truck brand20cbm 25cbm oil Tanker Truck
    Driving typeLeft hand drive and right hand drive
    truck fuel tank size(L*W*H)10350*2496*3633(mm)
    Tank demesions (L*W*H)5050*2496*1620 (mm)
    Tank capacity(L)20000liters
    Approaching angle/Departure angle(°)16/12(°)
    F/R track base(mm)1205/3485 (mm)
    Curb weight(kg)11360(Kg)
    Max speed(km/h90
    Tank specification
    Tank volume20000L truck fuel tanks
    Tank Materialcarbon steel
    Engine(Steyr technology, made in China)
    ModelWD615,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
    Fuel typeDiesel
    Horse Power, max(kw/rpm)336HP
    EmissionEURO II
    Fuel tanker capacity (L)300
    Transmission
    ModelHW13710CL,10 forwards and 2 reverse
    Brake system
    Service brakeDual circuit compressed air brake
    Parking brakespring energy, compressed air operating on rear wheels
    Auxiliary brakeEngine exhaust brake
    Steering system
    ModelZF8098
    Other specification
    Front axleHF7
    Rear axleST16
    ColorOptional
    Tire11.00-20 / 12.00-20/ 295/80R22.5
    Tire quantity11
    Electrical system
    Battery2X12V/165Ah
    Alternator28V-1500kw
    Starter7.5Kw/24V
    Cab

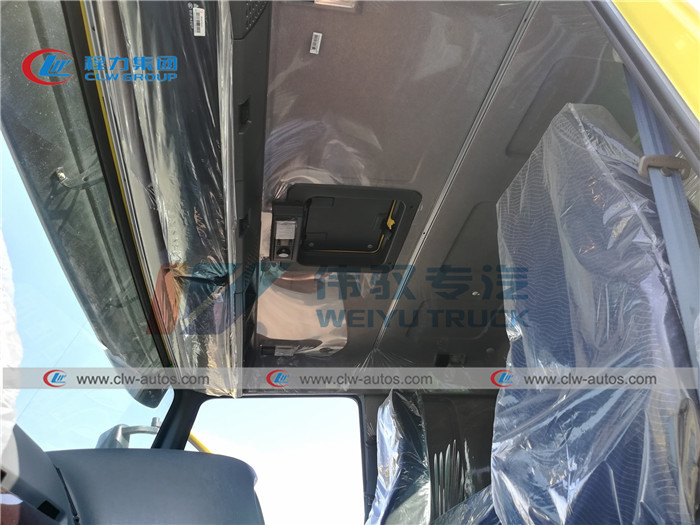

    HOWO76 cab with one sleeper and air conditioner


    Key word: howo 25000liters fuel truck,howo 30,000l fuel truck,30tons fuel truck,30t oil truck,howo fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,30k liters fuel truck,30000liters fuel truck,isuzu tanker truck
