    Aussie Friendly ADR Standard 25cbm 3 Axle Side Dump Semi Trailer

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5086ZXG
    Certification : CCC,ISO,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    Aussie Friendly ADR Standard 25cbm 3 Axle Side Dump Semi Trailer

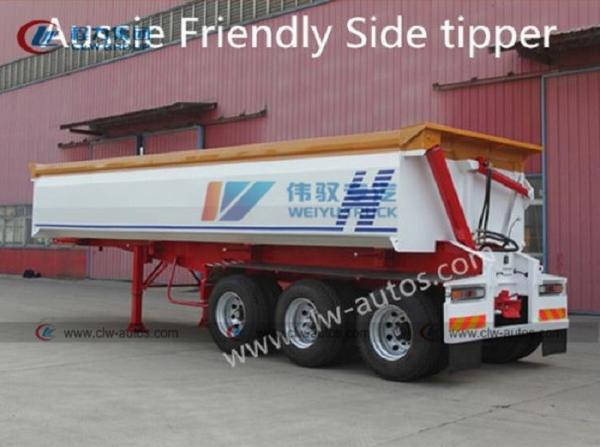

    Aussie Friendly 3-Axle Side Tipper in Adr Standard Side Dump Semi Trailer To Australia


    We are specilized in designing and building many kinds of OZ ADR standard trailers, such as:
    1. earth-moving side tipper;
    2. end tipper;
    3. grain end tipper;
    4. water tanker;
    5. quad-axle lowloader deck-widener;
    6. tri-axle lowloader deck-widener;
    7. 45ft dropdeck extendable;
    8. 45ft flatdeck extendable;
    9. 45ft sliding lowloader;
    10. dolly trailer;
    11. pig trailer/Tagalong Truck, etc.


    We sincerely welcome you to visit our factory and provide your precious suggestion for us!

    Product Specification

    DIMENSIONS
    Tare WeightApprox.8500kgs
    Payload40000kgs
    Overall Length10000mm
    Overall Width2480mm
    Overall Height2840mm
    Photo for reference, final produce can be made according to exact requirements;
    and our drawing confirmed from the buyer
    DUMPER BODY
    VolumeAppox 25m3
    Bin and door5mm thickness by hardox 450 or Chinese NM450
    SPECIFICATION
    ChassisHeavy duty and extra durability designed Fabricated I-Beam - 345 MPA
    welded by automatic Submerged-Arc processes.
    Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 8mm ;
    Bottom Flange 16mm,width 140mm.
    Axle3 axles
    FUWA K-Hitch brand 11.5ton
    Cylindertwo set of hydraulic tip cylinder Ø 150mm , door cylinder Ø 80mm
    Single Stage, Double Acting, Externally Mounted to each end
    Hydraulic systemOne (1) Air-Operated Directional Control Valve with manual over ride.
    Two (2) 1" Hydraulic hoses fitted to front of subframe

    with 1" BSP compatible couplings
    Suspensionmechanical with 10-piece leaf spring. Air bag is optional
    King PinJOST brand 2'' or 3.5'' Two bosses with 90mm Kingpin
    to suit Tandem or Tri Axle Dolly
    Landing GearJost brand Two Speed, Manually operated, with Rubber Flap Guard to front
    Wheel Rim9.0R22.5 10 stud steel rim 13 pieces PCD 335; alloy rim is optional
    TyreChengshan brand 12R22.5 tubeless tire, 13 pieces
    Spare Tire RackDual Swinging type
    Braking System3 sets of T30/30 Spring brake chamber;
    40L air tanks with Wabco air controlled system.
    Mud guardSpring Tension Rubber over Tri Group
    FinishSandblasted to grade 2.5; 2k Primer and Painted in 2-Pack to required color
    Light & wireLED Combination Rear Lights, and LED Side lights.
    with ADR standard wire and 7-pin socket
    OthersRoad Train Spec.


    Main Details



    Sales Service


    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of side trailer I can order from your company?

    A: We can supply various sizes of lpg tank trailer from30-60cbm,etc.


    Q2: What's the material of your side trailer?

    A: We usually provide carbon steel, stainless steel, and aluminium alloy for customer's requirements.


    Q3: What is your production standard of side trailer? Whether your side trailer been exported to USA, Canada and Europen countries?

    A: Our side trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported side trailer super structure to Europen countries before.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
