Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck from wholesalers

    Buy cheap Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck from wholesalers
    • Buy cheap Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck from wholesalers
    • Buy cheap Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck from wholesalers
    • Buy cheap Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck from wholesalers
    • Buy cheap Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck from wholesalers

    Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5096JYC
    Certification : CCC,ISO,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 35 Days
    • Product Details
    • Company Profile

    Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck

    Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck


    Product Description
    1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
    2. Main parts: Fuel pump, flow meter and filling gun etc.
    3. Advantage: Our helicopter refueling truck have most competitive price.


    Product Specification

    ConditionNew condition/Left hand drive/4x2
    ChassisBrandSINOTRUK HOWO
    Curb weight(kg)8805 kg
    Loading weight(kg)7000/8000/9000 kg
    Wheelbase(mm)4200/4500/4700/5000 mm
    Front/Rear axle loading weight(kg)4000/7000 kg
    Front/Rear overhang(mm)1430/2370 mm
    Approach/Departure angle(°)18/12
    Max. driving speed(km/h)80 km/h
    ClutchReinforced diaphragm clutch
    BrakesService brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust valve brake
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity6pcs with one spare tire
    Specifications9.00-20
    TransmissionManual type, 8 Forwards and 2 reverses
    SteeringPower steering, hydraulic steering with power assistance
    CabIt can accommodate three people, With Air conditioner
    EngineBrandSINOTRUK
    ModelWD615.62
    Fuel typeDiesel
    Displacement(ml)9726 ml
    Power(kw)156 kw
    Horsepower(HP)266 HP
    Cylinder number6 pcs
    Emission standardEuro 2
    Upper & Equipment
    Fuel tankCapacity(cbm)15.0 cbm/15 cbm
    Tank materialAluminium alloy
    Thickness(mm)5.0mm
    Compartment quantity(pcs)1 pcs
    Filling mediumAviation kerosene
    Fuel pumpQuantity(pcs)1 pcs
    ModelChina local brand
    Notes1, Aluminium alloy safety valve 1 pc
    2, Mechanical type Ladder
    3, Filter system
    4, Control system
    RemarksCustomized LOGO design as per customer needs!

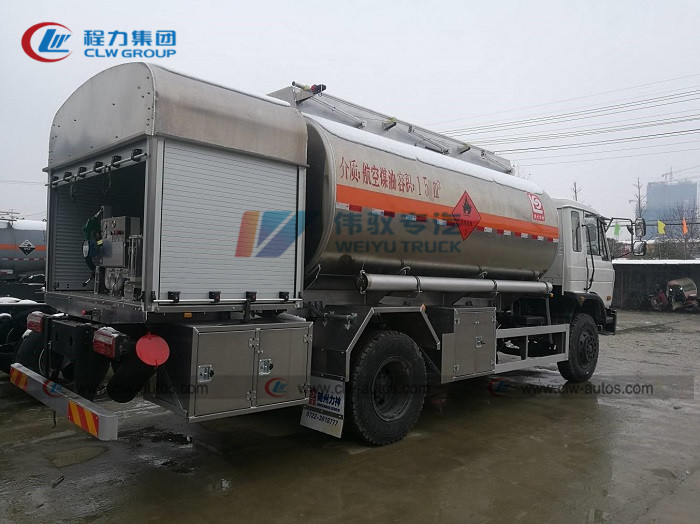

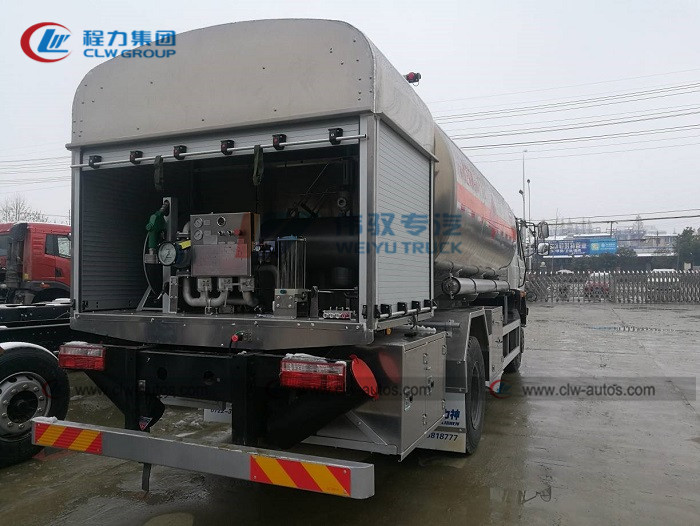

    Reference Photos


    Aluminum Alloy Tank Production Process


    Other Kinds of Fuel Dispenser Trucks



    Sales Service


    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What kinds of Helicopter refueling truck I can order from your company?

    A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.


    Q2: What is your production standard of Helicopter Refueling Truck products?

    A: China GB local standard.


    Q3: Can we adopts International brand fuel pump for helicopter refueling truck?

    A: Sure, we already cooperated with many international brand supplier.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
