    Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5040XLCQ
    Certification : ISO, CCC
    Price : 15520 usd/unit~35660 usd/unit
    Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 300units/month
    Delivery Time : 30 working days after received advance payments
    • Product Details
    • Company Profile

    Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck

    ISUZU 6CBM 6000liters 1500 Gallons 5tons Sewer Tanker Truck Mounted Sewage Vacuum Cleaner
    Description--ISUZU Truck Mounted Sewage Vacuum Cleaner (also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
    ISUZU Truck Mounted Sewage Vacuum Cleaner is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

    Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.


    Feature
    --Vacuum Sewage Suction Truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Mobile ISUZU 600P truck chassis;

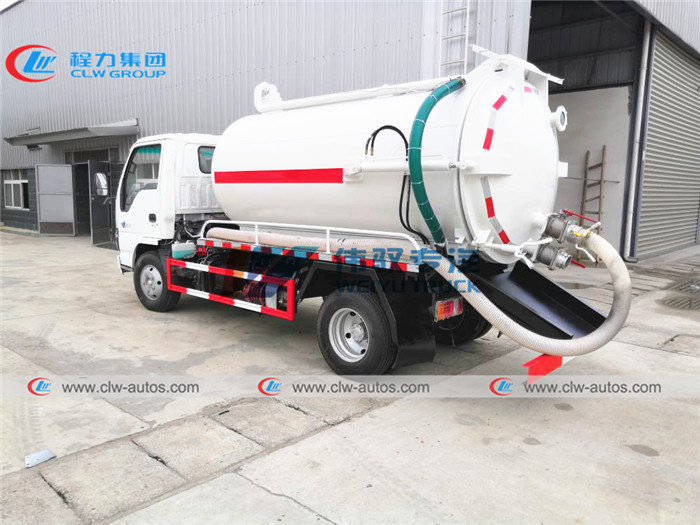

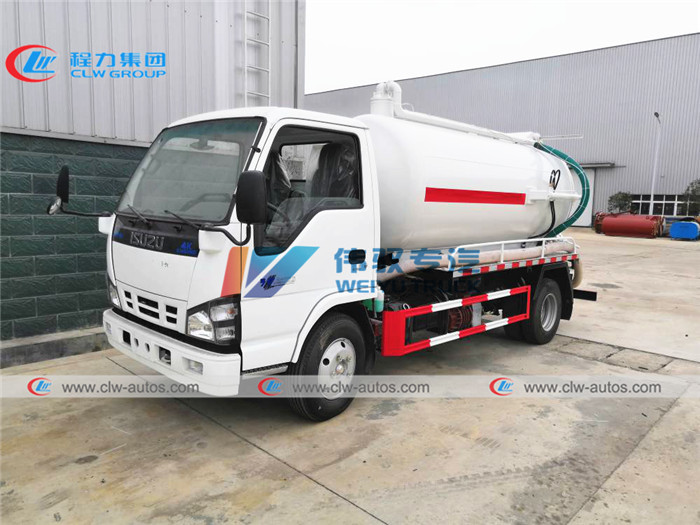

    Reference picture

    Left Hand Drive ISUZU 6CBM Sewer Vacuum TruckLeft Hand Drive ISUZU 6CBM Sewer Vacuum TruckLeft Hand Drive ISUZU 6CBM Sewer Vacuum Truck


    Specification
    Chassis parameters
    CabinISUZU 700P cabin/Left hand drive/4x2
    GVW(kg)10000
    Wheelbase(mm)3815 mm
    Dimensions(mm)6700*2300*2700mm
    Front/Rear Axle loading(kg)4000/7000 kg
    Wheel track (front/rear) (mm)1680/1650 mm
    Front/Rear overhang(mm)1110/1775 mm
    Approach/Departure angle(°)21/15 °
    Max. driving speed(km/h)105 km/h
    ClutchReinforced diaphragm clutch
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity6 pcs with one spare tire
    Specifications7.00R16
    Gear boxManual type,ISUZU MSB transmission/ 5 forward & 1 reverse

    Engine

    BrandISUZU engine
    Model4KH1CN5HS
    Fuel typeDiesel
    Displacement(ml)5193ml
    Power(kw)96kw
    Horsepower(HP)130 HP
    Max. Torque(N.m)510
    Emission standardEuro V
    Sewage Suction Tanker
    Sewage tankCapacity(cbm/liters)5CBM or 6CBM
    Tank materialQ235 carbon steel
    Thickness(mm)5mm
    Working pressure93% Vacuum and above
    Sewer Discharging outlet(mm)100~150
    Tank is front tipping under function of oil cylinder
    Sewage pumpBrandChina famous brand wate ring vacuum pump
    ModelSK-12
    Max. Suction Speed(m3/min)12
    Working Speed(r/min)970
    Max vacuum pressure6700pa
    Power(KW)18.5kw
    Lamp

    1-Revolving Warning Light on top(optional,not standard equipment)

    2-Upper Arrow Warning light at truck rear(optional,not standard equipment)

    6-Signal light at truck rear

    Main parts

    1. Suction hose 6meters

    2. Water-gas separator;

    3. Oil-gas separator

    4. Four way valve;

    5. Drain valve;

    6. Sewer-observation valve(glass valve);

    7. Anti overflow valve ;

    8. Anti overflow warning device

    9. Hydraulic control rear cover;

    10. Tipping sewage tank body;

    11. PTO;

    12. Pressure Gauge;

    13. Hand washing device.

    RemarksThe color and painting is as request
