    ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5044WYXWC
    Certification : ISO, CCC
    Price : 12820 usd/unit~32850 usd/unit
    Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 300units/month
    Delivery Time : Within 30days after received advance payments
    • Product Details
    • Company Profile

    ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

    ISUZU 2000Liter Water 4m3 Sewage Tank Vacuum Sewer Jetting Septic Tank Cleaning Truck

    Description--Septic Tank Cleaning Truck(also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
    Septic Tank Cleaning Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

    Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.


    Structure of septic tank cleaning truck:
    The sewage cleaning truck is mainly composed of chassis + tank body + sandwich power take-off + high pressure pump + high pressure tee + hose reel + high pressure pipe + nozzle + hydraulic system + vacuum pump + vacuum system + hydraulic lifting mechanism.


    High-pressure part: The high-pressure pump is mainly driven by a full-power power take-off to produce high-pressure jet water and various blockages in the pipeline are flushed through the pressure of the reflected water of the high-pressure nozzle to achieve the purpose of dredging and cleaning the pipeline.

    Dirt sucking part: The vacuum pump is driven by the side-mounted power take-off to extract the air in the tank to form a vacuum inside the tank and suck the dirt into the tank through atmospheric pressure!


    Feature
    --Vacuum septic suction truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Japanese ISUZU truck chassis;

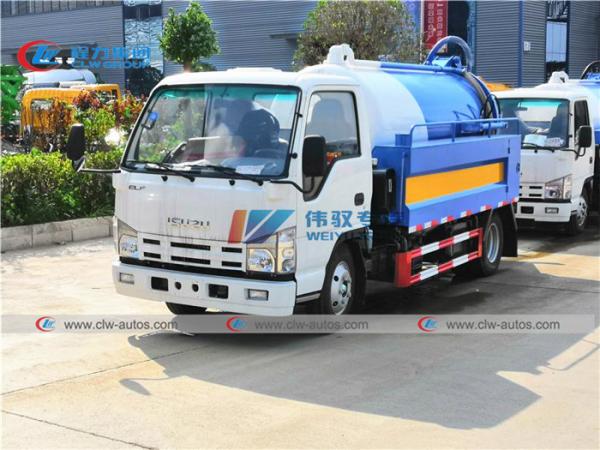

    Reference picture

    ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum TruckISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum TruckISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck


    Specification
    Chassis parameters
    CabinISUZU 100P cabin/Left hand drive/4x2
    Loading weight(kg)3800kg
    Wheelbase(mm)3360 mm
    Dimensions(mm)5900*1900*2400mm
    Front/Rear Axle loading(kg)2000/4000 kg
    Wheel track (front/rear) (mm)1770/1586 mm
    Front/Rear overhang(mm)1210/1490 mm
    Approach/Departure angle(°)24/12 °
    Max. driving speed(km/h)100 km/h
    ClutchReinforced diaphragm clutch
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity6 pcs with one spare tire
    Specifications7.00R16
    Gear boxManual type,ISUZU MSB transmission/ 5 forward & 1 reverse

    Engine

    BrandISUZU engine
    Model4KH1CN5LS
    Fuel typeDiesel
    Displacement(ml)2999ml
    Power(kw)72 kw
    Horsepower(HP)98 HP
    Max. Torque(N.m)220
    Emission standardEuro V
    Sewage Suction Tanker

    1) Sewage tank and water tank material are carbon steel, tanker body thickness 5mm, tank head thickness 6mm.

    2)Equipped with 60m high pressure tube,diameter 19mm.

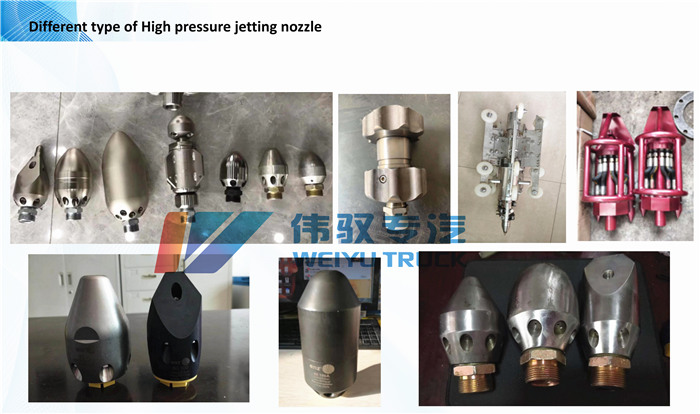

    3) Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer.

    4) Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m.

    5) High pressure pump:

    Brand : Italy HPP

    Model : ESL122/130

    Pressure : 16Mpa

    Flow : 130L/min

    6)Vacuum water pump

    Model : SK-6

    Type : water circulation pump

    Vertical suction: 9m

    Flow : 1.5m3/min
