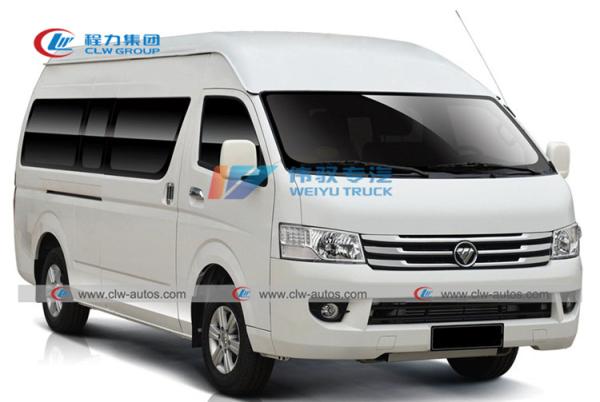

    10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW9050BS
    Certification : CCC,BV,SGS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units/month
    Delivery Time : 30 days aftere receiving deposit
    • Product Details
    • Company Profile

    10 Seats 12 Seats 15 Seats 16 Seats Foton Mini City Bus

    10 Seats 12 Seats 15 Seats Mini City Bus 16 Seats Foton Business Bus

    Product Description

    Bus(also called Autobus.) is used for Long-haul and Short-haul passenger transporting.
    Bus can be divided into various types as follows,
    1) according to truck brands, there are dongfeng and asiastart for optional.
    2) according to seat capacity: 20 seats, 28 seats, 30 seats, 40 seats, 48 seats, 50 seats, 55 seats, 58 seats and 60 seats etc.
    3) according to purpose: Long-haul and Short-haul passenger transporting bus.


    Vehicle
    Overall length (mm)

    5380
    EngineEngine modelBJ493ZQ

    Overall width (mm)

    1920

    Overall height (mm)

    2285

    Manufacturer

    Beijing Foton

    Wheelbase (mm)

    3110

    Position/Fuel

    Diesel

    Front/rear overhang (mm)

    1190/1080

    Max. power (kW)

    68
    Min. turning radius (mm)
    6250

    Max. torque (N.m)

    202
    Min. ground clearance (mm)
    ≥170

    Displacement (ml)

    2771

    Wheel track (mm)

    1655/1650

    Max. speed (km/h)

    ≥120

    Max. GVW (kg)

    3400

    Curb weight (kg)

    2275

    Rated passenger capacity
    16
    Seat layout

    3+3+3+3+4


    Item

    Standard Configuration
    ChassisTransmissionZM001AJD, manual mechanical 5 speed transmission

    Clutch
    Single, dry type, diaphragm spring clutch, hydraulic control

    Front axle
    /

    Rear axle
    Banjo type housing, speed ratio 4.556; load rating (kg): 1800

    Suspension
    Front: double wishbone torsion spring independent suspension;
    Rear: plate spring/ 3+1

    Steering

    Power steering, rack and pinion

    Brake
    Front disk brake, rear drum brake, wheel-side hand brake

    Tire
    195R15C, steel wheel + mask tire
    Basic composition
    Cab
    Wide and high roof

    Bus body
    Unibody, standard and bright window

    Trim
    Half pack (fiber board) inner decoration, PVC+ nonwoven molding celling

    Window
    front electric window + remote control lock

    Rear view system
    electric adjust and manual fold rear-view mirror
    manual+ anti-glare inner rear-view mirror

    Air conditioning
    Front or rear air conditioner

    Defroster
    rear windscreen defroster

    Audio-visual system
    radio sound source connector, 2 speakers

    Lights
    front frog lamp, courtesy lamp for side door, high braking light,reading lamp

    Windscreen wiper
    rear wash and windscreen wiper; front double windscreen wiper (interval)

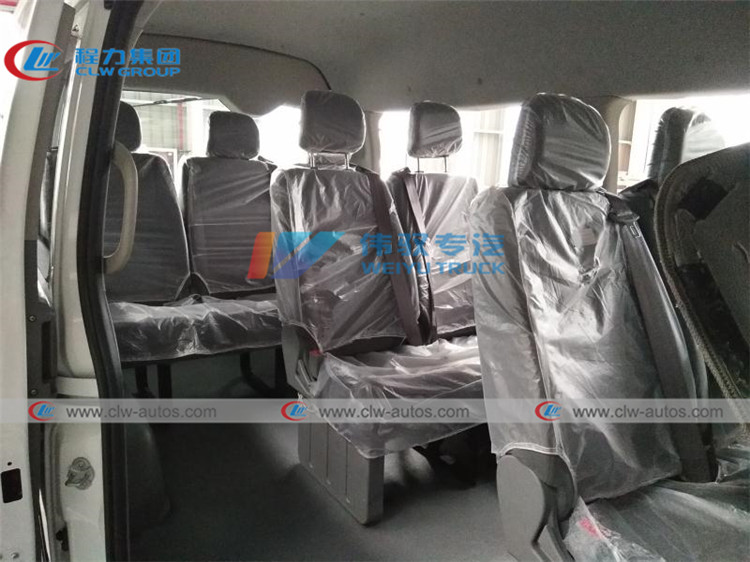

    Seats
    Knit seat with head rest. The back rests are independent and adjustable in passenger zone except the last row; with three-point safety belt

    Paint
    Plain solid paint
    Others/

    Products Show



    Sales Service

    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of bus I can order from your company?


    A: There are different kinds of bus for optional,you can contact us and tell your request.We will recommend you suitable product.


    Q2: Have you supplied bus to any overseas companies?


    A: Yes,with need of government and transportation company project,we offered many bus to many Africa and south-east Asian,south-American countries.


    Q3: What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
