15000L HOWO 10T 15T SS304-2B Milk Tanker Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW5167STWD
Certification :	CCC BV SGS
Price :	11250-29560USD/UNIT
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 Units/Month
Delivery Time :	30 days after receiving deposit

Add to Cart

Product Details
Company Profile

15000L HOWO 10T 15T SS304-2B Milk Tanker Truck

HOWO 10Tons 15Tons Fresh Milk Tanker Truck 15000L 4000Gallons Stainless Steel SS304-2B Water Milk Transport Truck

►Description

Milk Transport truck(also called milk truck,milk delivery tanker,milk tanker, milk transporter, milk preservation transporter, liquid food transporter truck) is mainly used to transport fresh goat milk, fresh milk, fresh juice, edible oil,Fresh-keeping edible products such as bulk beer. With excellent heat preservation and anti-corrosion effects,milk transport truck can ensure that the product is stored in the tank for 24 hours and the temperature is within the range of plus and minus 1 degrees Celsius.

►FeatureThe tank body structure is divided into three layers: the insulation production layer, the insulation layer and the tank body.
1) The tank body of the frame is made of food-grade 304 stainless steel plate. The tank body can be made into 2-3 compartments. The tank body is required to be smooth and free of sharp angles. Each milk tank is equipped with a cip (cleaning device) tank with a washer.

2) There is an insulation layer in the middle of the tank, which has the effect of insulation and prevents the deterioration of fresh milk. When the temperature difference is 30 degrees, the temperature change shall not exceed 1 degree in 24 hours. The insulation material adopts 80 (mm) thick polyurethane foam material for insulation.

3) The outer layer of the tank (insulation layer protection layer) is made of 2mm thick 304L stainless steel plate. The stainless steel outer skin and trunk are beautiful in appearance, the entire car body is beautiful in appearance, scientific in structure, light in weight and good in strength.

4) A vent valve is set on the top of the tank, which can be automatically adjusted to reduce the evaporation loss of the liquid and prevent the tank body from deforming when the positive and negative pressure is generated in the tank.

5) The amount of remaining liquid in the tank is small, which meets the national standard of less than 1%.

6) Optional chillers, flow meters, level gauges, safety locks, leak-proof devices, rock wool insulation, etc.

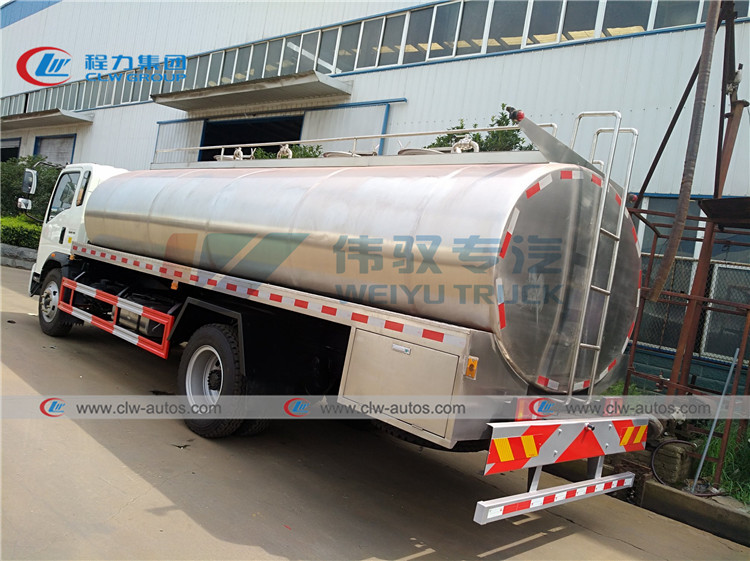

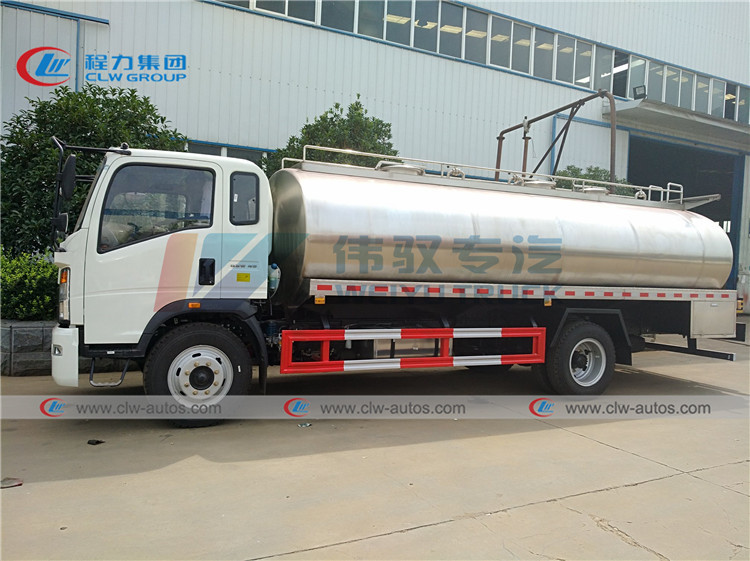

►Reference pictures

15000L HOWO 10T 15T SS304-2B Milk Tanker Truck

►Stainless cleaning inlet and outlet of milk

15000L HOWO 10T 15T SS304-2B Milk Tanker Truck

Cab	Left hand drive
Chassis	Brand	Howo
	Drive type	4x2
	Tire Spec.	8.50R20
	Tire Numbers	6
	Transmission	manual
Engine	Model	YC4E160-33
	Horse Power(hp)	160
	Displacement(cc)/ Power(kw)	5900/75
	Emission	Euro 3
Main Parameters	Overall dimension (LWH/mm)	7000x2500x2800
	Wheelbase(mm)	4500
	Axles No.	2
	GVW(kg)	15495
	Curb Weight(kg)	5495
	Rated Payload(kg)	10000
	Approaching/Departure Angle(°)	19/10
	Front/Rear track(mm)	1506/1466
	Front/Rear suspension(mm)	1032/1663
	Max speed(km/h)	90
Tank	Tank Volume(L)	10000
	Tank Material	Stainless 304
	Tank thickness(mm)	Internal	4mm
		External	2mm
	Insulation thickness(mm)	80mm
Equipment	1) PIC cleaning device inside of the tank
	2) Tank Structure: 4mm stainless steel inner tanker , 80mm insulating layer and 2mm stainless steel shell plating.
	3) Food grade pipe system and discharge valve, SMS food grade butterfly valve.

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of milk delivery truck I can order from your company?

A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.

Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?

A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
