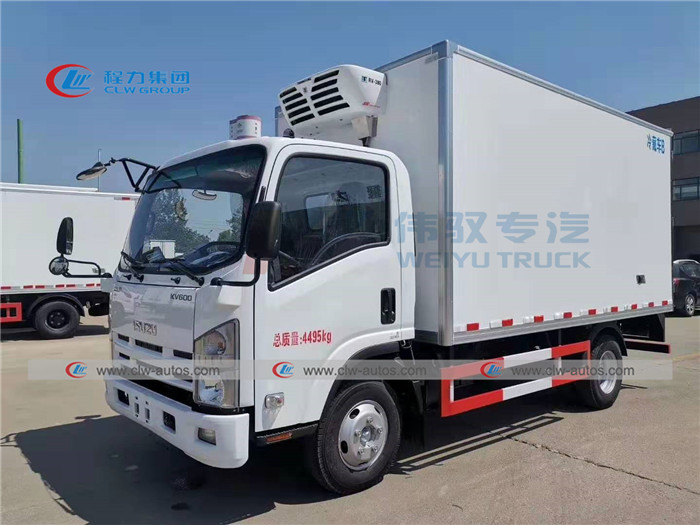

5T ISUZU Refrigerated Truck with Thermo King Van Box

    Buy cheap 5T ISUZU Refrigerated Truck with Thermo King Van Box from wholesalers

    Buy cheap 5T ISUZU Refrigerated Truck with Thermo King Van Box from wholesalers
    • Buy cheap 5T ISUZU Refrigerated Truck with Thermo King Van Box from wholesalers
    • Buy cheap 5T ISUZU Refrigerated Truck with Thermo King Van Box from wholesalers
    • Buy cheap 5T ISUZU Refrigerated Truck with Thermo King Van Box from wholesalers
    • Buy cheap 5T ISUZU Refrigerated Truck with Thermo King Van Box from wholesalers
    • Buy cheap 5T ISUZU Refrigerated Truck with Thermo King Van Box from wholesalers

    5T ISUZU Refrigerated Truck with Thermo King Van Box

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5084cb
    Certification : ISO, CCC,SGS,BV
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30-35 days after received deposit
    • Product Details
    • Company Profile

    5T ISUZU Refrigerated Truck with Thermo King Van Box

    5Ton ISUZU Refrigerated Truck with Thermo King Van Box for Transport Meat & Fish


    Product Description


    1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

    2. Main parts of the truck: Refrigerating unit and control system.

    3. Features of the truck: International chassis brands and refrigerating unit brands for optional.


    Product Specification

    General Technical Parameters
    Overall Dimension6000×2500×3300(mm)Gross Vehicle Weight9000(Kg)
    Curb Weight3900(Kg)Loading Weight5000(Kg)
    Chassis Specification
    Chassis parametersChassis BrandHOWO
    CabinSingle, Left Hand Driving, with A/C
    EngineModelYuchai
    Power116HP
    Emission standardEURO IIII
    Displacement3.76L
    Fuel typeDiesel
    Gearbox5 Forward & 1 Reverse Gear
    Front and Rear Axle load2.4T/7.2T
    Wheel base3800(mm)
    Overhang( Front/Rear)1130/1505(mm)
    Angle(Approach/departure)20/16(°)
    Brake SystemAir brake
    Steering GearPower Assistant
    Tire8.25R16, 6 Pieces with 1 Spare Tire
    Maximum speed90(km/h)
    Superstructure
    VanBox size5100×2300×2100(mm)
    MaterialFiberglass
    Insulating Layer8cm Polyurethane Foam
    BrandTHERMOKING
    Truck refrigeration unitModelKV500
    Applicable temperature (ºC)-18~0
    RemarksPart Optional: Ventilation slot
    Hook
    External power supply
    Side door


    Details for refrigerated van truck



    Optional parts



    Sales Service

    1. Pre-sales Service: Communicate with customers, analyze their needs.
    2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What loading weight refrigerated truck I can order from your company?

    A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.


    Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

    A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.


    Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

    A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

    Product Show
