    4X4 Full Wheel Driving 5T Dongfeng Dump Truck With Middle Tipping

    Ask Lasest Price
    Brand Name : CLW / Chengli
    Model Number : CLW5044
    Certification : CCC,ISO,
    Price : negotiable
    Supply Ability : 600Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    4X4 Full Wheel Driving 5T Dongfeng Dump Truck With Middle Tipping

    4x4 Full Wheel Driving 5Ton Small Dongfeng Dump Truck with Middle Tipping

    Product Description

    1) Truck chassis brand of Dumper Truck: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
    2) Tipping Model of Dumper Truck: Front-tipping, Middle-tipping.
    3) Hydraulic oil cylinder brand of Dumper Truck: International brand HYVA or Chinese famous brand.
    4) High tensile steel for dumper materia of Dumper Truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
    5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.


    Specification of Dumper Truck


    Dimension(L×W ×H)(unloaded)(mm)6300 x 2500 x 3300
    Cargo body size (L×W×H)(mm)4200 x 2100 x 550mm
    Approaching angle/Departure angle(°)19/26
    Overhang(front/rear) (mm)1500/1739
    Wheel base (mm)33000
    Max speed(km/h)75
    Curb weight(kg)(Kg)
    Loading Weight(kg)(Kg)
    EngineModelCY4103
    Fuel typeDiesel
    Displacement (ml)
    Power(kw)
    3450
    88
    EmissionEURO 2
    Fuel tanker capacity(L)150
    TransmissionModel5 Forward & 1 Reverse
    Brake system
    Service brakeair brake
    Parking brakspring energy, compressed air operating on rear wheels
    Steering system
    ModelHydraulic
    Front axleSteering with double T-cross section beam
    Rear axleCast axle housing, central double reduction with differential locks between axles and wheels
    Tyre7.00-16
    Electrical systemBattery12V/165Ah
    Alternator28V-1500kw
    Starter7.5Kw/24V

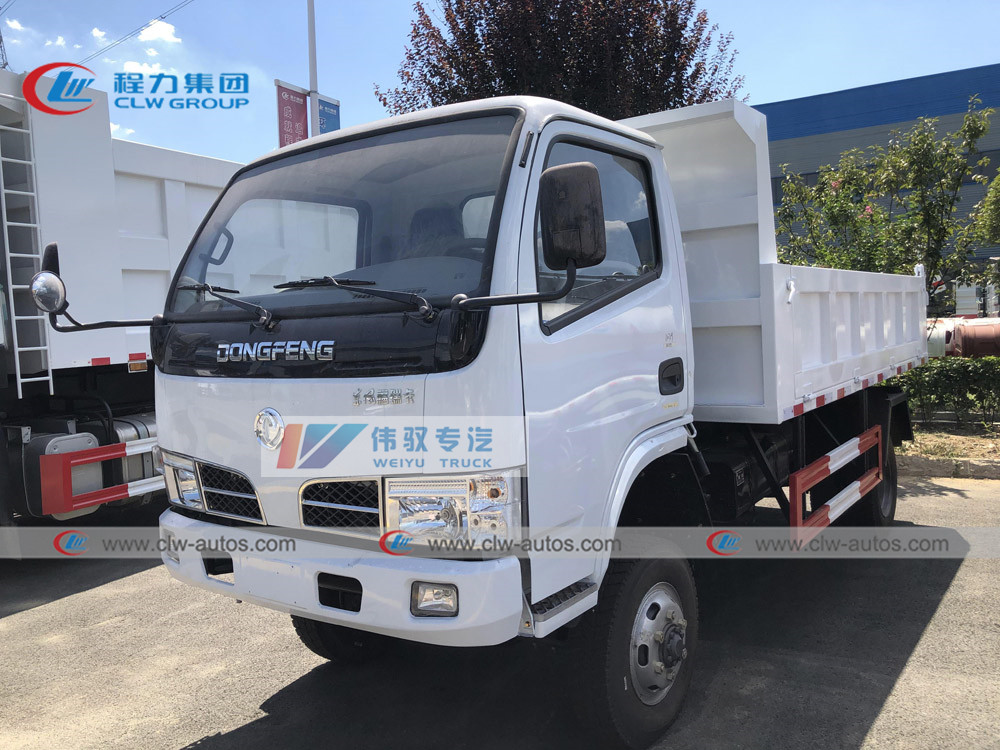

    Product Photos



    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of dump trucks I can order from your company?


    A: There are various sizes and types of dump trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied dump truck to any overseas companies?


    A: Yes,with need of government project,we offered dump trucks to many Africa and south-east Asian countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
