    20000L 60000 Gallon ISUZU Diesel Tanker Trucks For Fuel Station Refilling

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5070
    Certification : CCC,BV,SGS
    Price : 35400USD/unit~51500 USD/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units/month
    Delivery Time : 20~25 days after receiving deposit
    • Product Details
    • Company Profile

    20000L 60000 Gallon ISUZU Diesel Tanker Trucks For Fuel Station Refilling

    20000L 60000Gallon ISUZU Oil Diesel Transport Truck for Fuel Station Refilling


    Product Description
    Brand: ISUZU Diesel Engine, ISUZU Gearbox, 7Ton Front Axle & 16Ton Rear Axle

    • Good Quality Tank with different capacity for choice: 20,000 liter to 26,000Liters
    • API Manhole, Emergency cut-off Valve,
    • Optional Bottom Discharge, Vapor Recovery system.


    Oil Dispenser Truck:

    • Mobile Oil Station Supplying to Trucks & Cars
    • Pump, Dispenser, Filling Guns All in Only Unit
    • PTO Drive High Efficiency Oil Pump
    • Good Quality Oil Dispenser Powered by Truck Electricity

    Tanker Capacity:

    • 20,000 liters to 25,000 liters Per Customer Request.


    Specifications of 10000L Isuzu Fuel Delivery Tank Truck with Censtar Tokheim Oil Dispensing System

    Vehicle Description
    Overall dimensions10200*2500*3430mm
    GVW25000kg
    Curb weight10500kg
    Chassis brandISUZU FVZ
    Tanker Description
    Tank capacity20-35cbm
    Tanker materialCarbon steel
    ThicknessTanker body5mm
    End cover65mm
    Tanker shapeSquare
    Tanker compartment4 compartment (optional: several compartment)
    Standard configuration
    1. 4 set manhole
    2. Equipped with double discharge valve and valve box.
    3. Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox.
    4. Electrostatic conducting tape and double fireextinguishers.
    Optional
    1. Tanker material: aluminum alloy; stainless steel
    2. Chinese standard configuration is available, or other world famous fuel configuration.
    3. The whole set of European configurations for each compartment: European type manhole,over flow probe system, vapor recovery system, bottom valve, API adaptors.
    4. Emergency bottom valve and foldable aluminum handrail.
    5. Others: fuel pump, refueling dispenser, flow meter,dipstick, etc.
    Chassis Description
    Chassis modelQL11409MFR
    CabOne and half row, with A/C
    Wheelbase4350+1300mm
    Tire specification11.00R22.5
    Tire quantity6+1 units
    EngineEngine model6HK1-TCSG40
    Emission levelEuro 4
    Displacement/output7780ml/206kw
    Horse power280hp
    Gear boxModelFAST MLD
    Number of gears9 forward gears& 1 reverse
    Brake systemFull air brake
    AxleFront6.3T
    Rear13T
    Fuel tankerTypeStainless steel tanker, with lockable cap
    Capacity400L

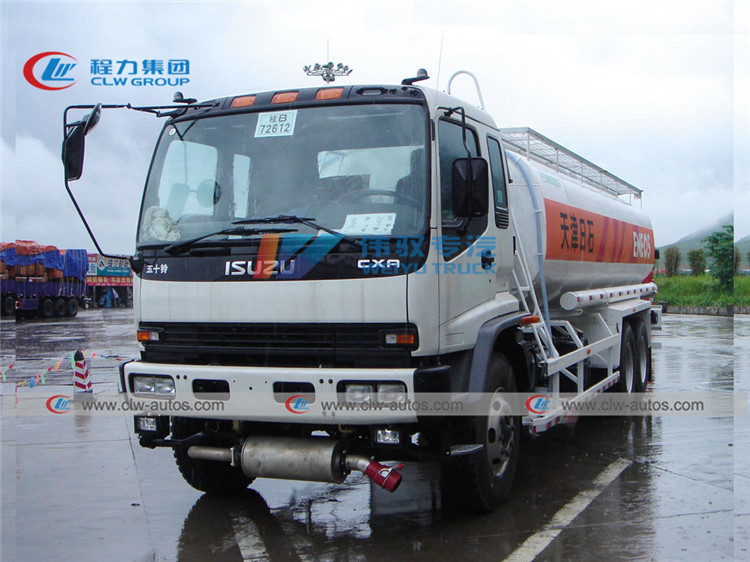

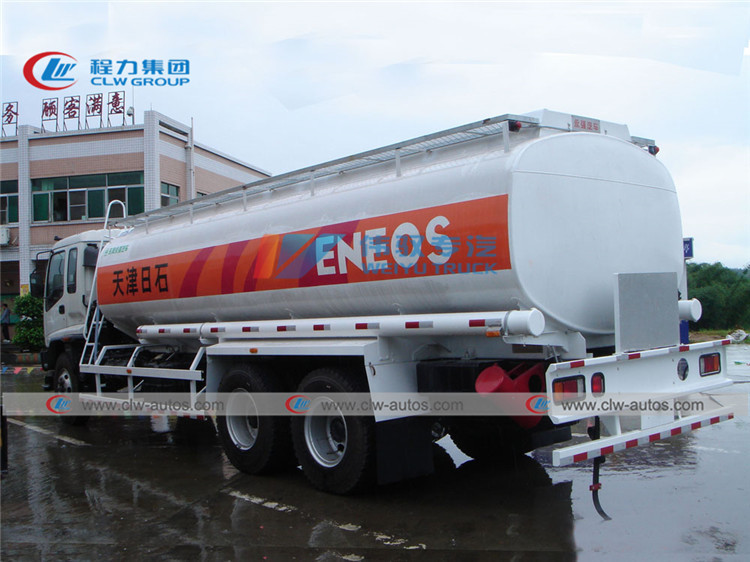

    20000L 60000 Gallon ISUZU Diesel Tanker Trucks For Fuel Station Refilling20000L 60000 Gallon ISUZU Diesel Tanker Trucks For Fuel Station Refilling20000L 60000 Gallon ISUZU Diesel Tanker Trucks For Fuel Station Refilling

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ

    Q1: What kinds of fuel delivery truck I can order from your company?
    A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

    Q2:: Have you supplied fuel delivery truck to any overseas companies?
    A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

    Q3 What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
