Isuzu LHD 18m 20m 22m Aerial Work Platform Truck

    Buy cheap Isuzu LHD 18m 20m 22m Aerial Work Platform Truck from wholesalers

    Buy cheap Isuzu LHD 18m 20m 22m Aerial Work Platform Truck from wholesalers
    • Buy cheap Isuzu LHD 18m 20m 22m Aerial Work Platform Truck from wholesalers
    • Buy cheap Isuzu LHD 18m 20m 22m Aerial Work Platform Truck from wholesalers
    • Buy cheap Isuzu LHD 18m 20m 22m Aerial Work Platform Truck from wholesalers
    • Buy cheap Isuzu LHD 18m 20m 22m Aerial Work Platform Truck from wholesalers
    • Buy cheap Isuzu LHD 18m 20m 22m Aerial Work Platform Truck from wholesalers

    Isuzu LHD 18m 20m 22m Aerial Work Platform Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5120er
    Certification : CCC,ISO,SGS,BV
    Price : negotiable
    Payment Terms : D/A, D/P, Western Union, MoneyGram
    Supply Ability : 600Unit Per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Isuzu LHD 18m 20m 22m Aerial Work Platform Truck

    Japan Brand Isuzu Left Hand Driving18m 20m 22m Man Lift Aerial Platform Working Truck

    Product Description

    1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
    2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
    3. Full Computer Control System with Danger Waring System.
    4. LCD Screen in Both the Bucket and Truck to Display the Working Status.
    5. Rectangular Shape Arms to Increase the Arm Strength.
    6. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
    ParameterOverall dimension (Length*width*high)(mm)9500×2500×31500
    Total Mass(kg)8500
    Kerb Mass(kg)8050
    Wheel base(mm)4175
    Front/rear tract base(mm)1385/1425
    Approach/rear angle27/11
    Max speed(km/h)95
    Fuel typediesel
    EngineEngine typeISUZU
    Displacement standardEURO 4
    ChassisChassis typeisuzu
    Drive system4x2
    Tire type8.25-16
    Number of tire6
    Front/rear axle loading(kg)1015/2025
    passengers2+3
    CabinSingle, with 2 passengers allowed, with Air conditioner
    Special parameterWorking platform rating loading(kg)200
    Working Height(m)22
    Max working radius(m)9.67
    Boom typethree section knuckle arm
    Max hook height(m)9.9
    Loading of hook(kg)800-1000
    Max rotation angle(°)360

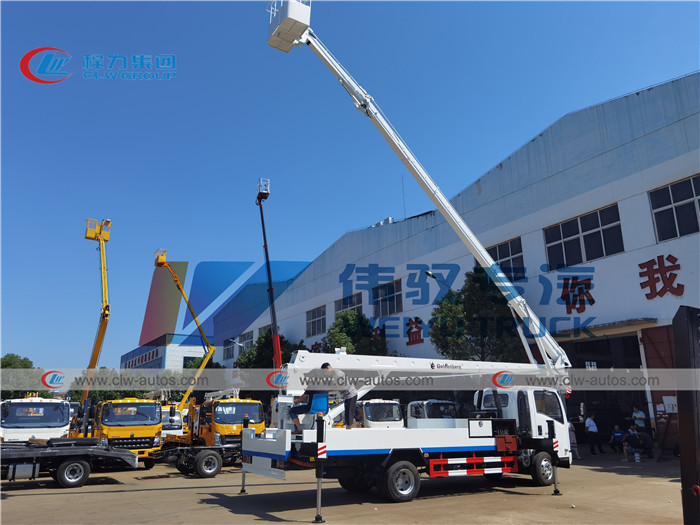

    Reference photos

    Isuzu LHD 18m 20m 22m Aerial Work Platform TruckIsuzu LHD 18m 20m 22m Aerial Work Platform Truck


    Diagram for aerial platform truck



    Quality Isuzu LHD 18m 20m 22m Aerial Work Platform Truck for sale
