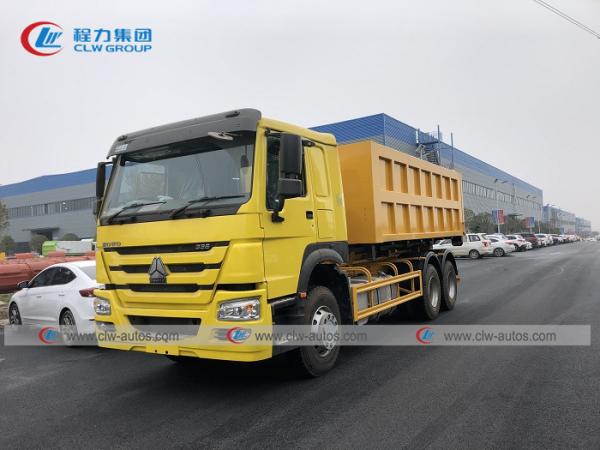

    Howo 20m3 20cbm Hook Lift 16t Waste Removal Trucks

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5107GBL
    Certification : CCC, ISO, BV, SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Units/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    Howo 20m3 20cbm Hook Lift 16t Waste Removal Trucks

    HOWO 20m3 Waste Recycling Truck 20cbm 16t 17t 18tons Hook Lift Refuse Garbage Removal Truck

    Product Description
    1. Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
    2. Hydraulic Control Loading & Unloading System.
    3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
    4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
    5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
    6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

    Product Specification

    Truck modelZZ1257M4641W
    Drive styleLeft or right hand drive
    Drive model6x4
    Dimensions(LxWxH)8865x2500x3290 MM
    Cargo body20 cbm
    Loading weight20ton
    EngineWD615.69, 336hp
    Emission standardEURO II
    Front axleHF7, 7tons loading capacity
    Rear axleHC16, 16tons loading capacity
    TransmissionHW13710, 10 forward & 2 reverse.
    Steering systemZF8118, hydraulic steering with power assistance
    Tires295/80R22.5, 10+1spare
    Upperstructure Specification
    Garbage HopperDimension5600×2300×1500mm
    Standard ConfigurationWith one garbage bin, with hydraulic rear outrigger
    VolumeGround type, 18CBM or 20cbm
    Loading Capacity16tons or 18Tons
    Thickness5mm, Carbon Steel Q235B
    Dump typeHydraulic cylinder lifting and self-loading
    Dump angle≥45°
    Hydraulic system pressure≤16Mpa
    Protective MaterialQ235A Carbon Steel
    Controlling WayThree-way hydraulic control valve
    Other Configuration
    1. Reinforced hydraulic swept-body system, with Double hydraulic cylinder
    2. Swing Arm, Chain.
    3. Hydraulic multi-way valve control.
    OptionsElectronically controlled valve, trash bin type, trash bin quantity, etc.


    Reference Photos


    Main Structure and Diagram


    Main Parts



    Different Types of Garbage Truck




    Sales Service
    1)Pre-sales Service: Communicate with customers, analyze their needs.
    2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

    FAQ

    Q1: What kinds of garbage truck I can order from your company?

    A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.


    Q2: What is your production standard of garbage truck products?

    A: China GB local standard.


    Q3: Can we adopts International brand fuel pump for garbage truck?

    A: Sure, we already cooperated with many international brand supplier.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
