    Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5310TFCZ3
    Certification : ISO, CCC
    Price : 28520 usd/unit~125660 usd/unit
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 300units/month
    Delivery Time : Within 60days after received advance payments
    • Product Details
    • Company Profile

    Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket

    Description--Synchronous chip sealer,also called synchronous gravel sealing truck refers to the simultaneous spraying of asphalt binder and sprinkling of aggregate,so that the most adequate contact between asphalt binder and aggregate can be achieved.
    --Compared with ordinary crushed stone sealing layer truck or machine, Synchronous chip sealer shorts the time interval between spraying binder and sprinkling aggregate, so that the aggregate particles can be better implanted into the binder, so as to obtain more covering area.
    --It is easier to ensure a stable proportion between the binder and the stone chip, improve the productivity, reduce the mechanical configuration and reduce the construction cost.
    --Better anti-skid and anti-seepage water performance,effectively cure the hazards such as oil deficiency, grain dropping, slight mesh cracking, wheel rutting and subsidence.
    --Type of bitumen:Hot bitumen, hot modified bitumen, diluted bitumen, emulsified bitumen, rubber modified bitumen(with viscosity Haake 190ºC,1500~2000Pa.s;spaying temperature 200~210 ºC,spraying width 4000mm)

    Why do you choose CLW group Synchronous chip sealer?

    Accurate spraying amount, perfect realization of asphalt spraying three overlapping, good uniformity.
    Intelligent control of sprinkling (sprinkling), real-time monitoring of sprinkling quantity and speed, closed-loop control
    Full computer touch screen operation, equipped with video monitoring system, can observe the whole working process at any time;
    Reliable performance and convenient operation
    Zero-start in-line spraying (strong spraying system and asphaltene in-line spraying system)
    The control system adopts modular design (low failure rate, quick and easy maintenance).
    The most effective heating system and circulating heat preservation system ensure the unimpeded flow of pipes and nozzles without diesel cleaning
    Equipped with a flexible asphalt hand spray system, it can spray asphalt on special parts of the road
    The nozzle and the feed door are fully pneumatic, and each feed door and the feed door are individually controlled by the computer
    The width of the cloth can be adjusted at any time during the process of spreading
    With self-suction efflux function, it can add self-discharge asphalt to improve work efficiency
    Equipped with a system, in case of failure of the main control system, can manually sprinkle (scatter) cloth
    Compact structure, beautiful appearance, flexible u-turn at high speed.


    Specifications
    Truck Specification
    CabHW76 cab, with power steering,with A/C
    Driving Type8*4
    Max Speed (km/h)80
    Overall dimension(mm)12000*2500*3850
    GVW( kg)31000
    F/R overhang (mm)1500/1945, 1920
    Approach/Departure Angel16/23
    Tire295/80R22.5
    ClutchSingle-plate dry diaphragm spring clutch
    SteeringHydraulic steering with power assistance
    BridgeFront axleHF7
    Rear axleST16
    EngineModelWD615.69 / EURO II
    Fuel TypeDiesel fuel
    TypeWater-cooled four-stroke,, direct injection, turbocharged
    Exhaust(ml)9726
    Max output power/rotate speed (hp /rpm )336
    Braking systemService BrakeAir over hydraulic dual circuit system
    Park BrakeMechanical, internal expanding acting on transfer output shaf
    Eletric system24v
    Upper-Body specification
    Capacity9m3 Asphalt tank + 14m3 gravel tank
    Emulsified bitumen, hot bitumen (rubber modified bitumen has to use imported configurations)
    Asphalt pumpModelQGB950
    Discharge(L/min)950
    Distribution width measurement(mm)4000
    BurnerG20 (from Italy)
    Control methodAutomatic controlled one by one (32 intelligent nozzle)
    Heating ModelThermal fuel automatic heating
    Conducting systemGermany STW module, computer screen control in the cab

    Reference picture

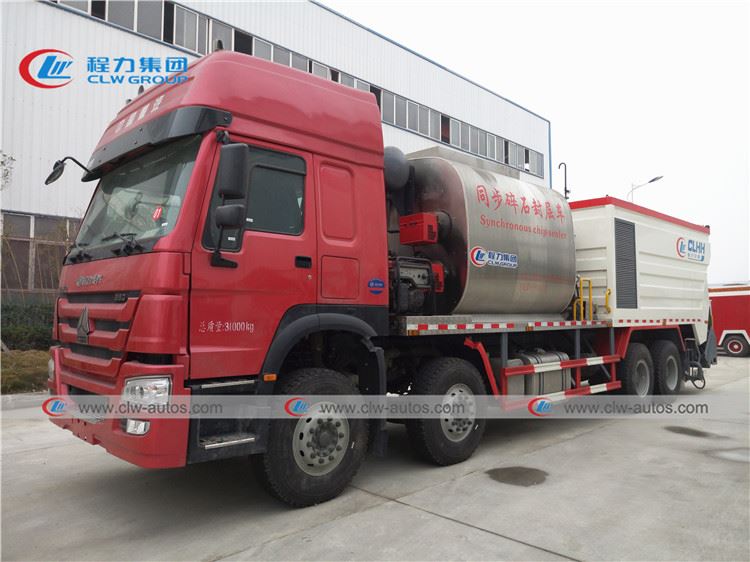

    ★Howo 8X4 Synchronous chip sealer

    Synchronous Chip Sealer Truck12

    ★Asphalt sprayer nozzles of Howo 8X4 Synchronous chip sealer

    Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket

    ★Asphalt storage tank of Howo 8X4 Synchronous chip sealer

    Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket

    Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket

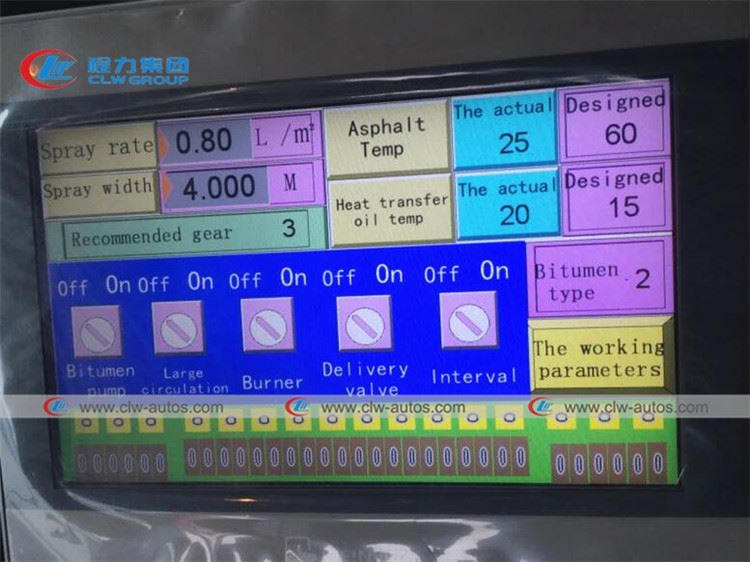

    ★English control screen of Howo 8X4 Synchronous chip sealer for overseas customer

    Howo 8X4 371HP 8000 Liters Asphalt Tank 12CBM Gravel Bucket


    ★Working of howo Synchronous chip sealer

    Synchronous Chip Sealer Truck18


    Key word: Synchronous Chip Sealer Truck,Synchronous Chip Sealer,howo Synchronous Chip Sealer,road pavement truck,aspahlt distribution truck,china Synchronous Chip Sealer,chip sealer truck,asphalt paver
