    Tri Axle 1300 Gallons 50000L Oil Delivery Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW9401WYT
    Certification : ISO, CCC
    Price : 12250-25560USD/UNIT
    Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 300units/month
    Delivery Time : Within 30days after received advance payments
    • Product Details
    • Company Profile

    Tri Axle 1300 Gallons 50000L Oil Delivery Truck

    Function

    --Fuel Transport Truck Trailer(also called fuel transport trailer,fuel truck trailer,oil tanker semi-trailer,oil truck trailer,fuel tanker trailer,crude oil tanker trailer,oil bowser semi trailer,ragid oil tanker trailer,petrol transport truck,diesel delivery tanker trailer) is a semi-trailer tanker connected with tractor truck. Compared with ordinary small tanker truck, semitrailer tanker can effectively improve the transport efficiency in same time.


    In the same tonnage loading,oil tanker trailer reduce the transportation cost and save fuel consumption.


    -- Fuel Transport Truck Trailer can be divided into various types as follows,

    ★carbon steel Fuel Transport Truck Trailer,aluminum alloy Fuel Transport Truck Trailer,stainless steel Fuel Transport Truck Trailer;

    According to tank size,there are 20,000liters to 65,000liters Fuel Transport Truck Trailer for option;

    ★According to axles,there are double axle Fuel Transport Truck Trailer ,2-axle Fuel Transport Truck Trailer ,3-axle Fuel Transport Truck Trailer ,tri-axle Fuel Transport Truck Trailer


    Feature

    --High quality carbon steel from china top steel factory 4mm,5mm or 6mm tanker trailer thickness;

    --Production strictly following china standard,ADR standard oil tanker trailer customized for saudi arabia is also optional.

    --Oil tanker trailer shape is optional for oval and squareround oil tanker trailer ;

    --Compartment no. is customized,which can load different types of oil or fuel;

    --Several baffles inside tanker trailer,a through hole at the bottom to reduce the impact of oil in the tank and improve the strength of the tank;

    --Reliable quality axle brand BPW,FUWA,L1


    Pictures of 50000liters Fuel Transport Truck Trailer

    Tri Axle 1300 Gallons 50000L Oil Delivery Truck

    Tri Axle 1300 Gallons 50000L Oil Delivery Truck

    Tri Axle 1300 Gallons 50000L Oil Delivery Truck

    Tri Axle 1300 Gallons 50000L Oil Delivery Truck


    Specification of 50000liters Fuel Transport Truck Trailer
    Main Dimensions
    Overall Length12500mm
    Overall Width2500mm
    Overall Height3550mm
    Tare WeightAround 11,000KGS
    Loading Capacity50m3
    Photo only for reference, final product can be made according to exact requirements
    Tank Body
    ShapeMono block Cylinder
    Total Volume(m3)50
    Tanker Body Material5mm carbon steel
    End plate6mm carbon steel
    Baffle2 Nos,4 mm carbon steel
    Lifting LadderIncluding Top walkway and backside steel material
    Manhole cover3 manhole covers, ∮500mm 3 sets with 3 breather valves
    Bottom Valve3 sets of API Pneumatic Bottom Valve
    Top Safety Rail1 Set,Pneumatic control at two side
    Discharging valve3 set ∮100mm discharging valves,optional for 3”
    No.of Compartment3
    Discharging Pipe4”rubber hose, 2 pc, 6m long
    Chassis
    Main BeamsSpecial design I beam, connected by bolts and nuts with tanker body
    Axle3 FUWA axles,13 Tons
    Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
    King PinJOST brand 2” bolt-in king pin
    Suspensionheavy duty mechanical suspension
    Pneumatic Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
    Wheel rim9.00-22.5 wheel rim, 13 pieces including one spare
    Tire12R22.5 tubeless tire including one spare tire, 13 pieces
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
    AccessoriesOne standard tool box

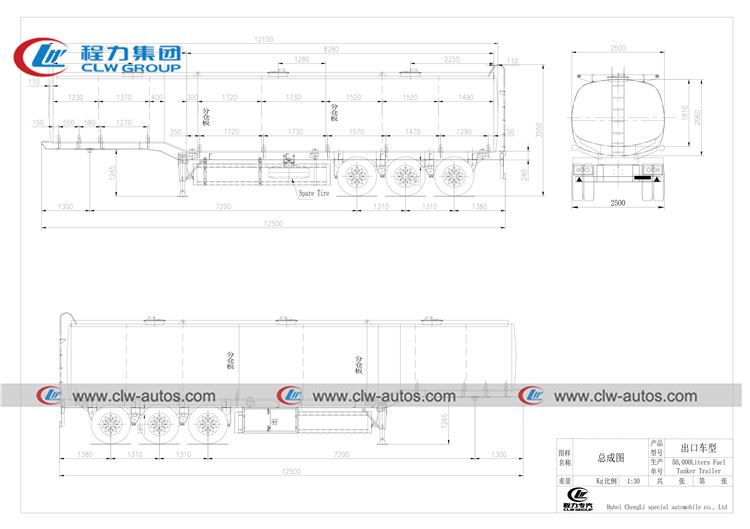

    Technical Drawing of 50000liters Fuel Transport Truck Trailer50k liters oil tanker trailer16

    FAQ★How can I get a sample of 50000liters Fuel Transport Truck Trailer to check your quality?Answer:Due to the oil tanker trailer size,sample can not be sent to your country.But we have supplied a lot of oil tanker trailers to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
    How long can I expect to get the 50000liters Fuel Transport Truck Trailer?Answer:20~30 working days after receiving deposit at account.
    ★What's your payment term?
    Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
    ★When can I get the price of 50000liters Fuel Transport Truck Trailer?
    Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.

    ★Does your 50000liters Fuel Transport Truck Trailer have warranty service? How long is the warranty period?

    Answer:Yes,one year free warranty for tanker body,axles.
    Key word: 50000liters Fuel Transport Truck Trailer,50k liter oil tanker trailer,oil tanker trailer,50000l oil tanker trailer,50000liters oil tanker trailer,fuel tanker trailer,fuel tanker semi trailer,oil tank semi trailer,crude oil tanker trailer,heavy oil tanker trailer
