    98hp ISUZU 22 Meters Aerial Bucket Truck With Hydraulic Cage

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW51120WYT
    Certification : CCC ISO
    Price : 11250-28520USD/UNIT
    Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 300units/month
    Delivery Time : Within 30days after received advance payments
    • Product Details
    • Company Profile

    98hp ISUZU 22 Meters Aerial Bucket Truck With Hydraulic Cage

    Function

    --Aerial bucket truck(also called high platform operation truck,bucket truck,aerial lifts,articulated telescopic aerial lifts,aerial platform truck,cherry picker,aerial work platform truck) is used wdely used in electric power, street lamp, municipal, garden, communication, airport, build (repair) ship, traffic, advertising, photography and other aerial work fields.usually it is used to bridge maintenance,lamp maintenance,electric power maintenance with essential fiberglass insulation bucket.


    --Aerial bucket truck can be divided into various types as follows,

    1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc aerial bucket truck;

    2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 aerial bucket truck;

    3) according to lifting height:there are 11meters,12meters,14meters,16meters,18meters,20meters,22meters aerial bucket truck;

    4) according to lifting frame work,there are telescopic(sraight-arm) or folding(kunckle arm) or vertical lift aerial bucket truck;


    Feature

    ---- ISUZU chassis ensures perfect driving performance

    ---- ISUZU engine, super powerful, no overhaul within 100,000 km.

    ---- 360 ° arm rotation;

    ----Optional for fiberglass insulation bucket less than 230V

    ---- Easy operation and easy maintenance.


    Pictures

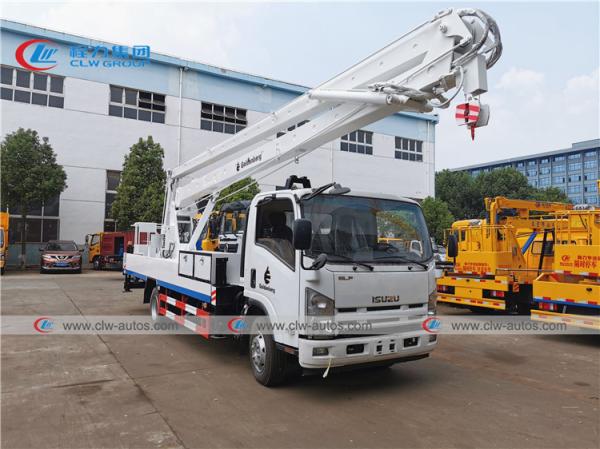

    98hp ISUZU 22 Meters Aerial Bucket Truck With Hydraulic Cage98hp ISUZU 22 Meters Aerial Bucket Truck With Hydraulic Cage98hp ISUZU 22 Meters Aerial Bucket Truck With Hydraulic Cage


    Specification
    ConditionBrand new/left hand drive /4X2
    ChassisBrandISUZU
    Wheelbase(mm)4175 or 4475mm
    Dimensions(mm)7000X2500X2750mm
    Front/Rear Axle loading(kg)4000/7000 kg
    Wheel track (front/rear) (mm)1160/1545 mm
    Front/Rear overhang(mm)1605/1555 mm
    Approach/Departure angle(°)18/18
    Max. driving speed(km/h)95
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity6 pcs with one spare tire
    Specifications8.25R16
    TransmissionManual type MLD,6 Forwards and 1reverse
    Cabisuzu 700 cabin,left Hand Driving,With A/C

    Engine

    Model

    4hk1-tcg40 or 4hk1-tc51

    4-stroke direct injection , 4-cylinder in-line with water cooling, inter-cooling

    Power190HP
    Emission standardEURO IV,V
    Displacement5193(ml)
    Fuel typeDiesel
    Upper body
    Working range

    Max. Working platform height 22 meters;

    Bucket

    Rated loading capacity:200kg;

    Safety voltage 230V;

    Lading leg

    Model: H-type landing leg;

    No.: 4 Nos;

    Control method: Separate adjustable or linked adjustable;

    Lateral span:2680 mm;

    Longitudinal span:3050mm.

    Hook

    Max. Craning weight 1000kg,800kg is safety;

    Max. Craning height:7.2meters

    Operating systemTwo sets of operating system.operating above truck chassis or in tool box;
    walking boardSteel tool box and anti-slip checked plate working board
    Main boom3-section with Q345 structural low alloy steel
    RotationDouble direct 360 degree rotation
    Safety equipmentLeg oil cylinder with hydraulic lock,Working arm cylinder with two - way balancing valve
    Main accessories1 No of Main boom oil cylinder(CLW brand)
    1 No of second boom oil cylinder(CLW brand)
    1 No of third boom oil cylinder(CLW brand)
    2 Nos of crosswise oil cylinder(CLW brand)
    4 Nos of landing legs oil cylinders(CLW brand)
    1 set of hydraulic pump
    2 sets of hydraulic motors
    3 sets of hydraulic mult-way valves;
    1 set of two-way balance valve;
    Speed-reducer
    Pressure gauge
    Hydraulic lock

    72 pcs of φ8 High pressure oil pipeline;

    20 pcs of φ13 High pressure oil pipeline;
