58.5cbm 58500 Liters 28mt Propane Tanker Truck

    Buy cheap 58.5cbm 58500 Liters 28mt Propane Tanker Truck from wholesalers

    Buy cheap 58.5cbm 58500 Liters 28mt Propane Tanker Truck from wholesalers
    • Buy cheap 58.5cbm 58500 Liters 28mt Propane Tanker Truck from wholesalers
    • Buy cheap 58.5cbm 58500 Liters 28mt Propane Tanker Truck from wholesalers
    • Buy cheap 58.5cbm 58500 Liters 28mt Propane Tanker Truck from wholesalers
    • Buy cheap 58.5cbm 58500 Liters 28mt Propane Tanker Truck from wholesalers
    • Buy cheap 58.5cbm 58500 Liters 28mt Propane Tanker Truck from wholesalers

    58.5cbm 58500 Liters 28mt Propane Tanker Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW9401QYSTA
    Certification : CCC ISO ASME
    Price : 20150 USD/UNIT~45620 USD/UNIT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300units/month
    Delivery Time : Within 30days after received advance payments
    • Product Details
    • Company Profile

    58.5cbm 58500 Liters 28mt Propane Tanker Truck

    Function

    --Propane transport truck(also called cooking gas tanker trailer,gas transport truck,lpg bridger truck,lpg road tanker,lpg truck trailer,25tons lpg truck,25mt lpg truck,50m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer) is used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.

    --Optional for tank size from 40,000litera to 61900liters,from 18tons to 30tons,from 18mt to 30mt.

    --Design standard of Propane transport truck: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

    --Optional accessories of Propane transport truck :ROCHESTER level gauge,flow meter,sun shelter,lpg pump,lpg dispenser machine,15meters filling hose.

    --Material: Q345R,Q370R,Q420R;

    --Optional for axle brands:BPW,FUWA,L1 and so on.


    Feature

    --high quality steel specialled for pressure vessel production from chinese top steel company;

    --Reliable design for rough road with reliable performance;

    --X-ray testing for every welding line of tank body;

    --Hydraulic testing for every lpg tanker;

    --Heat treatment 600~640 ℃ to relief stress;

    --Gas leakage test;

    --customized painting and logo design;


    Reference picture

    Rear view of Propane transport truck

    58.5cbm 58500 Liters 28mt Propane Tanker Truck58.5cbm 58500 Liters 28mt Propane Tanker Truck58.5cbm 58500 Liters 28mt Propane Tanker Truck

    Drawing

    25tons lpg truck0

    Specification
    Tanker Essential Information
    Volume of Tank (cbm)58.5
    Overall Dimensions(L*W*H)(mm)12740*2480*3800
    Tank Dimensions(Inner Diameter*thickness*Length)2300*12*12372
    Estimated Tare Weight (kg)15300
    Payload(kg)20832
    Total Weight(kg)36132
    Wheelbase(mm)6800+1310+1310
    Shell of Tanker
    ProductsLiquefied Petroleum Gas (propane)
    Fluid PropertyFlammable
    Design Temperature(℃)-19℃~50℃
    Design Pressure(MPa)1.61
    Corrosion Allowance(mm)1.00
    Weld Joint Factor1
    Major Materials of Bearing PressureTanker body:Q345,12mm,
    End plate:Q345R,12mm,double ellipse
    Main beam:16Mn
    Detection
    Heat TreatmentOverall treatment in a furnace,600℃ to 640 ℃
    Flaw Detection100% Flaw detection
    Hydraulic Test(MPa)2.21
    Manhole (As Customer’s Requirement)
    Quantity1;on top,DN450
    Safety Valve(As Customer’s Requirement)
    Quantity2
    LocationOn the top of tanker
    SizeDN50 or As Customer’s Requirement

    Level Gauge

    3*13T Fuwa

    TypeManuel rotation type
    LocationAt the rear of the end plate
    Running System
    Axles3*12T FUWA brand
    Tire12R22.5 Tubeless tire ,12 pcs with one spare tire
    Landing legJOST
    King Pin#50 or #90

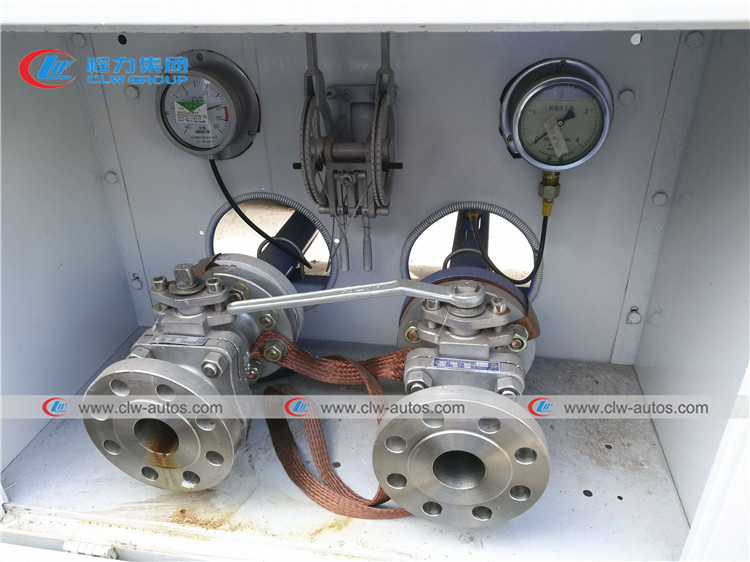

    Control System
    Emergency Cut-off Valves2 pcs,1 for liquid phase and 1 for vapour phase
    Ball Valve4pcs,can be discharged and loading at two sides.
    Thermometer1
    Pressure Gauge1
    Accessories
    Tool Box2
    Wheel Carrier1
    Fire Extinguisher2
    Fender2
    PaintAs Customer’s Requirement
    Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels
    Key word: propane gas tanker,propane tanker trailer,lpg semi-trailer,lpg bridger truck,lpg road tanker,lpg truck trailer,28tons lpg truck,28mt lpg truck,60m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer.
