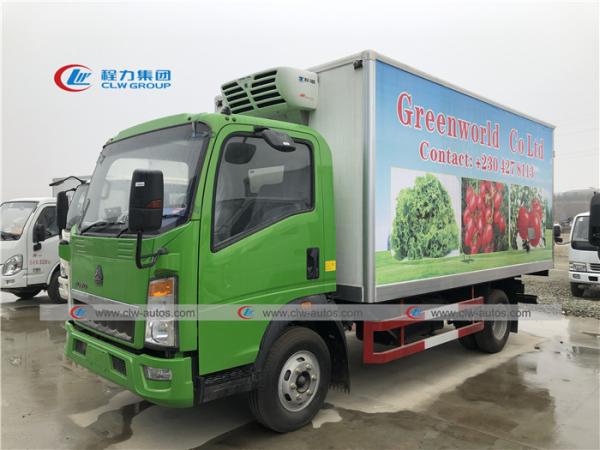

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck from wholesalers

    Buy cheap SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck from wholesalers
    • Buy cheap SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck from wholesalers
    • Buy cheap SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck from wholesalers
    • Buy cheap SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck from wholesalers
    • Buy cheap SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck from wholesalers
    • Buy cheap SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck from wholesalers

    SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5084cb
    Certification : ISO, CCC,SGS,BV
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30-35 days after received deposit
    • Product Details
    • Company Profile

    SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

    SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck


    Product Description


    1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

    2. Main parts of the truck: Refrigerating unit and control system.

    3. Features of the truck: International chassis brands and refrigerating unit brands for optional.


    Product Specification

    Condition

    New condition/Left hand drive/4x2/with A/C

    Chassis

    Brand

    HOWO

    Curb weight(kg)

    2740 kg

    Payload(kg)

    5000kg

    Wheelbase(mm)

    3360 mm

    Dimensions(mm)

    5995*2500*3250 mm for 5Tons

    6980X2500X3250 mm for 7Tons

    Front/Rear axle loading(kg)

    2400/4200 kg for 5Tons;

    Front/Rear overhang(mm)

    1160/1545 mm

    Wheel track (front/rear) (mm)

    1605/1555 mm

    Approach/Departure angle(°)

    18/18

    Max. driving speed(km/h)

    90 km/h

    Clutch

    Reinforced diaphragm clutch

    Brakes

    Hydraulic oil brake

    Steering Gear

    Power steering, hydraulic steering with power assistance

    Tire

    Quantity

    6pcs with one spare tire

    Specifications

    7.00R16 for 5Tons;

    Transmission

    Manual type, WLY6T46,6 Forwards and 1 reverse

    Engine

    Brand

    Yunnei Engine

    Model

    YN4102QBZL

    Fuel type

    Diesel

    Displacement(ml)

    3760ml

    Power(kw)

    85 kw

    Horsepower(HP)

    116 HP

    Maximum torque(N.m)

    220 N.m

    Maximum torque speed(rpm)

    1700 rpm

    Minimum fuel consumption under full load

    224g/kW.h

    Cylinder number

    4 pcs

    Emission standard

    Euro III

    Upper Refrigerated Box

    Box of

    1. Box Size of 5Tons: 4100*1740*1750 mm;

    2. Box Material: glass epoxy in the surface; Foam in the middle .

    3.Thickness of side ,top ,front ,rear 80mm;

    4.Inside bottom: Aluminum pattern plate

    Refrigerating System

    1. Working temperature range:-18-0

    2. Refrigerating unit brand and model:

    USA brand Thermo King KV300 for 5Tons;

    Remarks

    Color is optional



    Details for refrigerated van truck



    Optional parts



    Sales Service

    1. Pre-sales Service: Communicate with customers, analyze their needs.
    2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What loading weight refrigerated truck I can order from your company?

    A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.


    Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

    A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.


    Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

    A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

    Product Show
