    Isuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo Box

    Ask Lasest Price
    Brand Name : CLW /Weiyu Brand
    Model Number : CLW5090JSQ
    Certification : CCC, ISO
    Price : negotiable
    Supply Ability : 350 units/month
    Delivery Time : 10-20 Work Days
    • Product Details
    • Company Profile

    Isuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo Box

    ISUZU GIGA 16Ton Straight Boom Arm Crane Truck for heavy duty equipments delivery

    Product Description
    1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
    2. Main parts: Crane. (Different lifting capacities match different chassis.)
    3. Advantage: One truck combines the functions of crane and dump truck.

    Product Specification

    eneral Technical Parameters
    Overall Dimension11980×2500×3980 (mm)
    Gross Vehicle Weight24900(Kg)
    Curb Weight15800(Kg)
    Chassis Specification
    Chassis BrandISUZU
    Drive model8*4
    CabinDouble, Left Hand Driving, with air conditional
    Number of Passengers3
    EngineModel4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
    Power
    231KW/315HP
    Emission standardEURO 4
    Displacement8300(ml)
    Fuel typeDiesel
    Gearbox9Forwards & 1Reverse
    Brake SystemAir break
    Wheel Base1850+4600+1400 mm
    Front/Rear Axle Loading8000/11500(Kg)
    Approach/Departure Angle23/12(°)
    Overhang1250/3545(mm)
    Tire11.00R20
    Max Driving Speed90(km/h)
    Upperstructure Specification
    Cargo BodyDimension8600×2300×550(mm)
    MaterialQ235 carbon steel
    Cargo ThicknessSide 1.5mm, Bottom 2.5mm
    Working SystemBoom TypeStraight 4-Arm telescopic boom
    CraneCrane BrandXCMG or SANY or CLW
    Range of Sprayer30m
    Max Lifting Moment25(T.M)
    Max Lifting Capacity16000(kg)
    Max lifting height12(m)
    Rotation angle360(°)
    Installation space1150(mm)
    Recommented power30(kw)
    Maximum working pressure26(Mpa)
    Max Flow63(l/min)
    Crane weight3800(kg)
    Oil tank capacity160(L)
    LegLeg typeH type
    Leg Span2.28-5.9(m)
    Hydraulic systemPressure18(M pa)
    Capacity70(l)
    Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
    OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

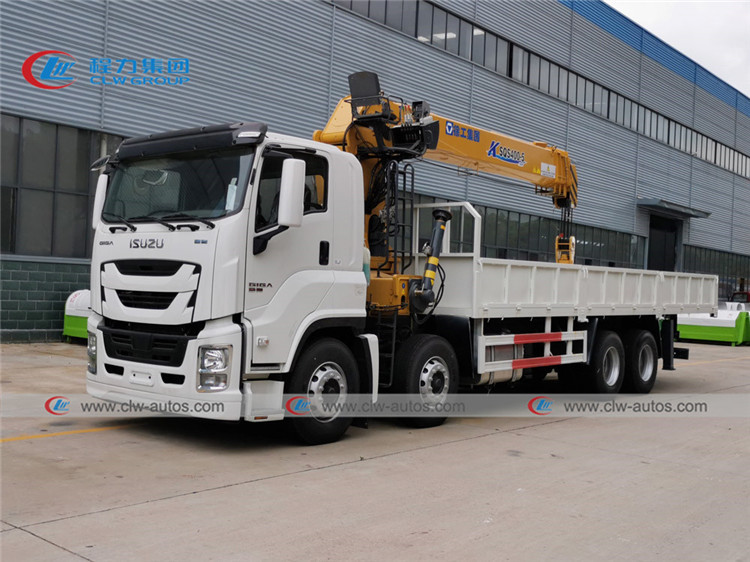

    Truck Photos:

    Isuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo BoxIsuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo BoxIsuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo Box
