    50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge

    Ask Lasest Price
    Brand Name : CLW /Weiyu Brand
    Model Number : CLW5020XLCS5
    Certification : CCC, ISO
    Price : negotiable
    Supply Ability : 500 units/month
    • Product Details
    • Company Profile

    50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge

    50CBM 20Ton Propane Gas Transport Tank Semi Trailer with Rochester level Gauge


    Description:
    1. Tank Design Standard of 25tons lpg tanker trailer : Chinese GB Standard or American ASME Standard.


    2. Factory direct exporting, with high quality and lower price.


    3. We have the biggest LPG trailer and LPG truck in the world:
    a. we have the biggest LPG trailer in the world, the max. volume is 61.9 cbm; low transport costs, more profit.
    b. we have the biggest 8x4 LPG truck in China, the max volume is 37cbm;
    c. our LPG storage tank ranged from 5cbm to 200cbm. both on the floor ones and in the ground ones.
    d. we have mobile filling station from capacity 5cbm to 120cbm.


    Specification

    Tanker Essential Information
    Volume of Tank (cbm)49.6
    Overall Dimensions(L*W*H)(mm)12740*2480*3800
    Tank Dimensions(Inner Diameter*thickness*Length)2300*12*12354
    Estimated Tare Weight (kg)15300
    Payload(kg)20832
    Total Weight(kg)36132
    Wheelbase(mm)6800+1320+1320
    Shell of Tanker
    ProductsLiquefied Petroleum Gas (propane)
    Fluid PropertyFlammable
    Design Temperature(ºC)50ºC
    Design Pressure(MPa)1.61
    Corrosion Allowance(mm)1.00
    Weld Joint Factor1
    Major Materials of Bearing PressureTanker body:Q345,12mm,
    End plate:Q345R,12mm
    Main beam:16Mn
    Detection
    Heat TreatmentOverall treatment in a furnace,600ºC to 640 ºC
    Flaw Detection100% Flaw detection
    Test Pressure(MPa)1.61
    Hydraulic Test(MPa)2.1
    Magnaflux InspectionAim at welding place that flaw detection can not cover
    Manhole (As Customer's Requirement)
    Quantity1;on top
    SizeDN450
    Safety Valve(As Customer's Requirement)
    Quantity2
    LocationOn the top of tanker
    SizeDN80
    Level Gauge
    TypeManuel Switch type
    LocationAt the rear of the end dish
    Running System
    Axles3*13T BPW
    Tire12R22.5 Tubeless tire ,8 with one spare tire
    Landing legJOST
    King Pin#50 or #90
    Control System
    Emergency Cut-off Valves2 or 3
    Ball Valve4 or 6
    Liquid Gauge1
    Pressure Indicating Thermometer1
    Pressure Gage1

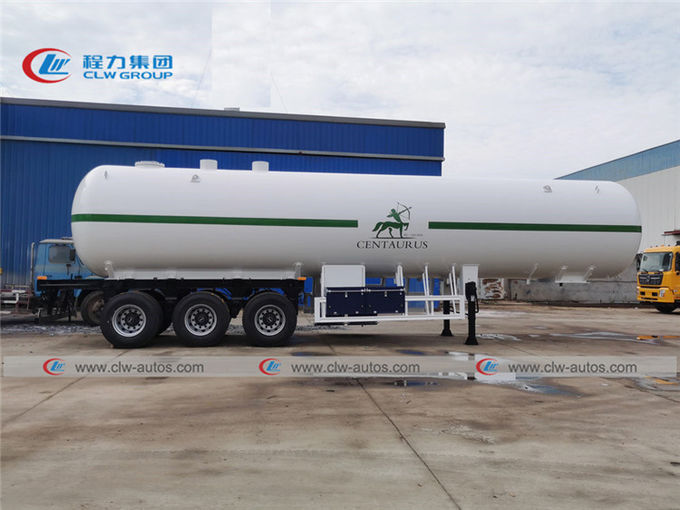

    Trailer Photos

    50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge

    50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
