    6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform

    Ask Lasest Price
    Brand Name : CLW /Weiyu Brand
    Model Number : CLW5168JSQ
    Certification : CCC, ISO
    Price : negotiable
    Supply Ability : 350 units/month
    Delivery Time : 10-20 Work Days
    • Product Details
    • Company Profile

    6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform

    1Ton Platform Lifting 6Ton Dongfeng Kingrun Crane Truck in Telescopic Straight Arm


    Major Specification:

    1. Truck Brand: Dongfeng Brand, 170HPCummins Engine, FAST Gearbox, 9.00R20 Tire

    2. Crane: 6Ton Crane, Straight arm, CLW Brand or XCMG, SANY Plafinger.

    3. Box: 5600x2200x550m, Carbon Steel, 2mm side, 3mm bottom

    4. Lifting Platform: Hydraulic Control,1Ton to 2Ton Lifting Capacity.

    5. Fuction: equipment delivery, electrical pole delivery, etc


    Product Specification

    General Description
    Overall Dimension(mm)8600×2490×3650Cargo body size5600*2200*550
    Gross WeightAppro* 12000KgDriving type4*2, left hand drive
    Curb weightAppro* 6120KgRated loading capacity kg6000
    Wheel base (mm)3950 mmAxle number2
    Approaching/Departure Angle(°)23/20(°)F/R Axle load(kg)3600/7650
    Passengers in cab3Maximum speed(km/h)90
    Number of Tires6 (1 spare piece)Tyre type9.00-20
    Front/Rear suspension(mm)1250/2650Front/Rear track base (mm)1920/1860
    Transmission6 Forward with 1 Reverse, manualFuel typeDiesel oil

    Engine parameters
    BrandCumminsModelB170-33
    Displacement (L)5.9 LEmission StandardEURO III
    Max Power Output125 kwHorse power170HP
    Number of cylinders6Cylinder spread patternIn-line

    Intake type

    In line

    Rated rotation(rpm)
    2500
    Crane Model(5 Ton 3 telescopic arms crane)SQ5SA2Unit
    Max Lifting Capacity5000kg
    Max Lifting Moment12.5T.M
    Recommended Power20KW
    Recommended Hydraulic Flow40L/min
    Rated hydraulic Pressure20MPa
    Oil tank capacity100L
    Crane Weight2200kg
    Installation Space900mm
    Rotation Angle400°°
    lifting capacity table
    Working radius(m)2.53.956.38.65
    Rated loading(kg)5000225014501000

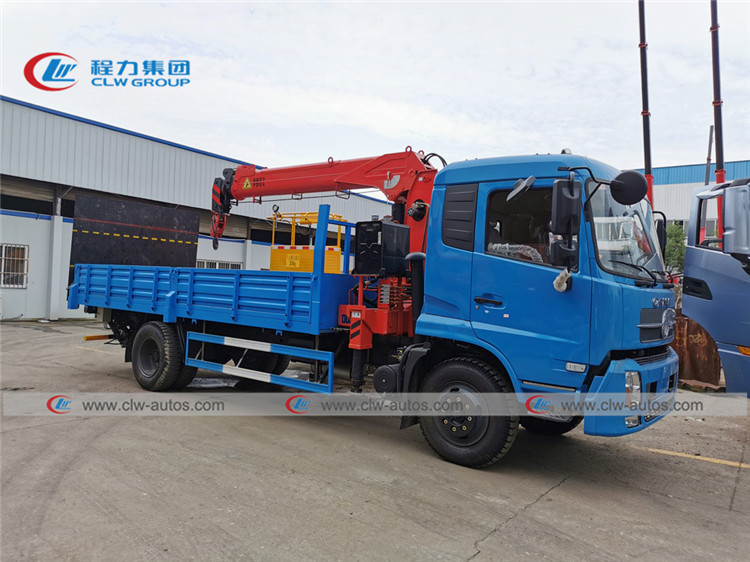

    Truck Photos:


    6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform
