Heavy Duty Shacman 8X4 30T Wrecker Tow Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW53115WYT
Certification :	CCC,ISO
Price :	79650 usd/unit~10860 usd/unit
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300 units/per month
Delivery Time :	30~40 working days

Add to Cart

Product Details
Company Profile

Heavy Duty Shacman 8X4 30T Wrecker Tow Truck

Function

--Road wrecker truck(also called road wrecker,wrecker truck,towing truck,tow truck,recovery truck,towing service truck,breakdown truck) is used for moving disable,improperly parked or breakdown vehicles or car.

-- Road wrecker truck can be divided into various types as follows,

1) According to the categories, the road wrecker truck are mainly divided into: towing connected type, towing separated type, one-towing type, flat-panel one-towing type, multi-functional towing vehicles and hydraulic automatic clamping type.

2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4 Road wrecker truck;

3) According to towing capacity,there are 3tons,4tons,6tons,8tons,16tons,25tons,30tons,50tons and 60tons Road wrecker truck;

4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,camc,shacman Road wrecker truck.

Feature

--Powerful shacman truck chassis;

--2 Nos of 15tons winches with diameter 28mm;

--360 ° rotation rotator towing truck;

--Italy hydro control control valve and balance valve;

--Wuxi oil hydraulic pneumatic equipment co ltd;

--One-step modeling compartment plate by germany 3P2A punching machine;

--Adopting American wrecker design and manufacturing technology.

--Key components using the finite element stress analysis (CAE technology)

--Adopting high quality high-strength steel for important components

--Hydraulic technology adopts two filtration systems to ensure hydraulic clean.

--The key hydraulic lines seals imported from Germany.

--All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.

--Equipped with various fork lifts (including leaf spring forks).

--High and low fork combined with various fork lifts.

--Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.

--Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.

--Boom with 360 degree continuous rotation.

--Equipped with trailer towing disk, remote control is optional.

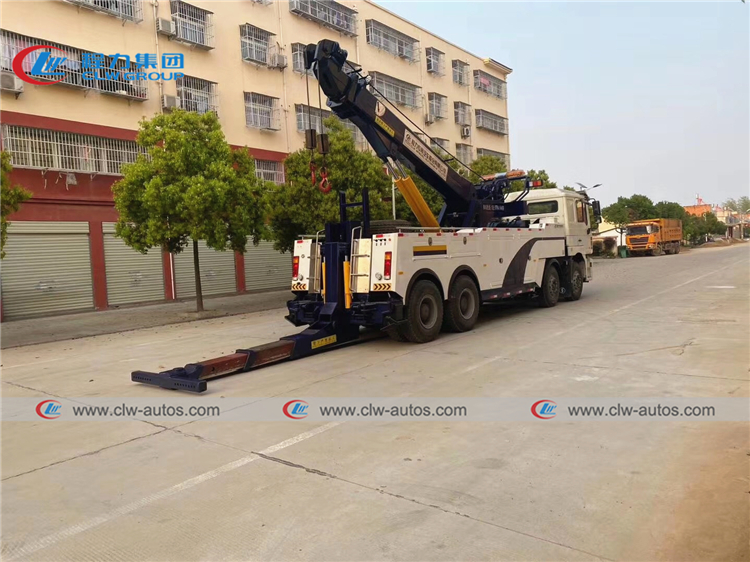

Reference picture

Remote controller

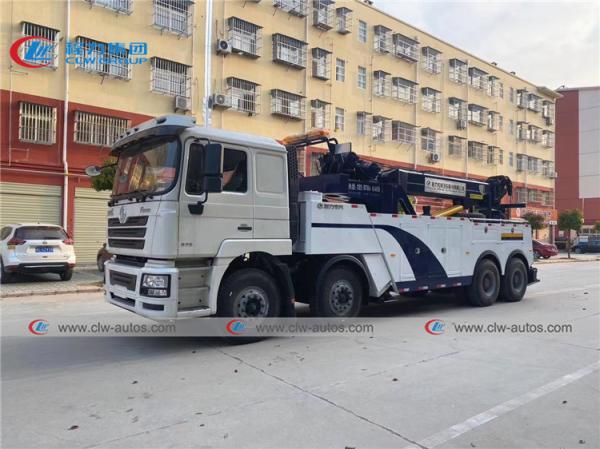

Heavy Duty Shacman 8X4 30T Wrecker Tow Truck

Drawing of towing winch

Specification

`Driving type`		`8×4,LHD or RHD`
`Curb weight`		`11200kg`
`Max.Weight(kg)`		`60000kg`
`Overall Dimension mm(LxWxH)`		`11300×2500×3750`
`Wheelbase(mm)`		`1800+4575+1400`
`Max. Speed(km/h)`		`90km/h`
`Max. Grade ability(%)`		`30`
`Engine`	`Brand`	`WEICHAI`
	`Model`	`WP10.340E22`
	`Emission Standard`	`EURO Ⅱ`
	`Rated output power`	`340HP`
	`Rated speed(r/min)`	`2200`
	`Max.Torque`	`1400N.m/1200～1600r/pm`
	`Displacement(L)`	`Displacement 9.726L`
`Transmission`	`Brand`	`FAST`
	`Model`	`10JSD180 with QH70 ,10 forward and 2reverse`
`Front axle`		`2×MAN 9.5T`
`Rear axle`		`2×13T MAN double reduction drive axle, ratio 4.769`
`Clutch`		`Eaton technology`
`Steering`		`ZF technology/`
`Frame`		`850*300(8+5)`
`Suspension`		`multi leaf spring suspension`
`Fuel tank`		`400L fuel tank`
`Wheels and tires`		`12.00R20,12+1`
`Brakes`		`Running brake:Dual circuit compressed air brake`
		`Parking brake:Air discharging with spring control`
		`Auxiliary brake:Engine exhaust brake`
		`Without ABS`
`Cabin`		`F3000 flat roof cab,one sleeping bed` `hydraulic Driver’S Seat` `Four-Point hydraulic Suspension Cab` `Air condition` `Metal Bumper`

Key word:tow truck,recovery truck,50t tow truck,30t tow truck,30t road wrecker,breakdown truck,30t wrecker,dongfeng 30tons recovery truck,dongfeng 30t road wrecker
