40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty from wholesalers

    Buy cheap 40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty from wholesalers
    • Buy cheap 40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty from wholesalers
    • Buy cheap 40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty from wholesalers
    • Buy cheap 40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty from wholesalers

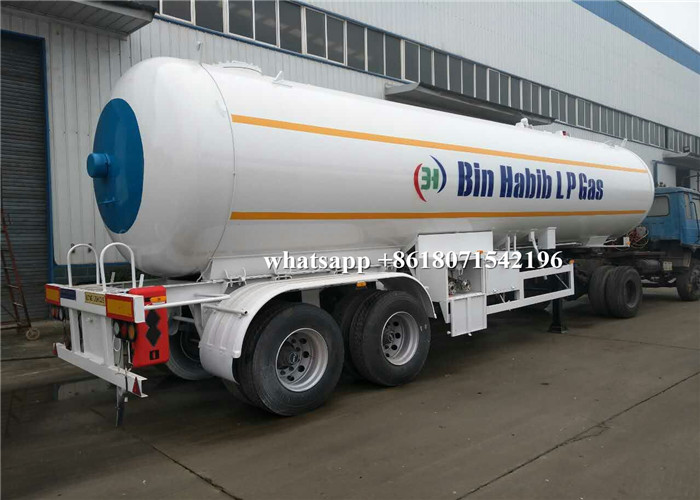

    40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW9390wc
    Certification : ASME,CCC,BV,SGS
    Price : negotiable
    Payment Terms : L/C,, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    40CBM Tank Capacity LPG Gas Tanker Truck ASME Approved 1 Year Warranty

    40000Liters LPG Gas Distributor Tank Haulage 20tons Propane Gas Tanker Truck Trailer


    Product Description


    1) Manufacturing standards of lpg bridger truck tanker trailers : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

    2) Optional accessories of lpg bridger truck tanker trailers:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose

    3) Available tanker trailer capacity of lpg bridger truck tanker trailers : 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons


    Specification


    Tanker Essential Information
    Volume of Tank (cbm)45
    Overall Dimensions(L*W*H)(mm)12254*2500*3730
    Tank Dimensions(Inner Diameter*thickness*Length)2200*12*12254
    Estimated Tare Weight (kg)14023
    Payload(kg)18480
    Total Weight(kg)32503
    Wheelbase(mm)7170+1320
    Shell of Tanker
    ProductsLiquefied Petroleum Gas (propane)
    Fluid PropertyFlammable
    Design Temperature(℃)-19℃~50℃
    Design Pressure(MPa)1.61
    Corrosion Allowance(mm)1.00
    Weld Joint Factor1
    Major Materials of Bearing PressureTanker body:Q345R,12mm,
    End plate:Q345R,12mm,double ellipse
    Main beam:16Mn
    Detection
    Heat TreatmentOverall treatment in a furnace,600℃ to 640 ℃
    Flaw Detection100% Flaw detection
    Hydraulic Test(MPa)2.21
    Manhole (As Customer’s Requirement)
    Quantity1;on top,DN450
    Safety Valve(As Customer’s Requirement)
    Quantity2
    LocationOn the top of tanker
    SizeDN50 or As Customer’s Requirement

    Level Gauge

    3*13T Fuwa

    TypeManuel rotation type
    LocationAt the rear of the end plate
    Running System
    Axles2*12T BPW brand
    Tire12R22.5 Tubeless tire ,8 with one spare tire
    Landing legJOST
    King Pin#50 or #90
    Control System
    Emergency Cut-off Valves2
    Ball Valve2
    Liquid Gauge1
    Thermometer1
    Pressure Gauge1
    Accessories
    Tool Box2
    Wheel Carrier1
    Fire Extinguisher2
    Fender6
    PaintAs Customer’s Requirement



    FAQ


    Q1: What kinds of LPG products I can order from your company?


    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.


    Q2: What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q3: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
