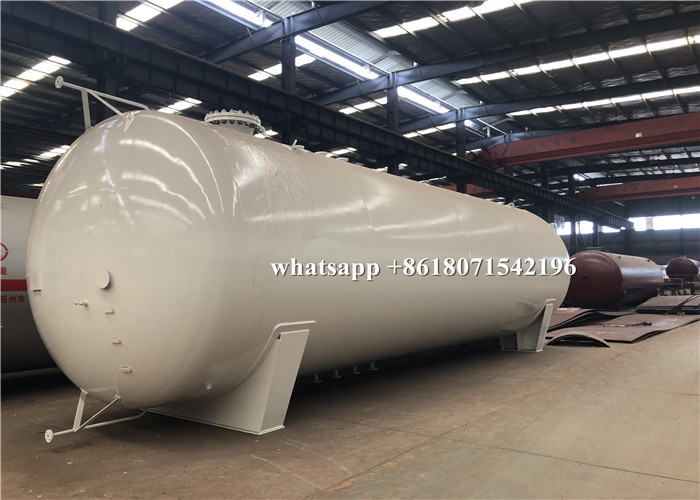

    ASME Standard 60CBM /30T LPG Gas Storage Tank DN2700mm Tank Diameter

    Ask Lasest Price
    Brand Name : CLW
    Model Number : ASME,CCC,SGS,BV
    Certification : CLW9522
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 20~30 days after receiving deposit
    • Product Details
    • Company Profile

    ASME Standard 60CBM /30T LPG Gas Storage Tank DN2700mm Tank Diameter

    ASME Standard 60cbm /30 Ton LPG/Propane/Butane Storage/Cooking Gas Tank


    Founded in 2004,ChengLi has grown into one of the largest vehicle manufacturers in China and the top 500 private enterprises within 14 years with solid technology,flawless inspection,advanced equipment,reliant quality and flexible modes of operation.Covering 300 hectare,ChengLi owns 45 workshop and 9000 staffs in which more than 800 persons are R&D specialists and more than 5000 are technical workers.


    Product Description

    1. Storage medium of filling station gas tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

    2. Available tank capacity of filling station gas tank : 5m³~200m³,2ton~100tons

    3. Manufacturing standards of filling station gas tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008


    Specification of 30mt filling station gas tank

    Parameter of 60000liters 30tons filling station gas tank
    ITEMPARAMETERITEMPARAMETER
    Volume60cbmThickness of Shell14mm
    Tank MaterialQ345RThickness of End plate16mm
    Overall Size10962*2728*3318mmTank Net Weight12750kg
    Tank Diameter2700mmLoading Capacity23940kg
    Design Pressure1.77MpaGas Density420kg/M3
    Hydraulic Test Pressure2.22MpaCorrosion Allowance1mm
    Design Temperature-20ºC~60ºCHeat TreatmentBulk
    Vapor OutletDN50Gas OutletDN50
    Life time15 years
    Accessories
    ModelItemQtyJunction surface
    J41N-2.5-50Stop Valve DN506RF
    J41N-2.5-25Stop Valve DN252RF
    J41N-2.5-100Stop Valve DN1001RF
    J24W-320-DN6J24W Needle Valve M20*1.51
    HG21584-95Magnetic plate level Gauge UZFAL-2.5RF-3040-0.51RF
    A42F-25-100Safety Valve DN1001RF
    Y-100TPressure Gauge M20*1.5 1.5degree 0~4Mpa1
    WTQ-280Thermometer M33*2 2.5 degree1-40ºC~60ºC


    Our Service

    • Quick feedback to solve your questions

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Reasonable price and good quality

    • Quick delivery and shipment
