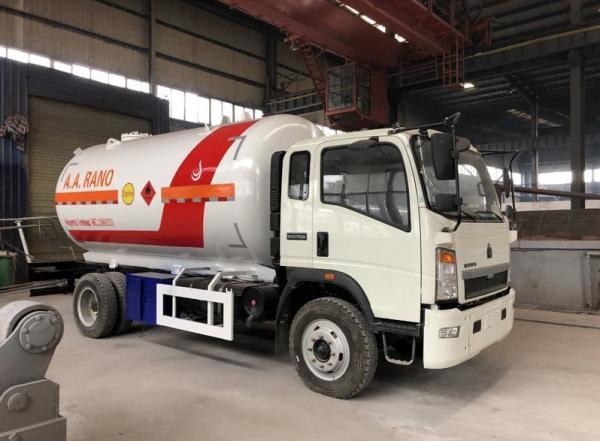

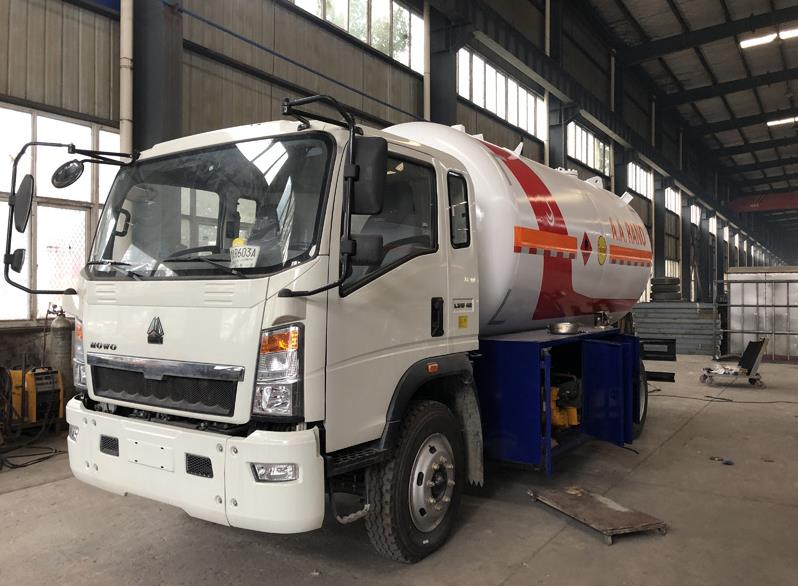

    HOWO 5 Ton LPG Gas Tanker Truck Mobile Cylinder Filling Tanker Dispenser

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5256GS
    Certification : ASME,CCC,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    HOWO 5 Ton LPG Gas Tanker Truck Mobile Cylinder Filling Tanker Dispenser

    China Hot Sale HOWO 5mt/5t/5tons Liquid Propane Gas Tank Truck LPG Mobile Delivery Cylinder Filling Tanker Dispenser LPG Bobtail Truck


    Product Description

    1. Truck Brands: Dongfeng, Sinotruk HOWO, JAC, FAW, Foton, Isuzu, etc..

    2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.

    3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.

    4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.


    Product Specification

    Upper Tanker Specifications
    ItemUnitParameter
    Thickness of Shellmm10.0
    Thickness of Endplatemm10.0
    Corrosion Allowancemm1.0
    Fact cubic meterscbm10cbm(10,000L)
    Loading capacitykgApprox.4750 kg
    Working temperatureºC-40/+55 oC
    Tank materialmmCarbon Steel Q345R(Pressure Vessel Steel)
    ManholemmDN450(18 inch)
    Safety ValvemmDN50(2 inch)
    Liquid LinemmDN50(2 inch)
    Gas LinemmDN50(2 inch)
    Chassis Specifications
    ConditionNew condition/Left hand drive/4x2


    Main details
    Brand and ModelSINOTRUK HOWO
    Wheelbase(mm)3950/4200/4400/4500/4700/5000/5200
    Front/Rear overhang(mm)1205/2310
    Approach/Departure angle(°)18/12
    Max. driving speed(km/h)90
    ClutchReinforced diaphragm clutch
    BrakesService brake: dual circuit compressed air brake.
    Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust valve brake
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity6pcs with one spare tire
    Specifications8.25R20/9.00-20/9.00R20/10.00-20/10.00R20
    TransmissionManual type, 6 Forwards and 1 reverse
    CabinIt can accommodate three people, With Air conditioner
    EngineBrand and ModelOptional
    Fuel typeDiesel
    Emission standardOptional

    Reference Photos


    Two Types of Dispenser for Optional

    Manufacturing Process

    8x4 LPG Tank Dispenser Truck With Filling Flow Meter , Lpg Bobtail Dispenser Truck

    8x4 LPG Tank Dispenser Truck With Filling Flow Meter , Lpg Bobtail Dispenser Truck

    JAC 8*4 34.5cbm LPG Tank Dispenser Truck 17 Tons 18 Ton With Gas Filling Machine


    Sales Service

    1) Pre-sales Service: Communicate with customers, analyze their needs.
    2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of LPG products I can order from your company?

    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?

    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.


    Q4: What about warranty?

    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?

    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
