Telescopic Type Aerial Lift Platform Truck / Truck Mounted Boom Lift Vehicle

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW5070BPG
Certification :	CCC, ISO, SGS, BV
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 Units/Month
Delivery Time :	30-35 days

Add to Cart

Product Details
Company Profile

Telescopic Type Aerial Lift Platform Truck / Truck Mounted Boom Lift Vehicle

Product Description

18meter High Altitude Working Vehicle 22meter Telescopic Type 18meter 20meter Aerial Platform Truck

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

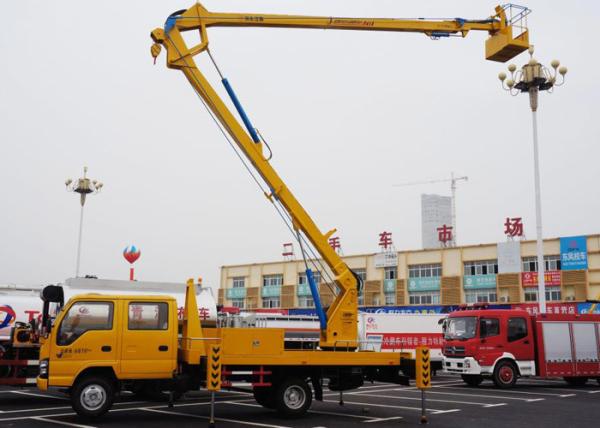

Product Show

Product Details

Chassis Specifications
Chassis Brand		Dongfeng 153
Drive model		4*2
Cabin		Single, Left Hand Driving
Engine	Model	Cummins B19033, 6 cylinders , 4 stroke
	Power	140KW/190HP
	Emission standard	EUROⅢ
	Displacement	5900(ml)
	Fuel type	Diesel
Gearbox		6 forwards &1 reverse gear, manual operation
Brake System		Pneumatic(Air break)
Steering Gear		Power Assistant
Wheel Base		4700(mm)
Front/Rear Axle Loading		5000/10000(Kg)
Approach/Departure Angle		33/18(°)
Tire		10.00R20, 6 tires+1, steel wire
Max Driving Speed		90(km/h)

Superstructure main technical Parameters
Max operation height		20m(= Working bucket’s Max height above ground+ Industry unified standard human height 1.7m)
Boom	Working booms type	Three folded arms
Boom	Boom’s max lift angle	65°
Hydraulic system	Hydraulic pump	Gear pump
	Hydraulic system pressure	≤16Mpa
	Hydraulic tank volume	80L
Working bucket	Max height above ground	18.3(m)
	Max operation range	8.7(m)
	Operation range at min operation height	3.07(m)
	Operation range at max operation height	11.5(m)
	Working bucket slewing angle	360°
	Rated load	200kg
outrigger	Outrigger Type	H type
	Numbers of outrigger	4
	Horizontal span	2930(mm)
	Longitudinal span	4500(mm)
Hook	Max lift weight	800(kg)
Hook	Max lift height	8.5(m)
Operation	Control method	Manual control
	Outrigger control	Horizontal / vertical individually adjustable
	Operating position	Working bucket, on the truck or under the truck

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
